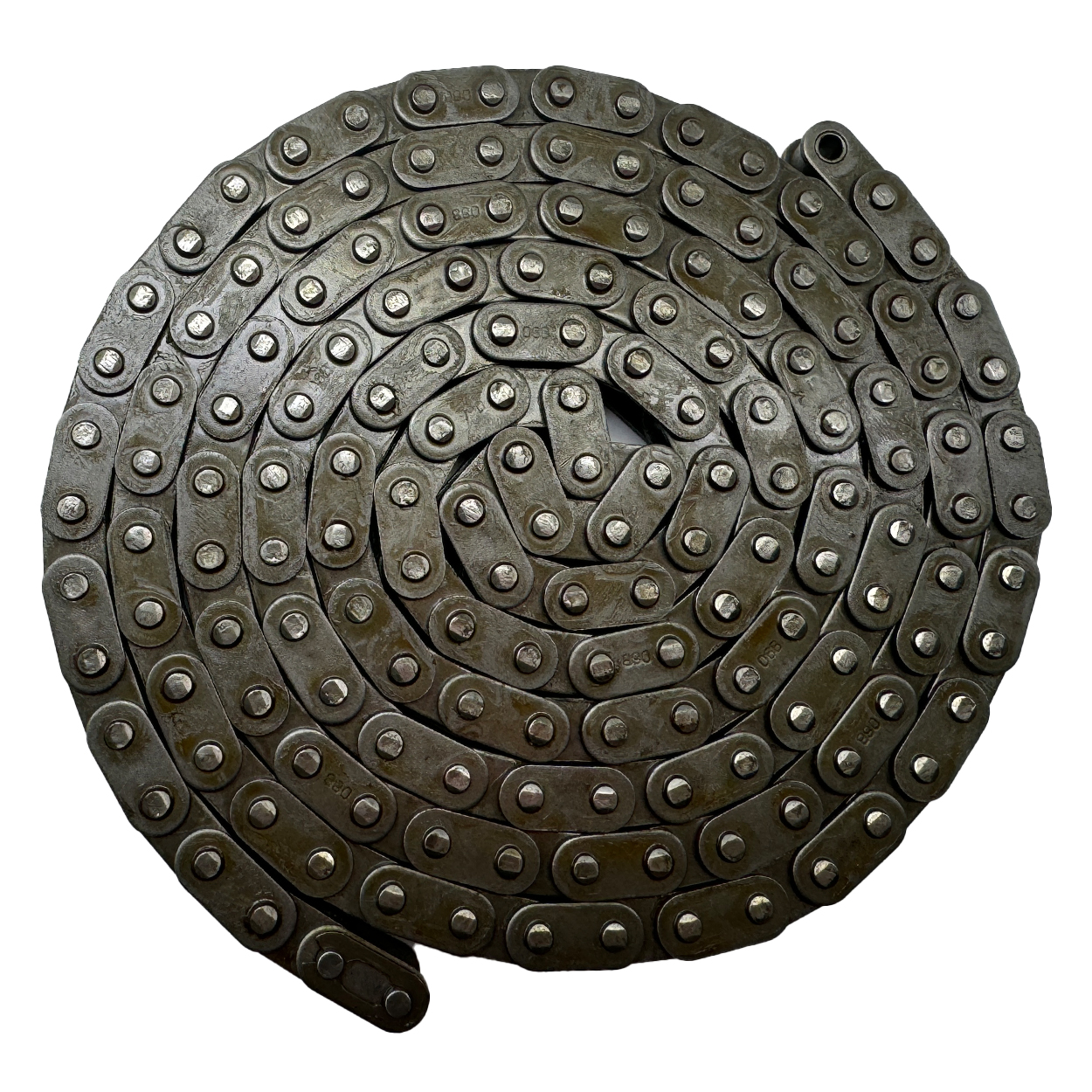

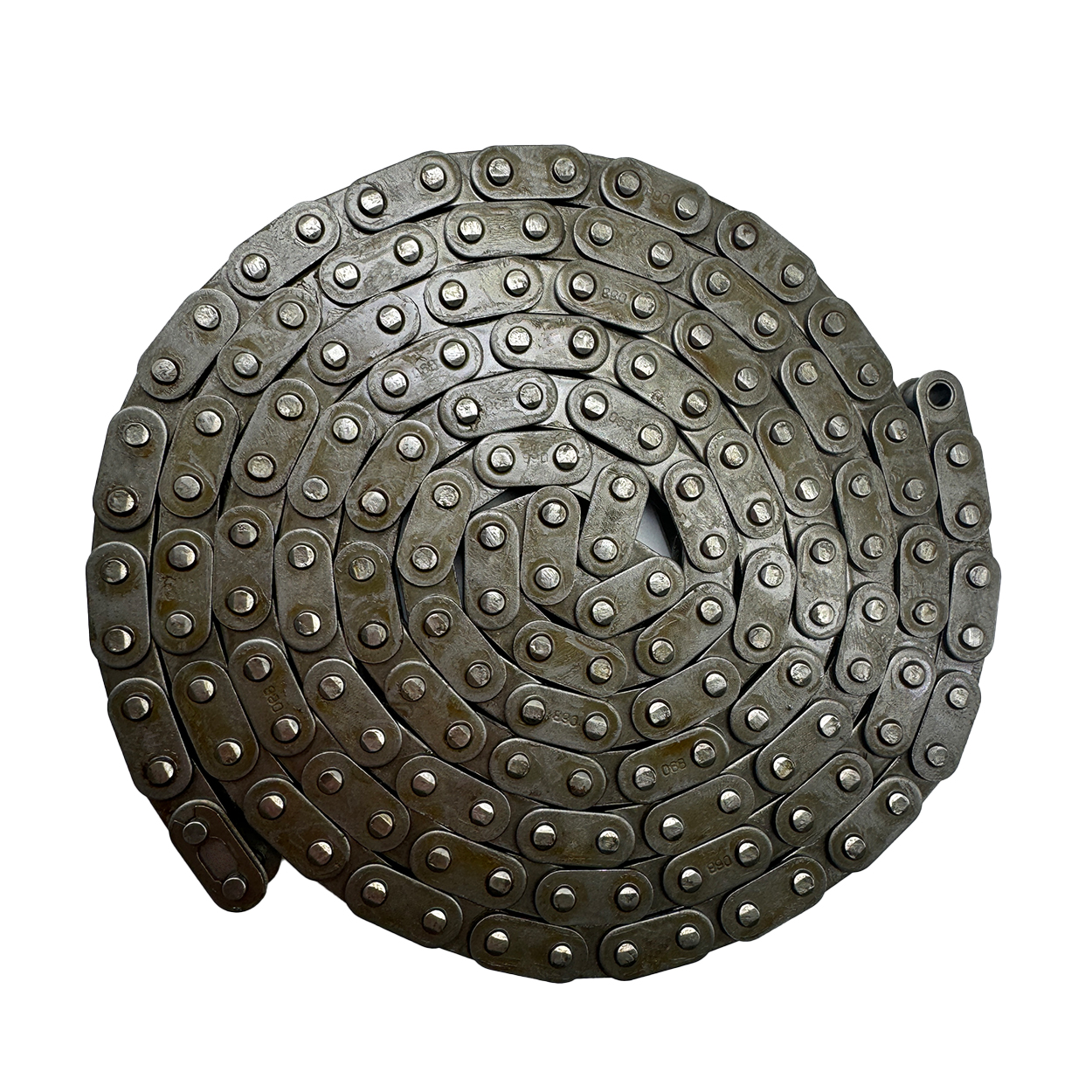

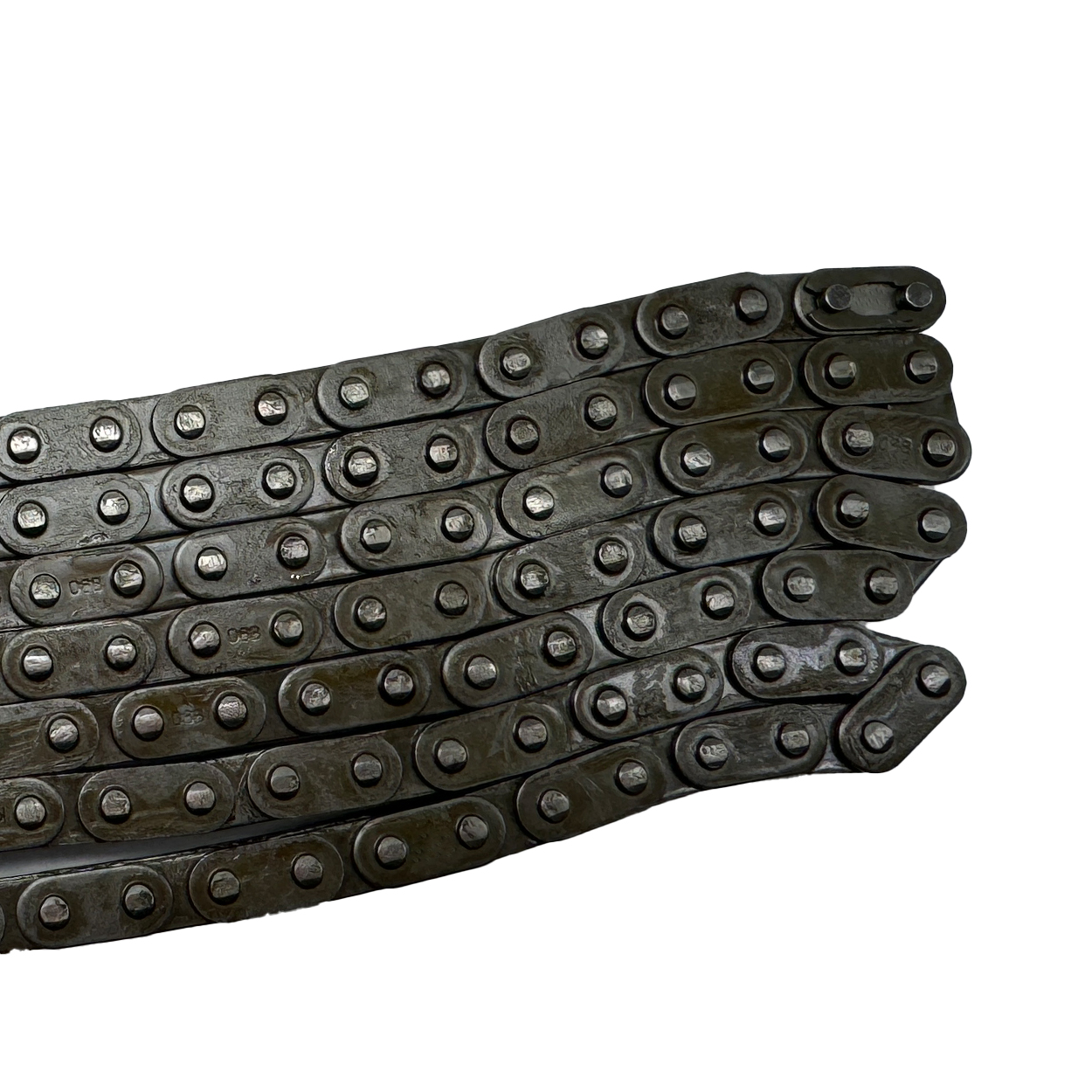

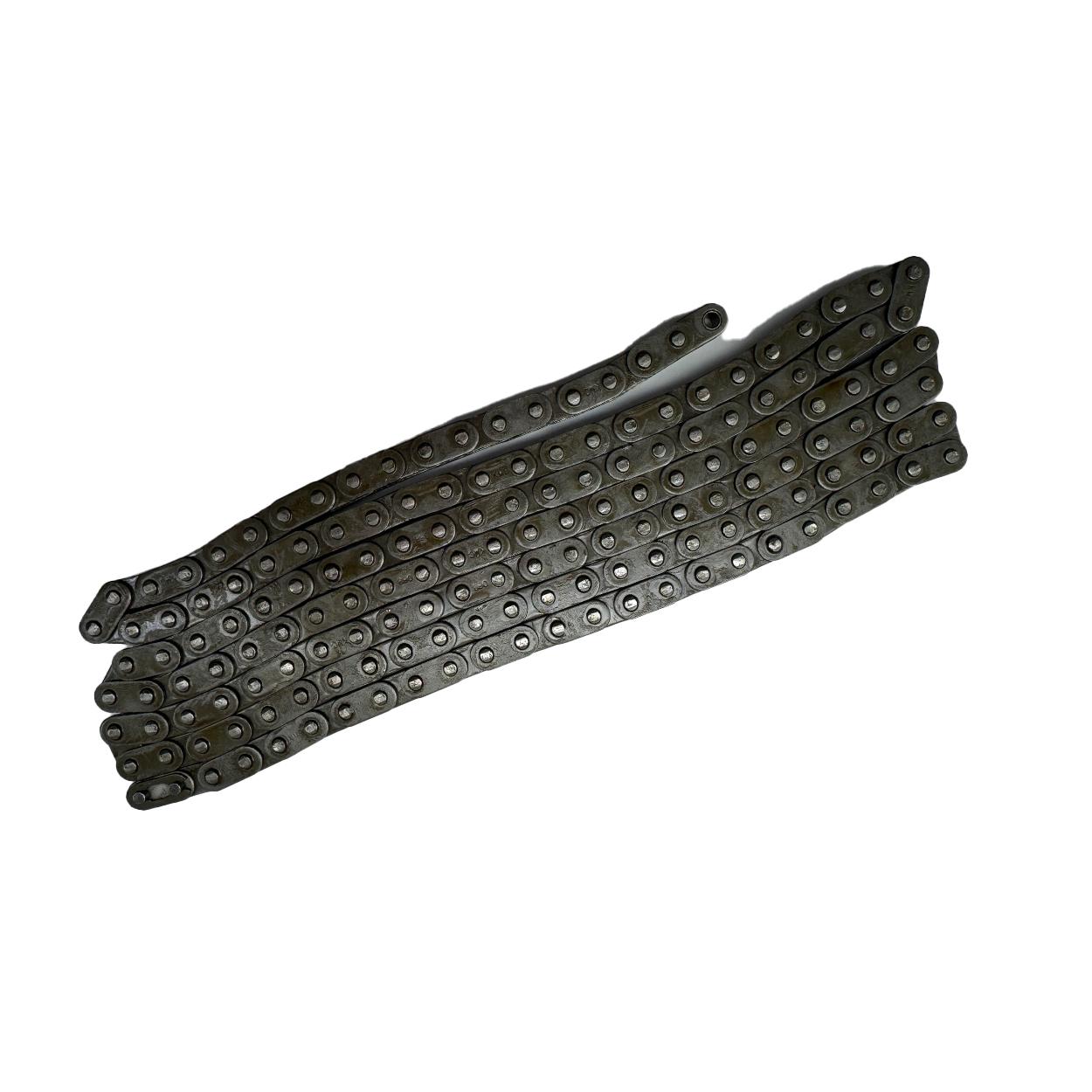

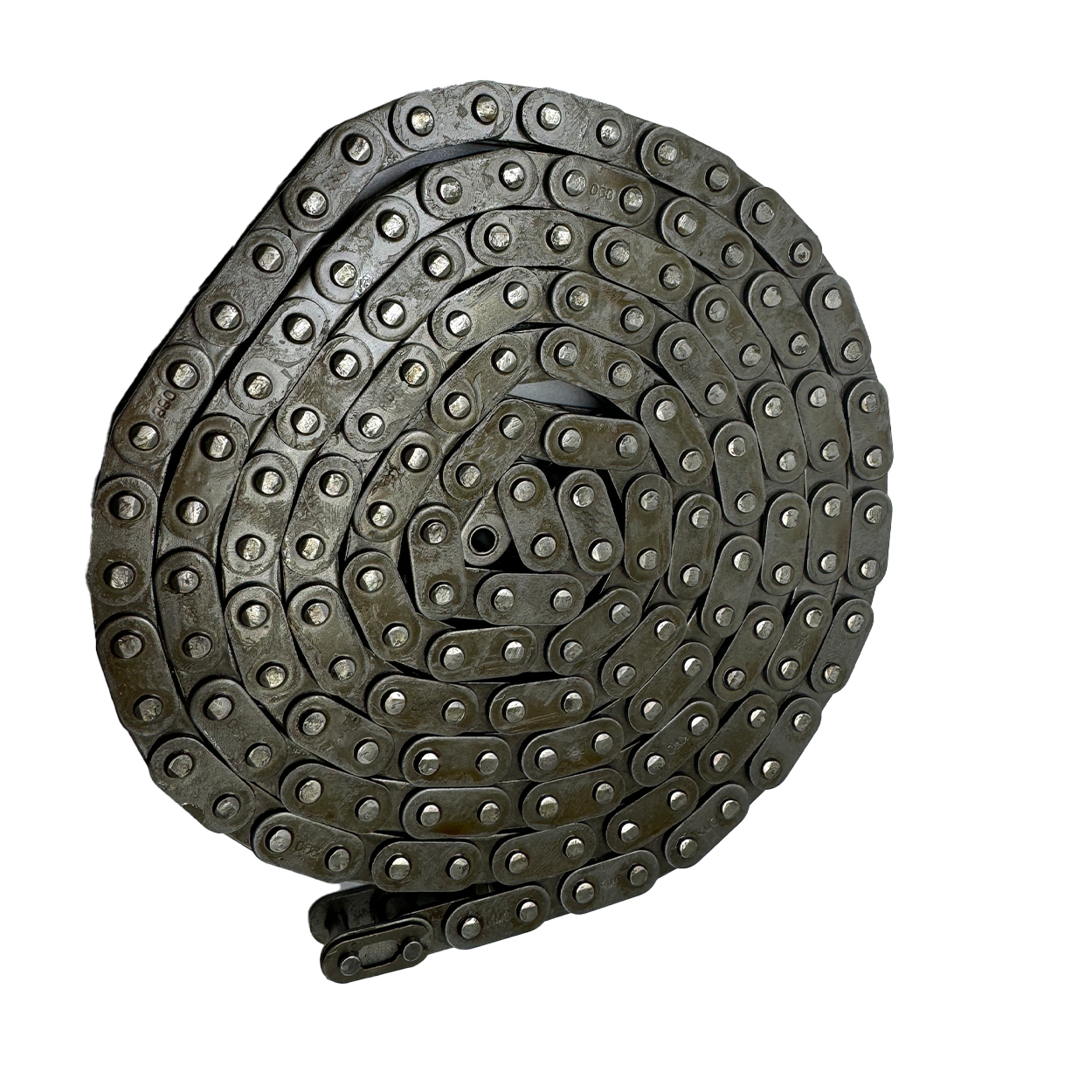

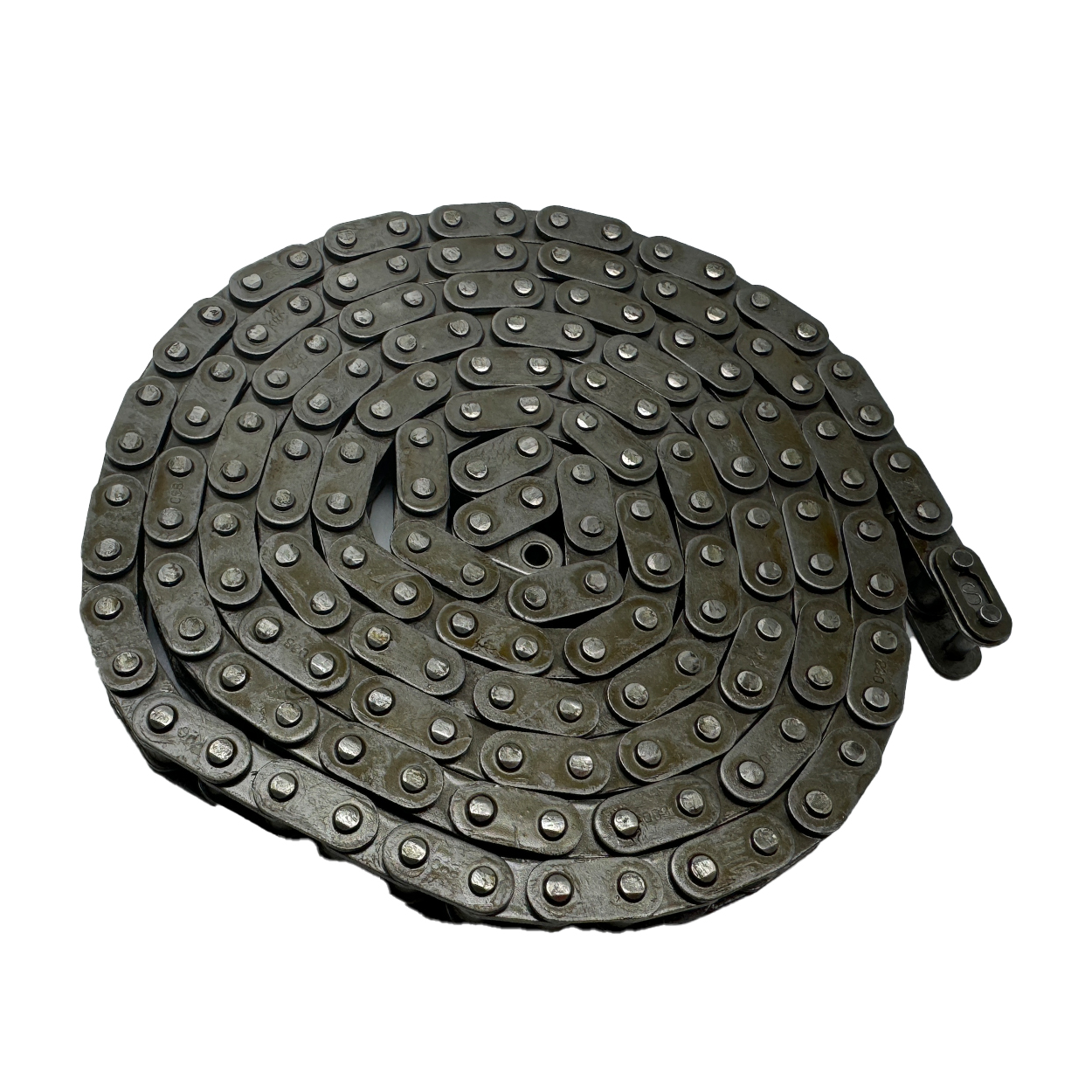

06B Roller Chains
06B Roller Chains Components
Inner and Outer Links:Roller chains usually have 2 sorts of links: internal links (roller links) and external web links (pin web links).
Rollers:Short, cylindrical rollers are a key component of the internal web links, promoting smooth involvement with sprockets and lowering rubbing.
Bushings (Sleeves):Bushings or sleeves are used to sustain the rollers within the internal web links.
Pins:Pins hold the outer links together and pass through the bushings of the internal web links.
Sprocket Engagement:The rollers of the chain engage with the teeth of a sprocket to send rotational movement.
06B Roller Chains Product data information
| Model | unit | 06B |
| Pitch-(P) | mm | 9.525 |
| Roller Link Width（Min.)-(W min) | mm | 5.72 |
| Roller Outer Diameter(Max.)-(d1 max) | mm | 6.35 |
| Pin Outer Diameter-(d2 max) | mm | 3.28 |
| pin Length-(L max) | mm | 13.5 |
| pin Length-(lc max) | mm | 16.8 |
| Link Plate Height-(H max) | mm | 8.26 |
| Link Plate Thickness-(T) | mm | 1.4/1.1 |
| Minimum Tensile Strength-(min) | kgf | 910 |
| Average Tensile Strength | kgf | 1100 |
Premium Roller Chains for Reliable Power Transmission
For durable and dependable mechanical power transmission, our premium Roller Chains stands in a class of its very own. Created for demanding industrial applications, each chain is developed to not just satisfy however substantially surpass standard requirements for exhaustion toughness and put on resistance. This makes sure reputable, long-lasting efficiency whether used in complex equipment or high-performance conveyor systems. When your operation needs a chain that will not fail under stress, our Roller Chains is the clear-cut choice for professionals who require the very best.
High-Precision Finishing Enhances Roller Chains Performance
What establishes our Roller Chains apart is the meticulous focus to information in its ending up. Every chain is extremely pre-tensioned to ensure optimal involvement and minimize first extending, offering stability from the very initial use. In addition, each chain is treated with eliDUR+, a state-of-the-art initial lubricating substance that supplies remarkable running characteristics and advanced deterioration defense. This special additive ensures our Roller Chain runs efficiently even in difficult atmospheres, reducing friction and expanding its service life.
Effective Power Transfer Through Advanced Roller Chains Design
The core of our Roller Chain’s effectiveness hinges on its basic design: a collection of cylindrical rollers that perfectly involve with gear teeth. This moving action dramatically lowers rubbing contrasted to moving designs, resulting in highly effective power transfer with very little power loss. Each part– from the pins and bushings to the rollers themselves– is heat-treated and made to accurate tolerances to stand up to shock, compression, and consistent usage, delivering the strength and dependability your machinery relies on.
Flexible Roller Chains Configurations for Industrial Needs
Type of demand. Whether you call for a single-strand chain for standard drives, a multiple-strand chain to improve power capability without raising pitch, or a double-pitch chain for slow-speed drives over long distances, we have the excellent service. Born from details consumer ask for raised tons capability and compact styles, our Roller Chains family members is constructed to fix real-world design challenges, giving an effective link in your procedure.
Where to Use The 06B Roller Chains
- Big Tools
- Small Bikes
- Smart Tools
Why Choose The 06B Roller Chains
●Easy To Use
●Long-Lasting
●Smooth Ride
●Great Look
Chart
Frequently Asked Question
A premium roller chain is a top-quality, industrial-strength chain designed for reputable power transmission. It goes beyond common requirements in tiredness resistance, use life, and efficiency.
Roller chains are commonly used in production, automotive, mining, food handling, logistics, and durable equipment as a result of their longevity and accurate power transfer.
eliDUR+ is a high-performance preliminary lubricant that decreases rubbing, enhances rust resistance, and expands chain life span even under severe operating conditions.
Pre-tensioning minimizes first elongation and makes certain limited meshing with gears, improving functional security and lowering early-stage chain wear.
We provide single-strand, double-strand, multi-strand, and double-pitch roller chains, customized to match different torque, lots, and range demands.
Yes. Each part– pins, bushings, and rollers– is heat-treated to stand up to shock, compression, and continual mechanical stress and anxiety.
