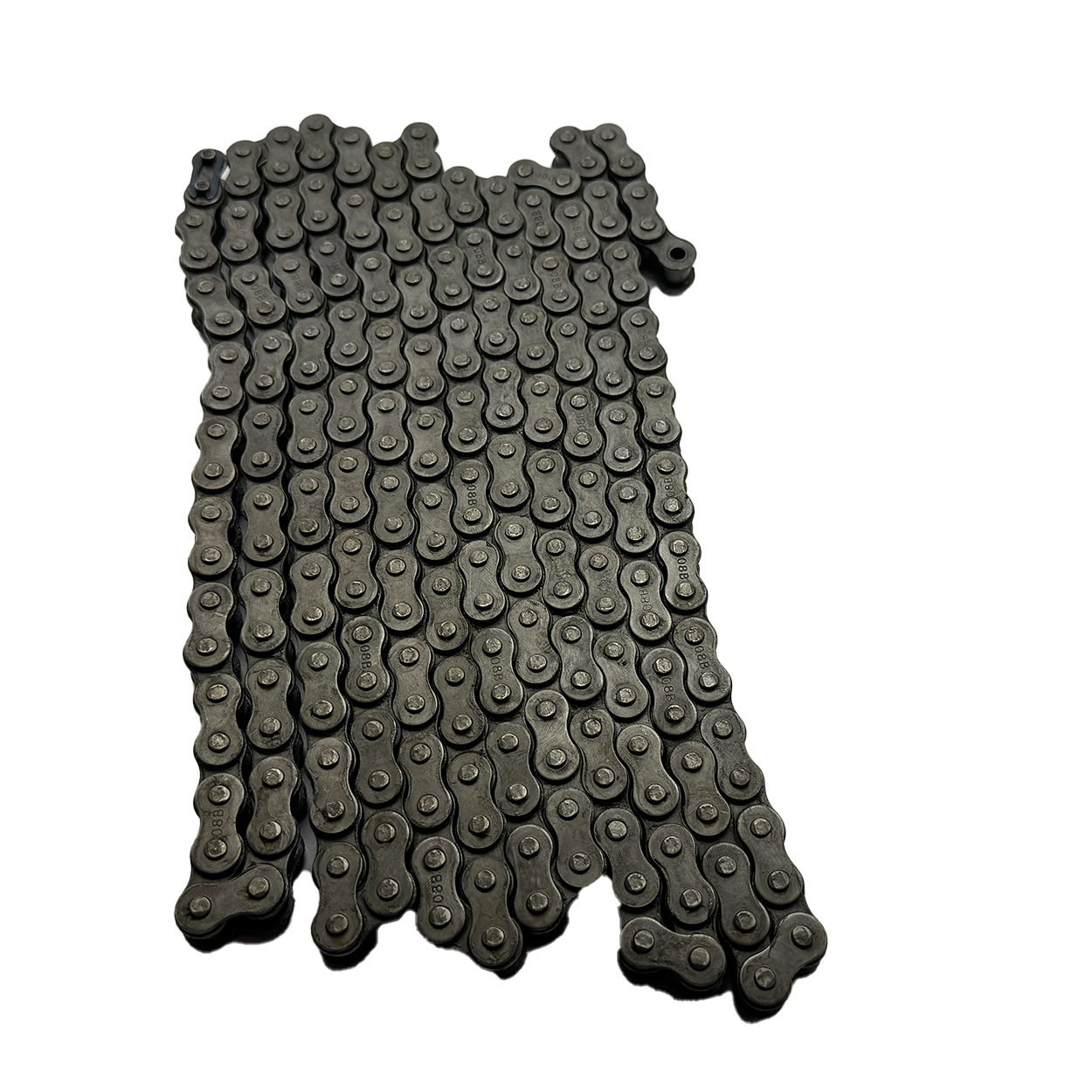

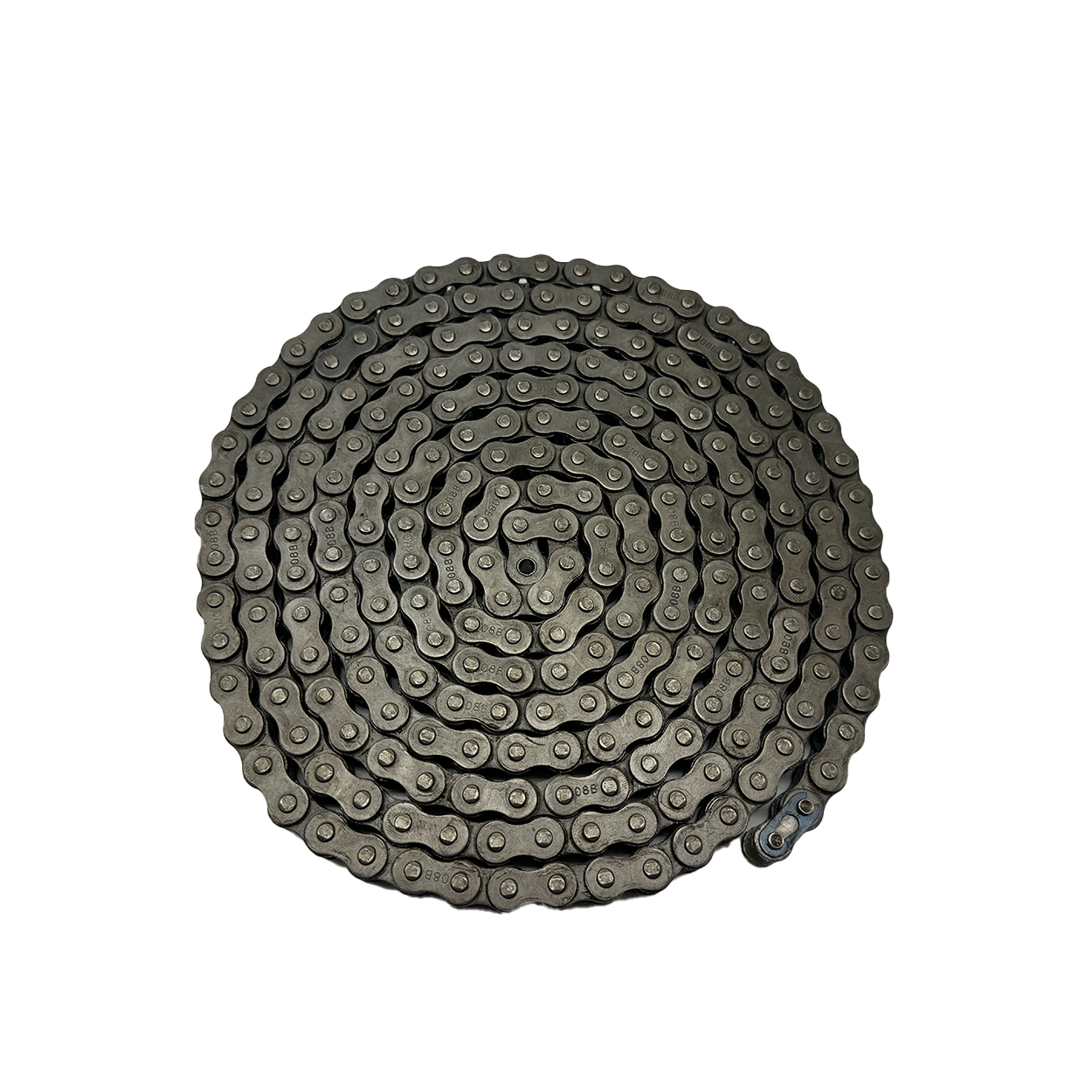

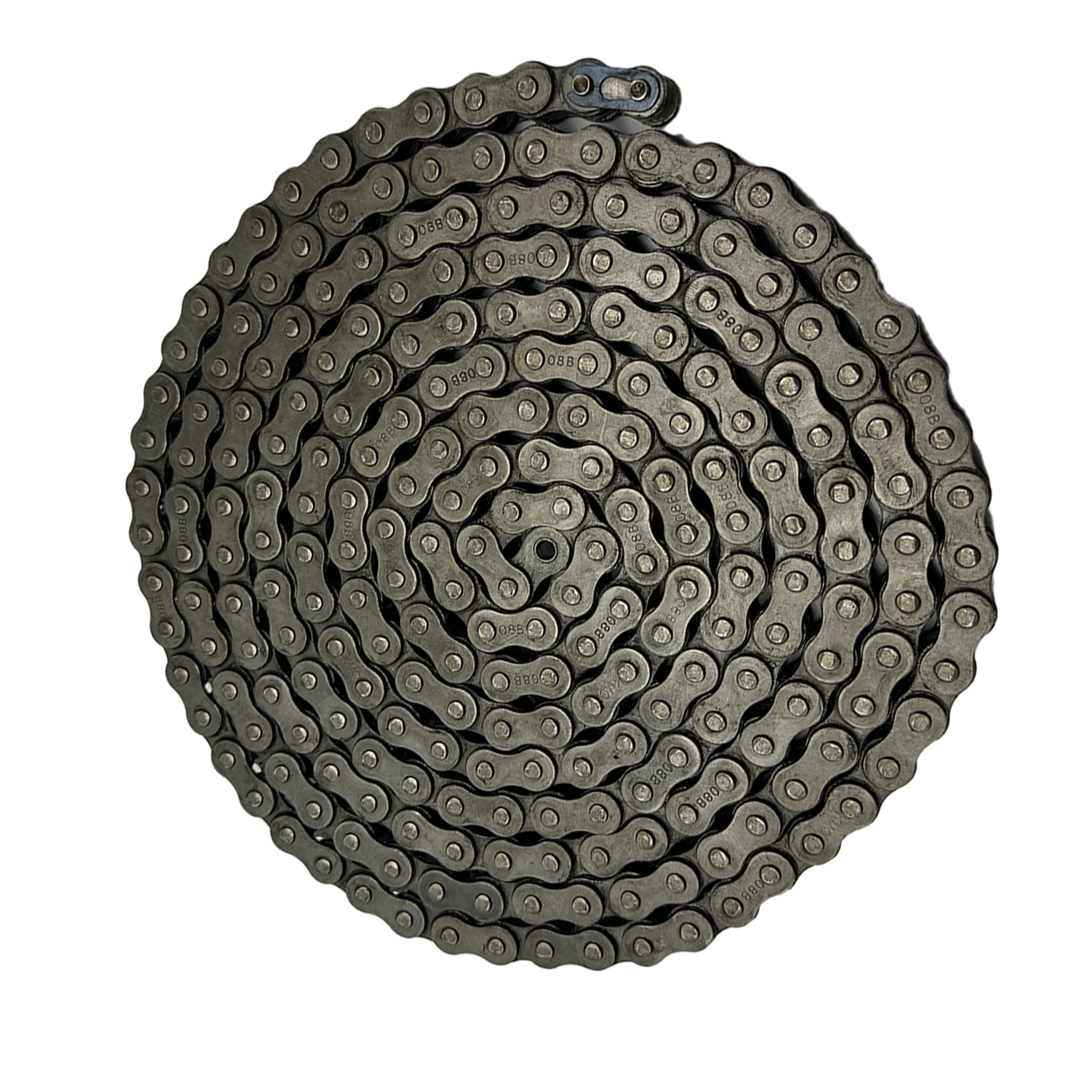

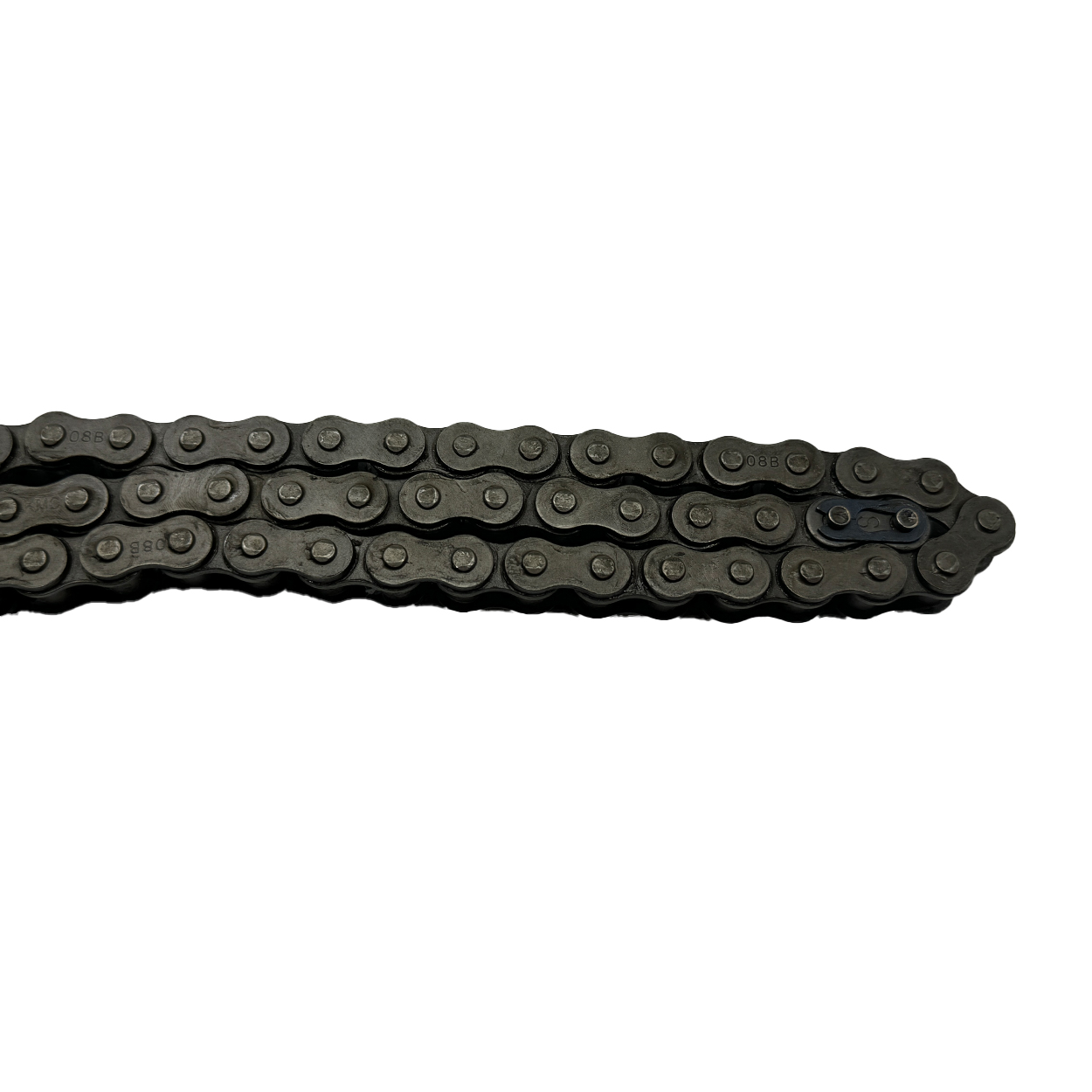

08B Roller Chains
08B Roller Chains Components

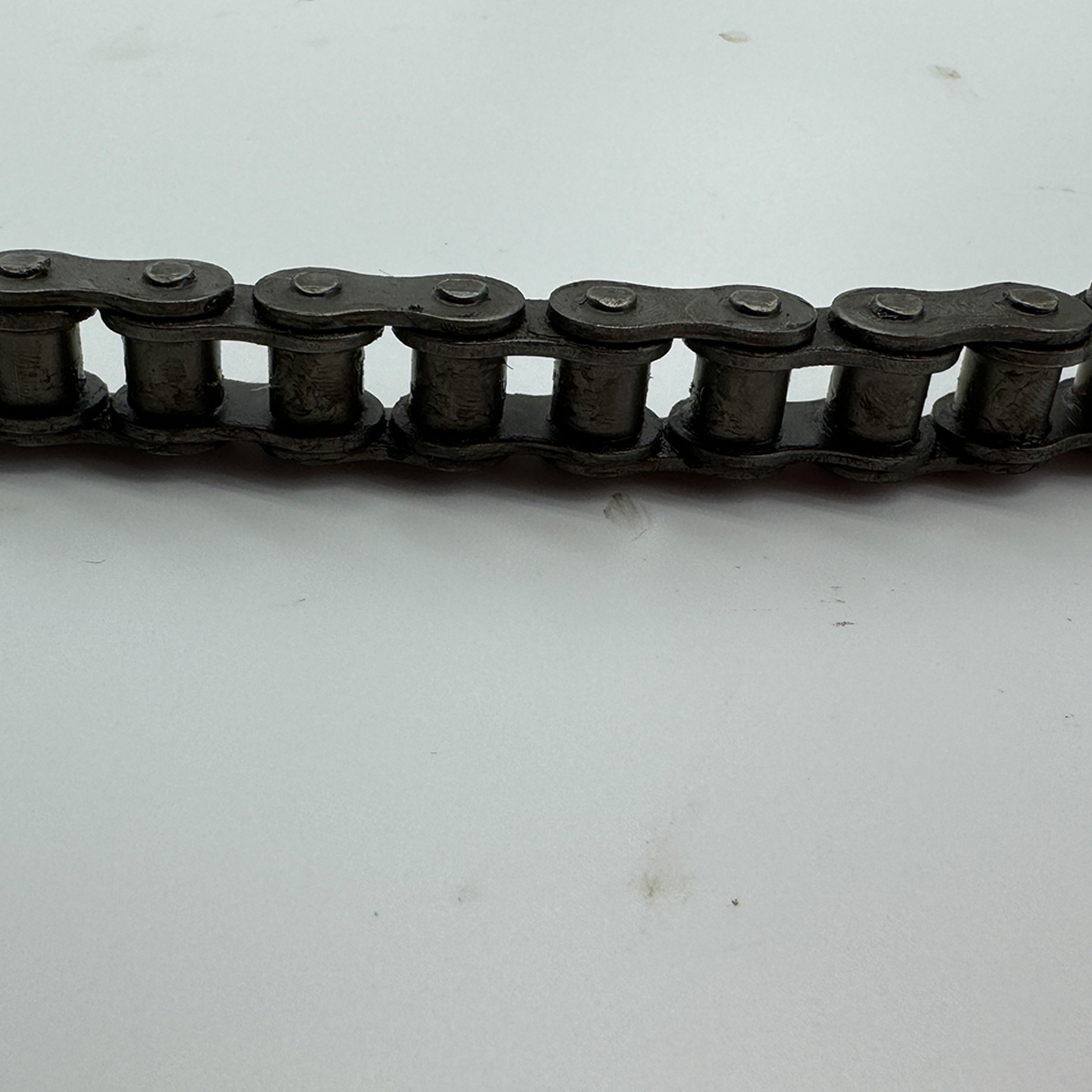

Inner and Outer Links:Roller chains usually have 2 sorts of links: internal links (roller links) and external web links (pin web links).
Rollers:Short, cylindrical rollers are a key component of the internal web links, promoting smooth involvement with sprockets and lowering rubbing.
Bushings (Sleeves):Bushings or sleeves are used to sustain the rollers within the internal web links.
Pins:Pins hold the outer links together and pass through the bushings of the internal web links.
Sprocket Engagement:The rollers of the chain engage with the teeth of a sprocket to send rotational movement.
08B Roller Chains Product data information
| Model | unit | 08B |
| Pitch-(P) | mm | 12.7 |
| Roller Link Width（Min.)-(W min) | mm | 7.75 |
| Roller Outer Diameter(Max.)-(d1 max) | mm | 8.51 |
| Pin Outer Diameter-(d2 max) | mm | 4.45 |
| pin Length-(L max) | mm | 17 |
| pin Length-(lc max) | mm | 20.7 |
| Link Plate Height-(H max) | mm | 11.81 |
| Link Plate Thickness-(T) | mm | 1.5 |
| Minimum Tensile Strength-(min) | kgf | 1820 |
| Average Tensile Strength | kgf | 1950 |
Why Roller Chains Outperform Other Transmission Systems
The genius of the Roller Chain is its effortless and efficient method of power transmission. As the chain engages with a sprocket, its rollers spin freely, minimizing friction and wear while ensuring a positive, slip-free connection. This makes it vastly superior to belt drives in applications with heavy loads. Our Roller Chains are built with superior heat treatments and 100% lubrication, guaranteeing the outstanding strength and longevity needed to handle immense stress and deliver consistent performance day in and day out.
Tailored Roller Chains for Driving and Conveying Applications
Our collection of Roller Chains is as diverse as its uses. We offer drive chains with smaller rollers, perfect for engines and drivetrains where link plates provide guidance. For conveying applications, we provide chains with large-diameter carrier rollers that lift the sidebars above the tracks, reducing friction and chain pull. This makes them ideal for moving materials and pallets smoothly and efficiently. Whatever your task, there is a Roller Chain specifically designed to accomplish it with maximum efficiency.
Multiple Roller Chain Configurations to Meet Your Needs
Choose the power and configuration that fits your project. Our Roller Chains are available in single-strand designs for a wide range of drive loads, as well as multiple-strand versions (duplex and triplex) that multiply power capacity for more demanding tasks. For applications with slower speeds or long center distances, our double-pitch Roller Chain provides an economical and effective solution. Invest in a legacy of industrial progress and ensure your machinery is powered by the right tool for the job.
Where to Use The 08B Roller Chains
- Big Tools
- Small Bikes
- Smart Tools
Why Choose The 08B Roller Chains
●Easy To Use
●Long-Lasting
●Smooth Ride
●Great Look
Chart
Frequently Asked Question
Roller chains offer a favorable, slip-free involvement with sprockets, decreasing energy loss and making the most of torque transfer– especially under heavy loads where belts may slip or extend.
chain sturdiness?
Heat-treated elements stand up to shock and fatigue, while complete lubrication decreases wear and corrosion, making sure long-lasting, regular performance also in severe environments.
Drive roller chains normally include smaller rollers and are maximized for power transmission. Conveyor chains use larger-diameter rollers that decrease rubbing and are excellent for relocating products over tracks.
Definitely. Multiple-strand roller chains (duplex or triplex) are designed to take care of high-load applications by distributing pressure across numerous hairs, enhancing strength and lots ability.
Double-pitch roller chains are cost-effective and ideal for low-speed or long-distance applications. Their extended pitch lowers weight and wear, making them excellent for economical sharing.
Yes. Single-strand roller chains with specific roller spacing are usually utilized in engines and mechanical drivetrains for reputable power transfer and smooth procedure.
