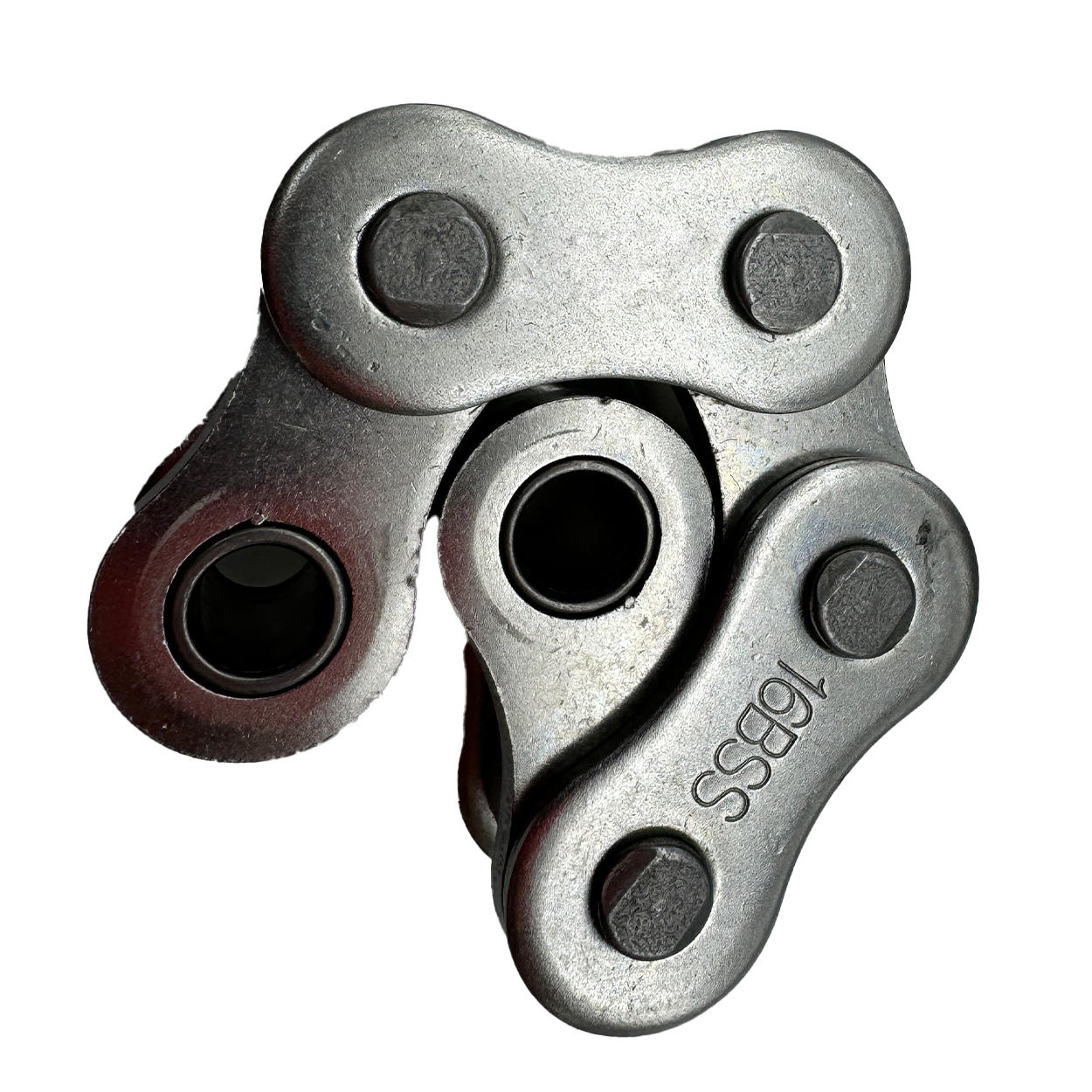

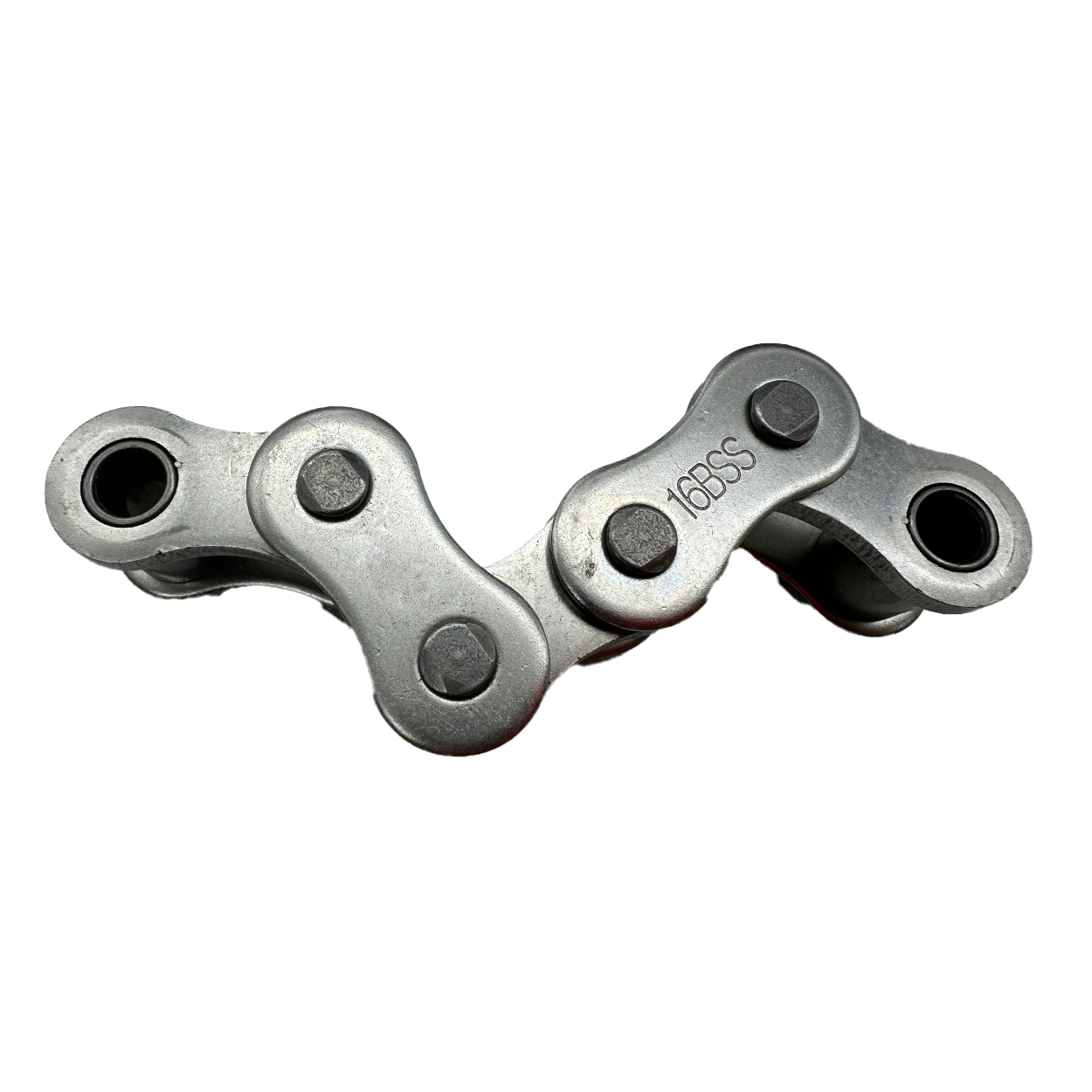

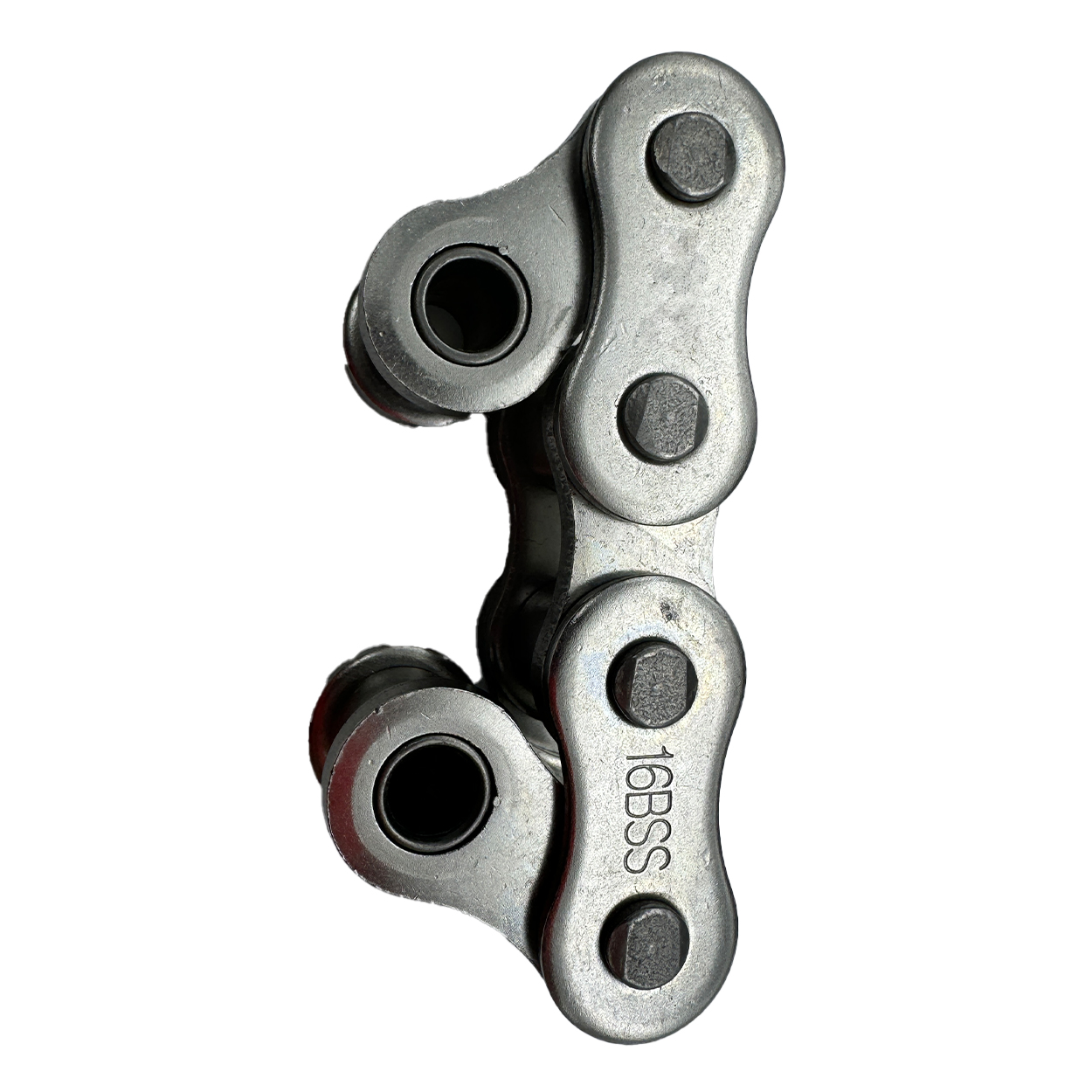

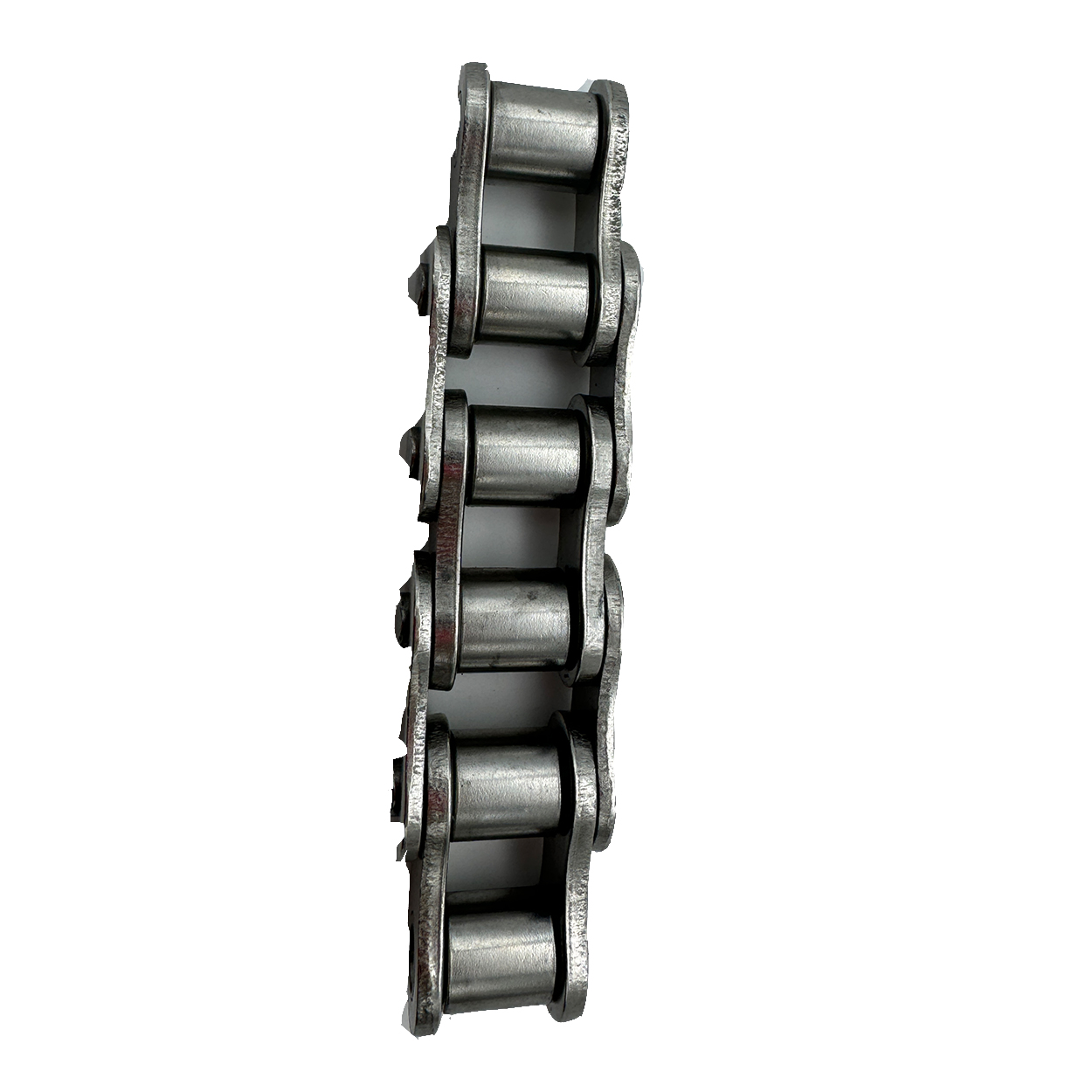

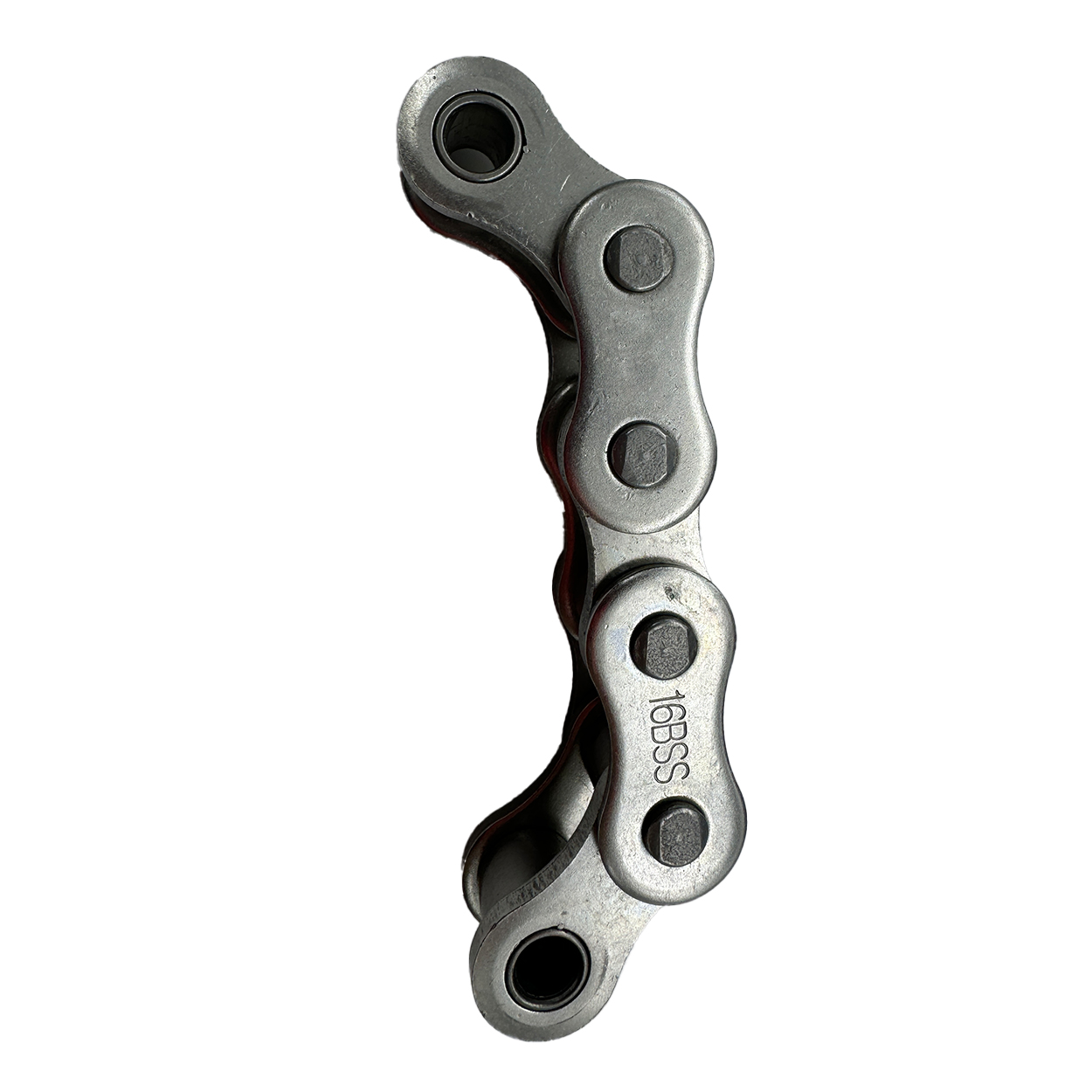

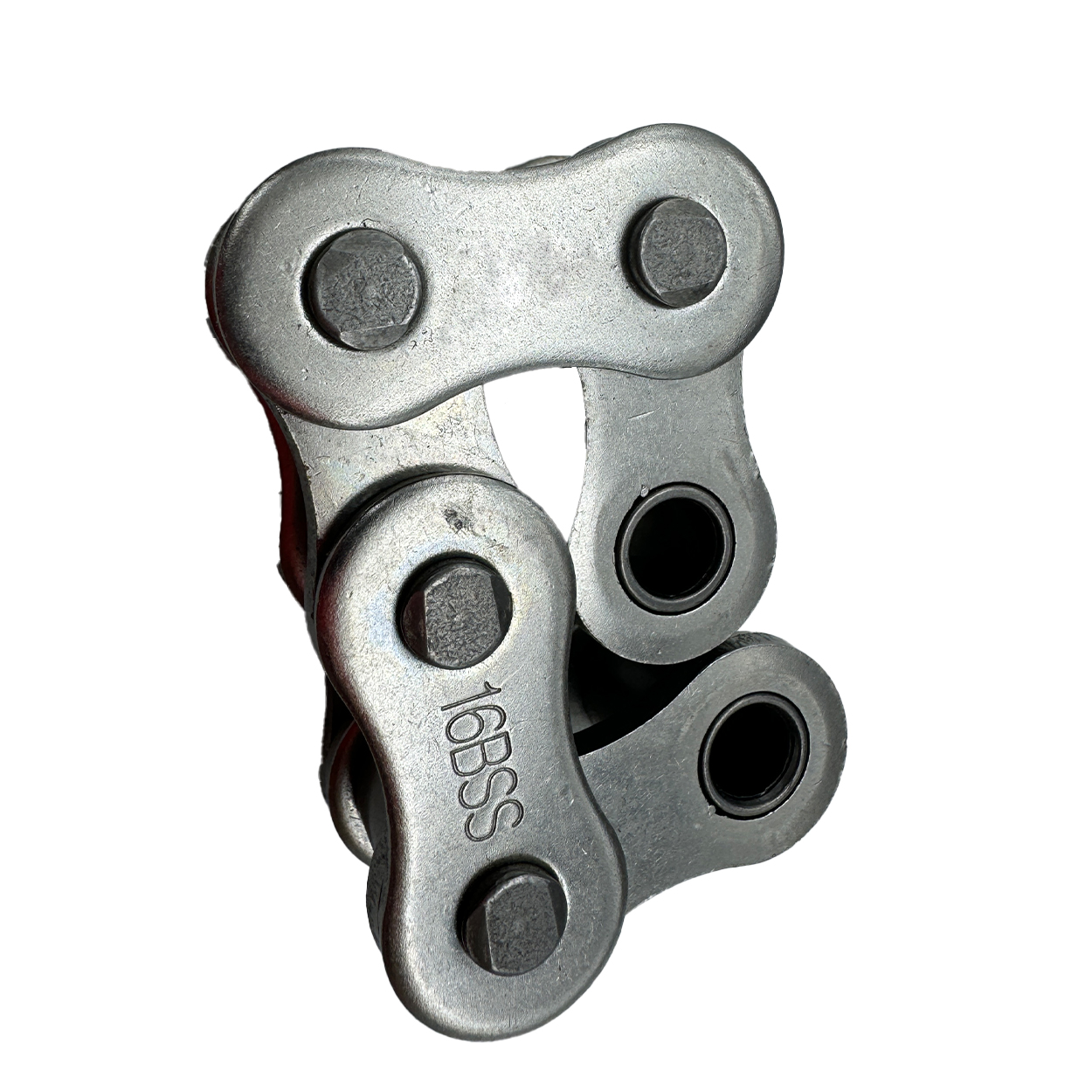

16BSS Stainless Steel Roller Chains
16B Stainless Steel Roller Chains Components
Inner and Outer Links:Roller chains usually have 2 sorts of links: internal links (roller links) and external web links (pin web links).
Rollers:Short, cylindrical rollers are a key component of the internal web links, promoting smooth involvement with sprockets and lowering rubbing.
Bushings (Sleeves):Bushings or sleeves are used to sustain the rollers within the internal web links.
Pins:Pins hold the outer links together and pass through the bushings of the internal web links.
Sprocket Engagement:The rollers of the chain engage with the teeth of a sprocket to send rotational movement.
12B Stainless Steel Roller Chains Product data information
| Model | unit | 12B |
| Pitch-(P) | mm | 19.05 |
| Roller Link Width（Min.)-(W min) | mm | 11.68 |
| Roller Outer Diameter(Max.)-(d1 max) | mm | 12.07 |
| Pin Outer Diameter-(d2 max) | mm | 5.72 |
| pin Length-(L max) | mm | 22.7 |
| pin Length-(lc max) | mm | 27.3 |
| Link Plate Height-(H max) | mm | 16.13 |
| Link Plate Thickness-(T) | mm | 1.8 |
| Minimum Tensile Strength-(min) | kgf | 2950 |
| Average Tensile Strength | kgf | 3350 |
Stainless Steel Roller Chains for Extreme Environments
When your application demands uncompromising performance in corrosive, high-temperature, or sterile environments, our Stainless Steel Roller Chains are the definitive service. Engineered to withstand rust, chemicals, and extreme temperature levels, these chains make certain reputable operation where standard chains would fall short. They are the excellent choice for industries such as food handling, drugs, and marine applications, supplying the sanitation and longevity needed to preserve both functional honesty and conformity with stringent health standards.
High-Performance Stainless Steel Roller Chains Start with Premium Materials
The exceptional efficiency of our Stainless Steel Roller Chains starts with the materials. We make use of top quality austenitic and martensitic stainless-steel, selected for its phenomenal anti-corrosive homes and stamina. Combined with our advanced processing innovation and reliable production, the result is a product that provides remarkable resistance to wear and tiredness. This precise design guarantees a much longer service life and reduces upkeep downtime, supplying considerable value and comfort.
Stainless Steel Roller Chains Compliant with ISO and ANSI Standards
Our dedication to high quality is verified by our adherence to international standards, consisting of ISO 606 and ANSI B29.1. This makes certain that our Stainless Steel Roller Chains offer perfect interchangeability and trusted performance in any type of basic system. We supply a complete range of configurations, consisting of brief pitch, dual pitch, and prolonged pin chains, together with a full line of corresponding accessories. This comprehensive option suggests you can resource a complete, certified chain system from a solitary, relied on provider.
Customized Stainless Steel Roller Chains for Specialized Applications
We recognize that every application is distinct. That’s why we offer 2 distinctive tensile strength alternatives to flawlessly match your tons needs. Beyond our standard series, we are happy to supply a substantial option of specialized Stainless Steel Roller Chains, consisting of high-strength MEGA series, costs 316-grade stainless steel for maximum corrosion resistance, and custom-manufactured chains constructed exactly to your specs. We have the chain you require to do the job right.
Where to Use The 16B Stainless Steel Roller Chains
- Food Processing
- Dairy Products Processing
- Health Care
- Chemicalindustry
- Other Industries
Why Choose The 16B Stainless Steel Roller Chains
●Superior Corrosion Resistance
●Temperature Resilience
●Hygienic and Easy to Clean
●Low Magnetic Permeability
●Durable and Low Maintenance
●Customizable Sizes for Versatility
●Enhanced Performance Through Heat Treatment
Chart
Frequently Asked Question
They are easy to tidy, non-toxic, and resistant to chemical and microbial build-up.
Yes, they’re engineered to handle aggressive chemicals without degrading.
Yes, our stainless steel chains keep structural stability in extreme cold and hot conditions.
Yes, our chains satisfy conventional measurements, guaranteeing easy replacement and interchangeability.
Yes, their non-porous and easy-to-clean surface makes them best for sterilized environments like pharmaceuticals or laboratories.
Very little elongation happens, but heat-treated and pre-stressed options stand up to extending and premature failure.
