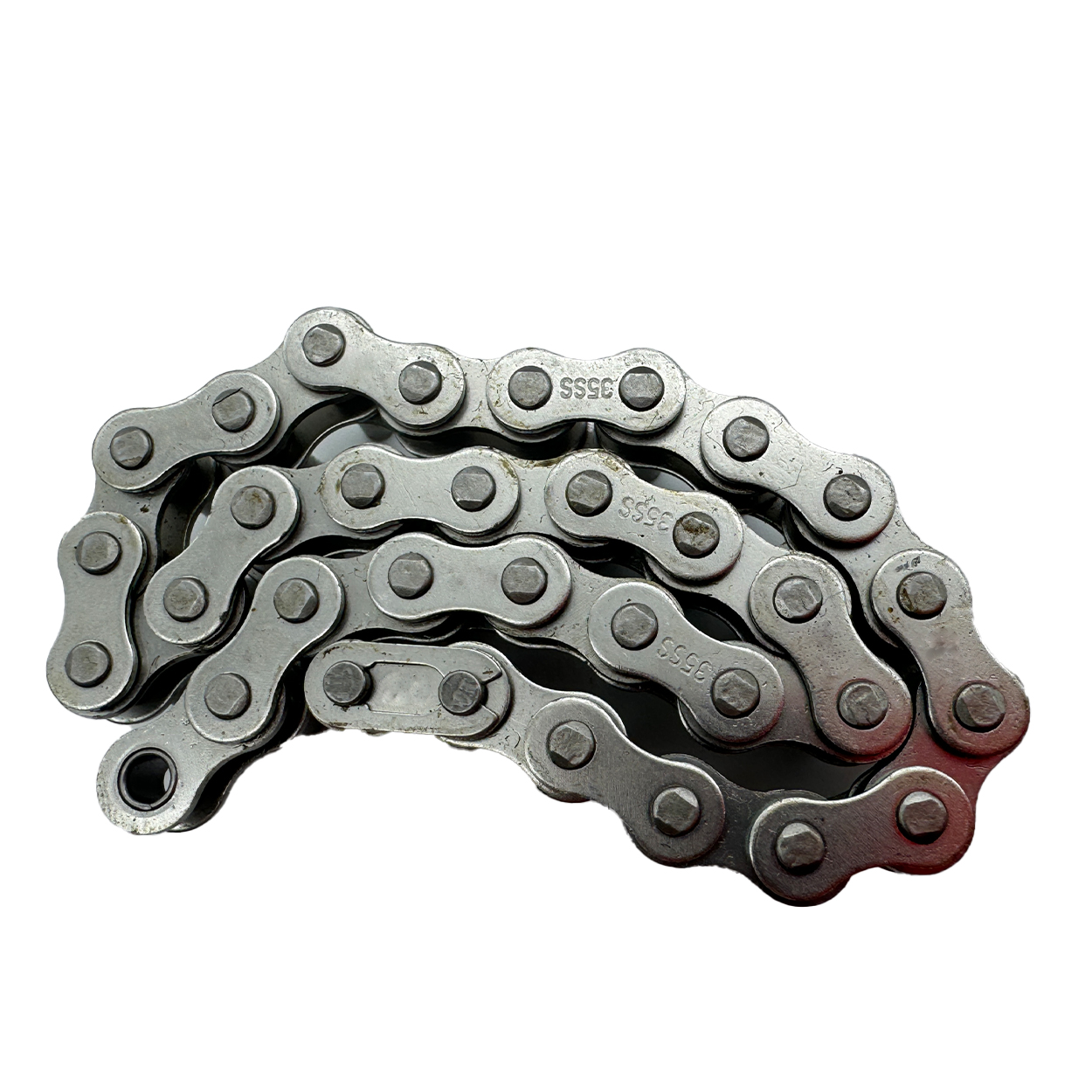

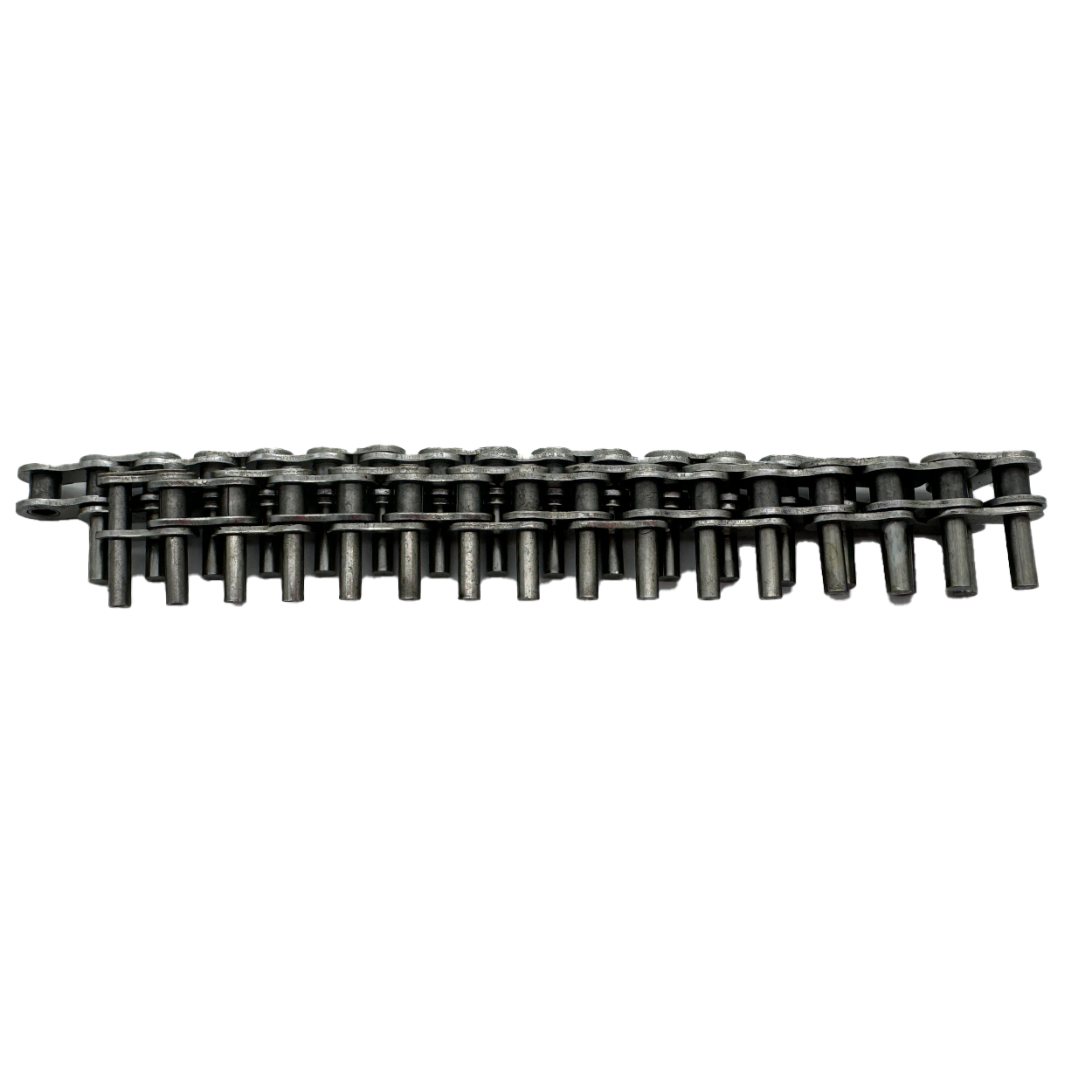

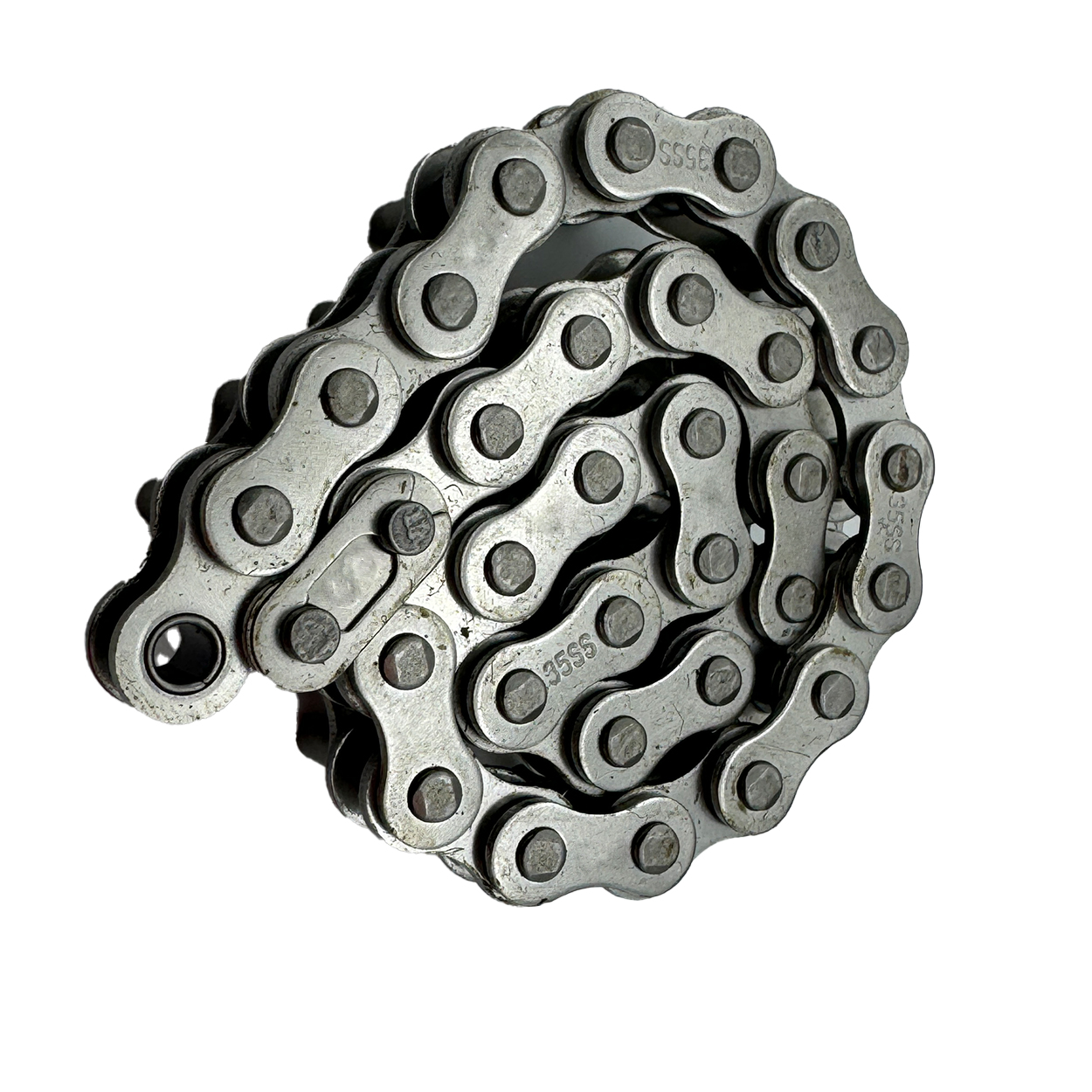

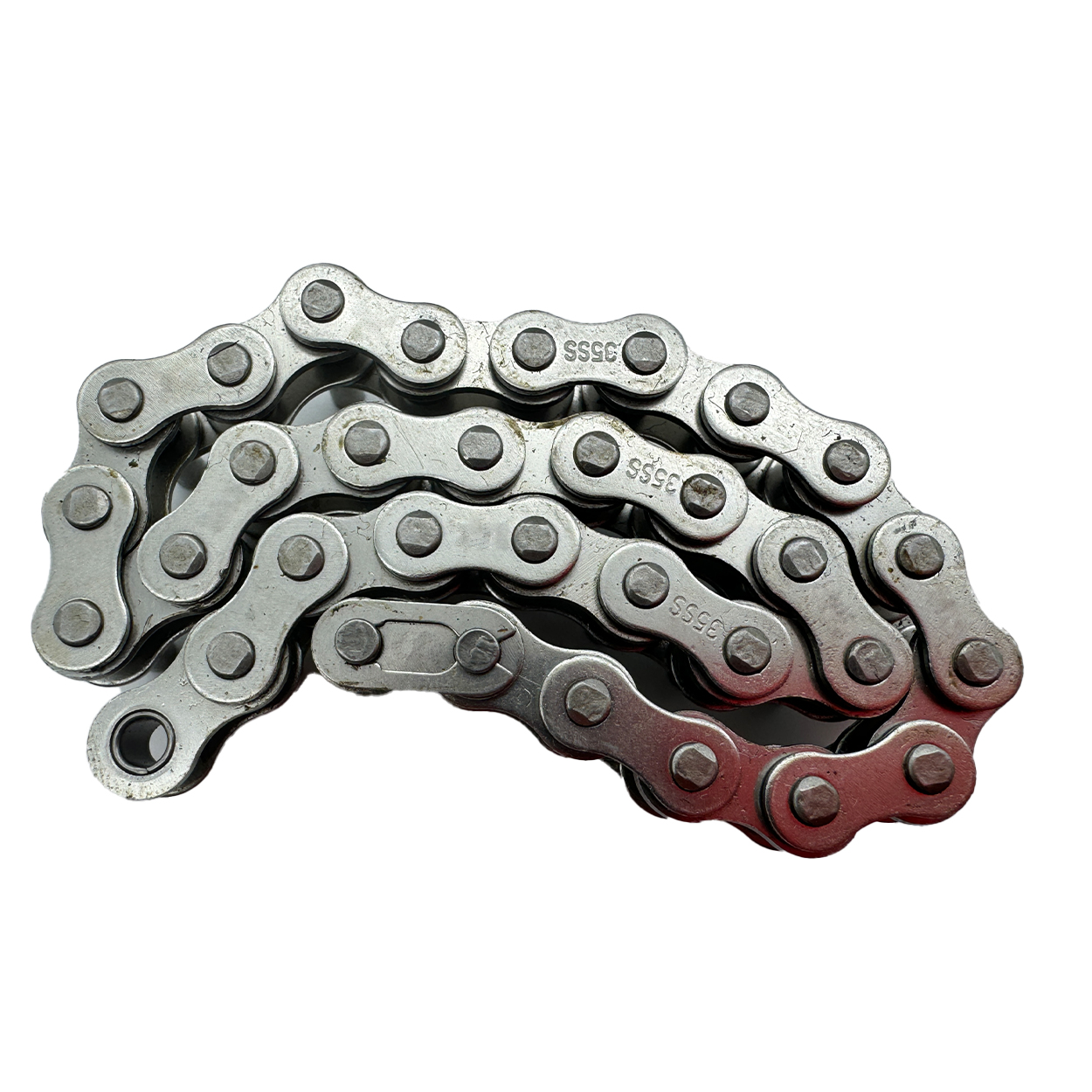

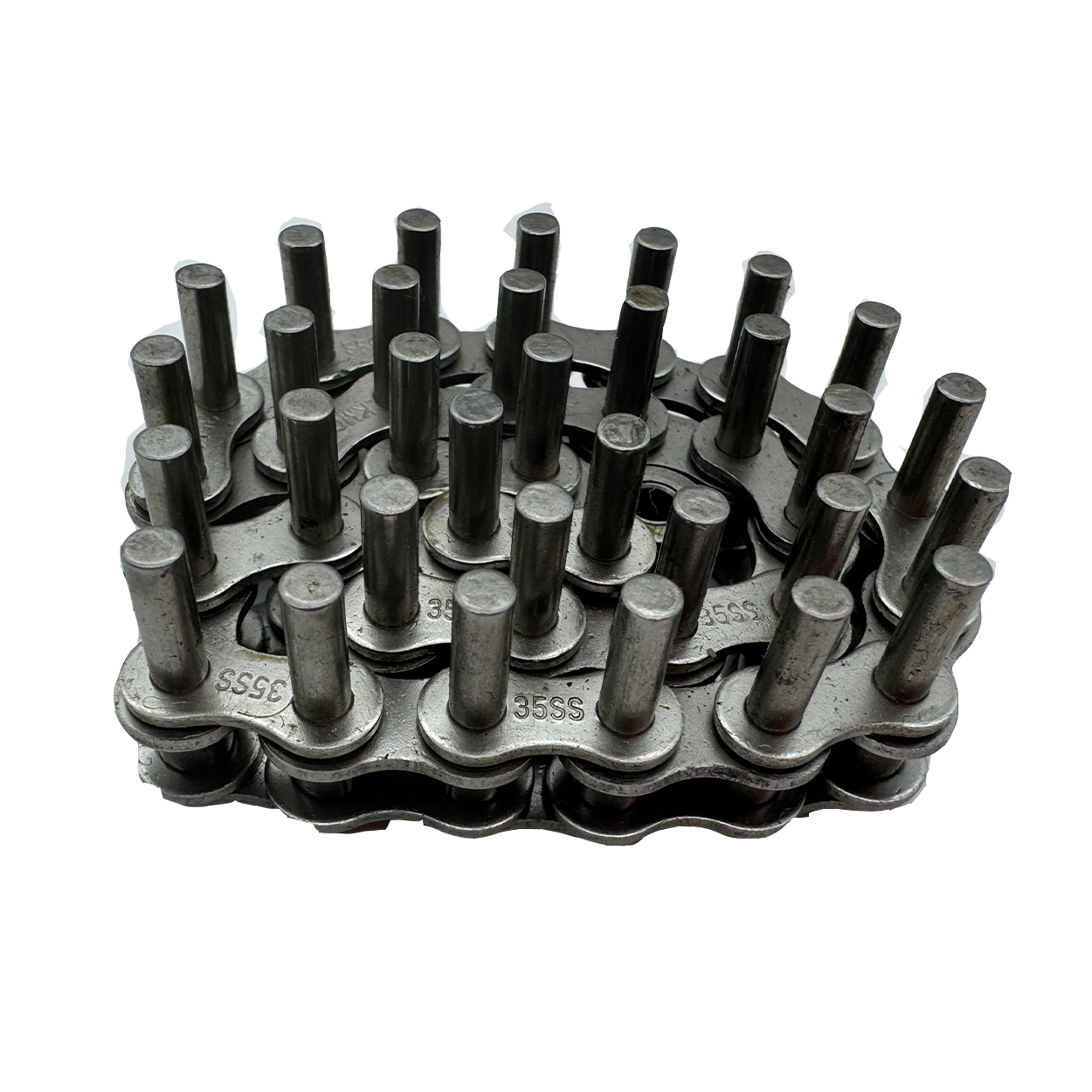

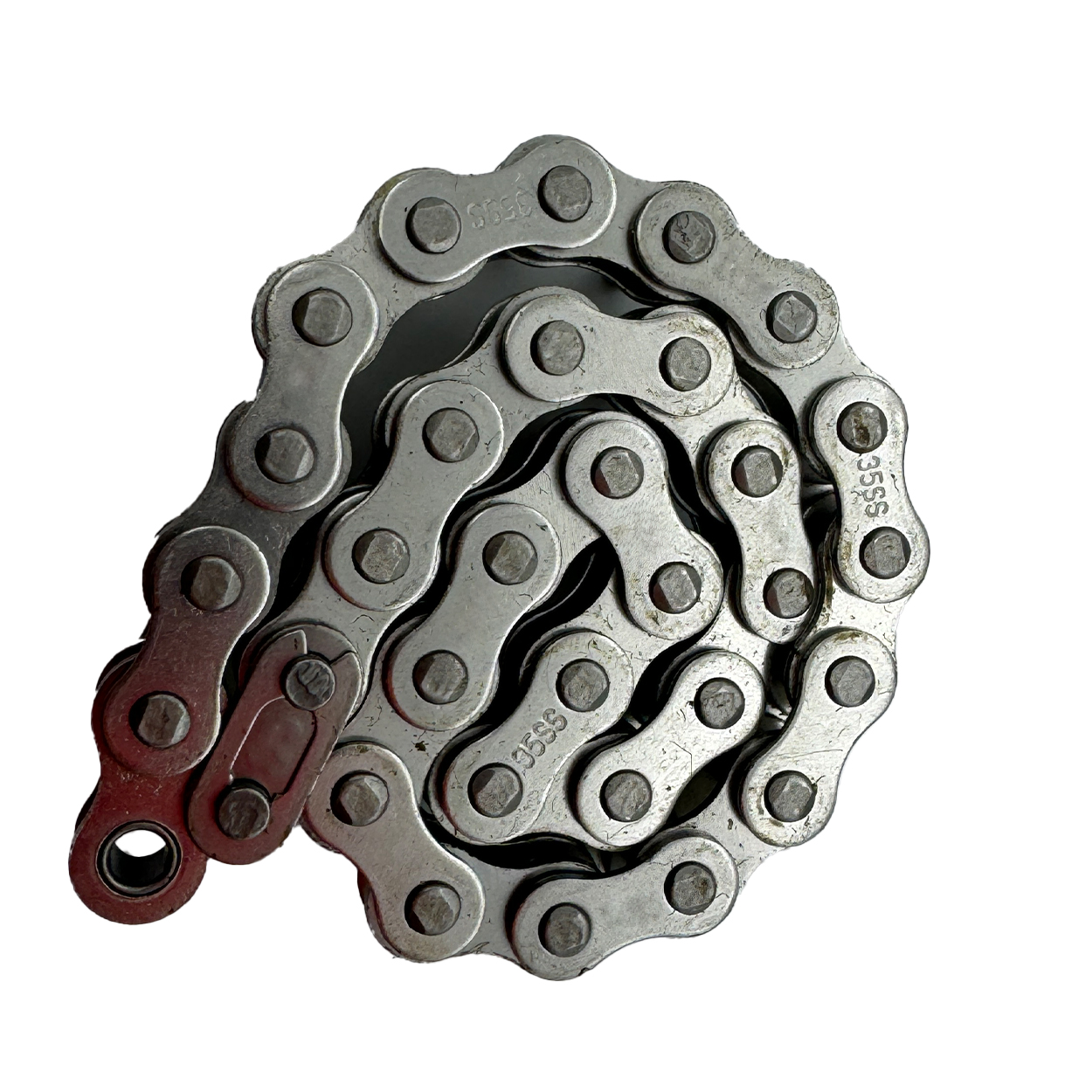

35SS Stainless Steel Roller Chains
35SS Stainless Steel Roller Chains Components
Inner and Outer Links:Roller chains usually have 2 sorts of links: internal links (roller links) and external web links (pin web links).
Rollers:Short, cylindrical rollers are a key component of the internal web links, promoting smooth involvement with sprockets and lowering rubbing.
Bushings (Sleeves):Bushings or sleeves are used to sustain the rollers within the internal web links.
Pins:Pins hold the outer links together and pass through the bushings of the internal web links.
Sprocket Engagement:The rollers of the chain engage with the teeth of a sprocket to send rotational movement.
35SS Stainless Steel Roller Chains Product data information
| Model | unit | 35SS |
| Pitch-(P) | mm | 9.525 |
| Roller Link Width（Min.)-(W min) | mm | 4.68 |
| Roller Outer Diameter(Max.)-(d1 max) | mm | 5.08 |
| Pin Outer Diameter-(d2 max) | mm | 3.6 |
| pin Length-(L max) | mm | 12.15 |
| pin Length-(lc max) | mm | 13.4 |
| Link Plate Height-(H max) | mm | 9.05 |
| Link Plate Thickness-(T) | mm | 1.15 |
| Minimum Tensile Strength-(min) | kgf | 810 |
| Average Tensile Strength | kgf | 1100 |
| Workload（max） | kgf | 220 |
Why Stainless Steel Roller Chains Are Essential for Corrosion-Prone Environments
Stop allowing corrosion and ecological deterioration compromise your machinery. Our Stainless Steel Roller Chains are the most typical and widely made use of remedy for a reason: they deliver outstanding efficiency in the toughest conditions. Developed to operate across an extremely broad variety of temperature levels and applications, these chains are the workhorse of sectors where longevity is not just a benefit, however a necessity. Trust our Stainless Steel Roller Chains to maintain your procedures running efficiently, safely, and successfully.
Stainless Steel Roller Chains Built with Advanced Materials and Technology
The strength of our Stainless Steel Roller Chains is forged from superior materials and advanced innovation. By using high-grade austenitic and martensitic stainless steel, we produce a chain with fundamental resistance to both low and high temperature levels, as well as corrosive materials. This robust construction ensures that the chain preserves its structural stability and efficiency characteristics, whether it’s running in a freezer, an oven, or a chemical handling plant, making sure consistent and trusted power transmission.
Versatile Stainless Steel Roller Chains for Every Application Standard
Regardless of your certain need, we have a Stainless Steel Roller Chain to match. Our supply is just one of the biggest in the world, covering everything from ANSI, ISO, and DIN conventional sizes to very specialized setups. We offer brief pitch roller chains for conventional drives, straight edge chains for steady sharing, double pitch chains for longer spans, and extended pin chains for custom-made add-ons. With a complete variety of devices available, you can develop a complete and tailored system tailored to your exact requirements.
Customized Stainless Steel Roller Chains to Meet Your Specific Needs
We pride ourselves on having the perfect chain for every single client. Select from our conventional collection, available in two different tensile staminas, or explore our specialized alternatives for special obstacles. We stock high-performance MEGA stainless steel chains, costs 316-stainless steel roller chains for utmost rust defense, and even use custom production solutions for really bespoke services. With our substantial selection, locating the perfect Stainless Steel Roller Chain has never ever been less complicated.
Where to Use The 35SS Stainless Steel Roller Chains
- Food Processing
- Dairy Products Processing
- Health Care
- Chemicalindustry
- Other Industries
Why Choose The 35SS Stainless Steel Roller Chains
●Superior Corrosion Resistance
●Temperature Resilience
●Hygienic and Easy to Clean
●Low Magnetic Permeability
●Durable and Low Maintenance
●Customizable Sizes for Versatility
●Enhanced Performance Through Heat Treatment
Chart
Frequently Asked Question
Usual markets consist of food handling, drugs, product packaging, chemical processing, and marine.
Yes, our stainless steel chains supply outstanding tiredness resistance for long life span.
Yes, they are suitable for computerized conveying and drive systems throughout several markets.
Yes, our technical team can assist you pick the optimal chain for your application needs.
Yes, they can operate effectively approximately 400 ° C and down to -20 ° C without losing toughness or breaking.
Yes, we sustain OEM and large-volume orders with regular quality and affordable prices.
