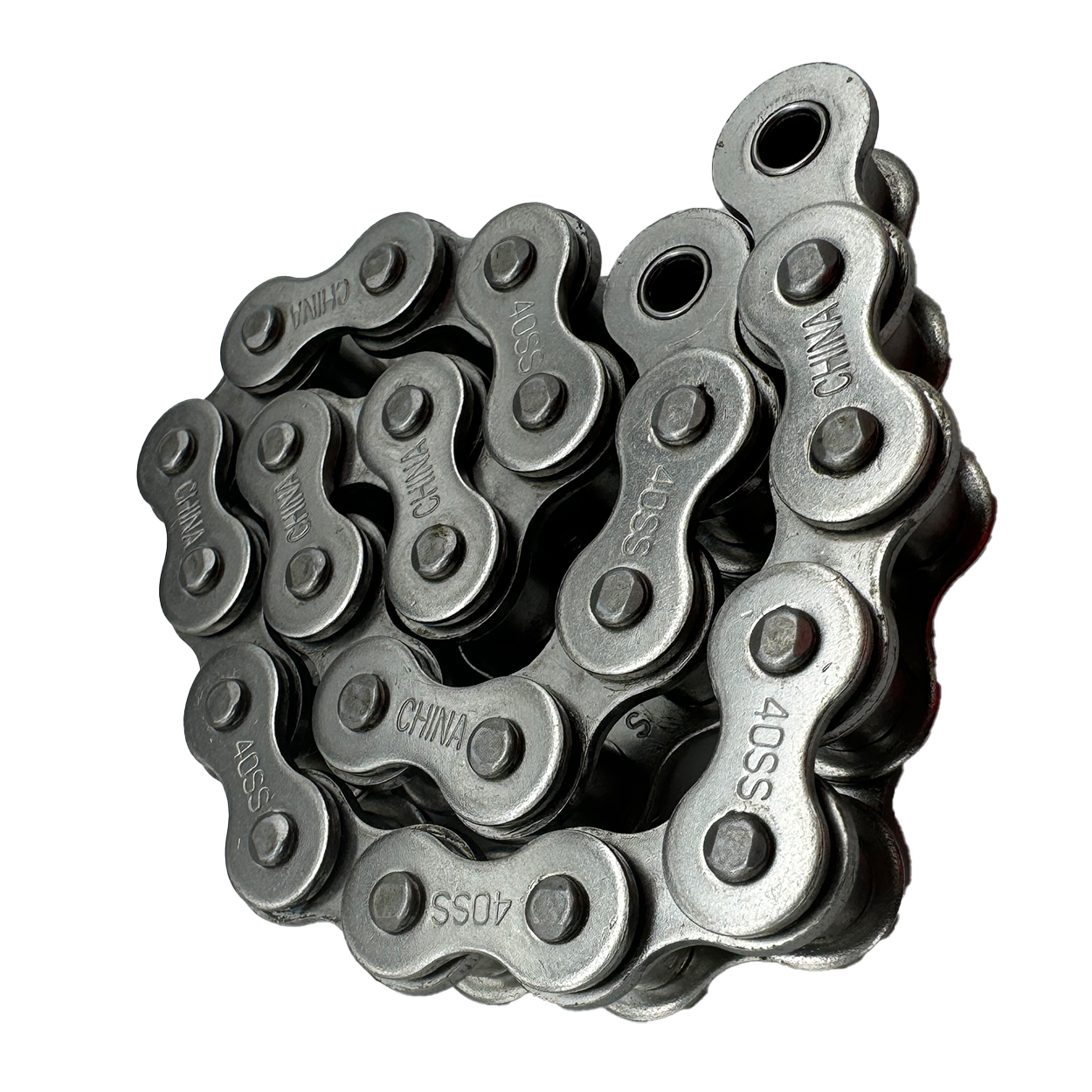

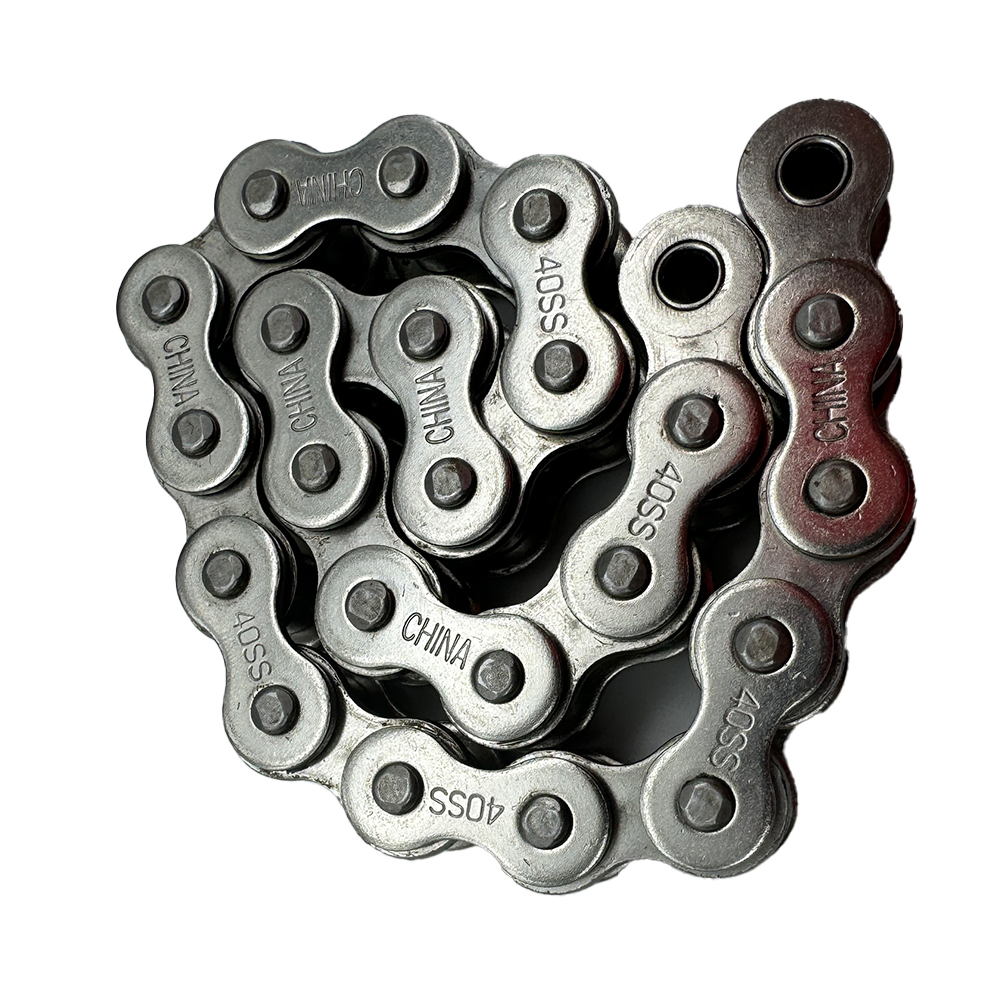

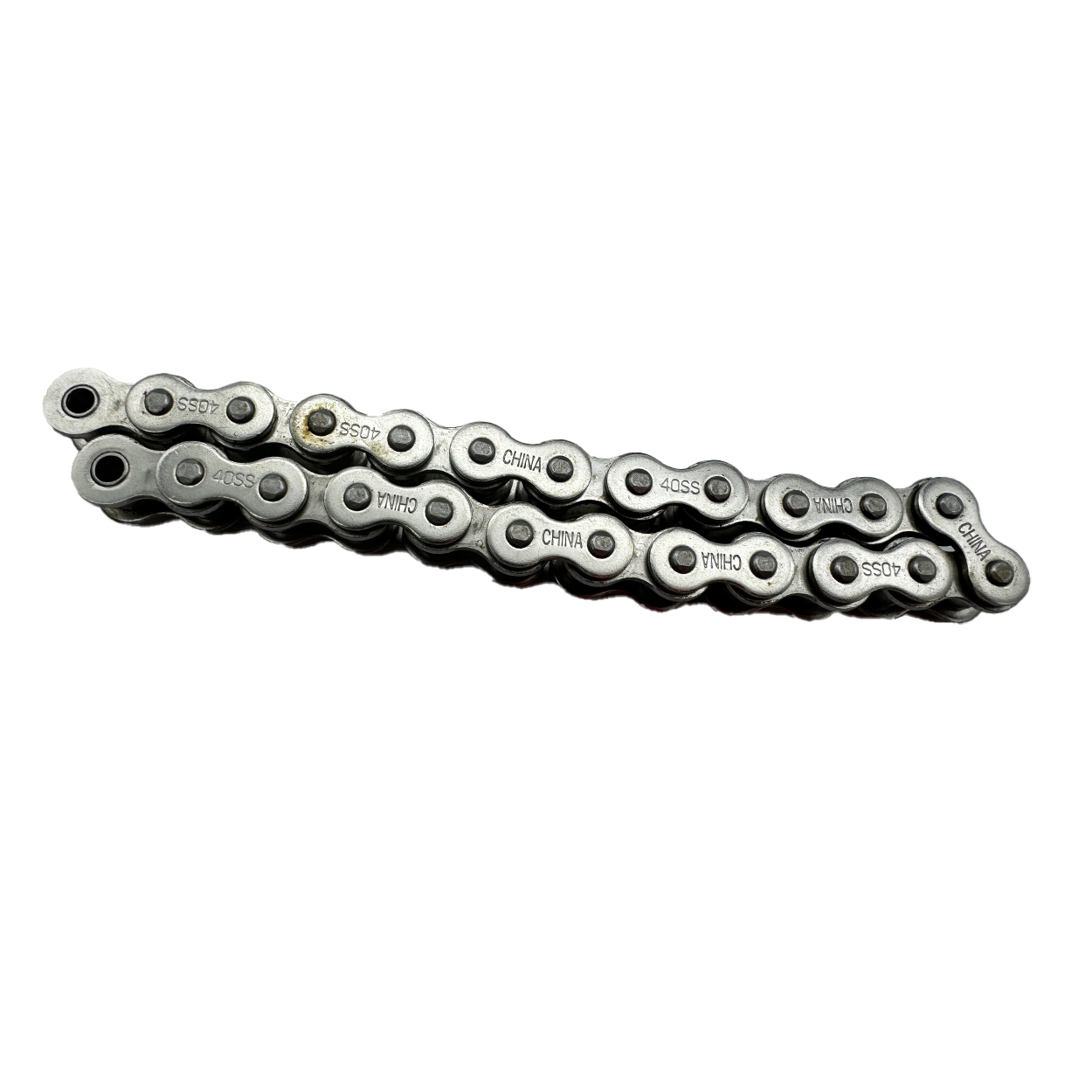

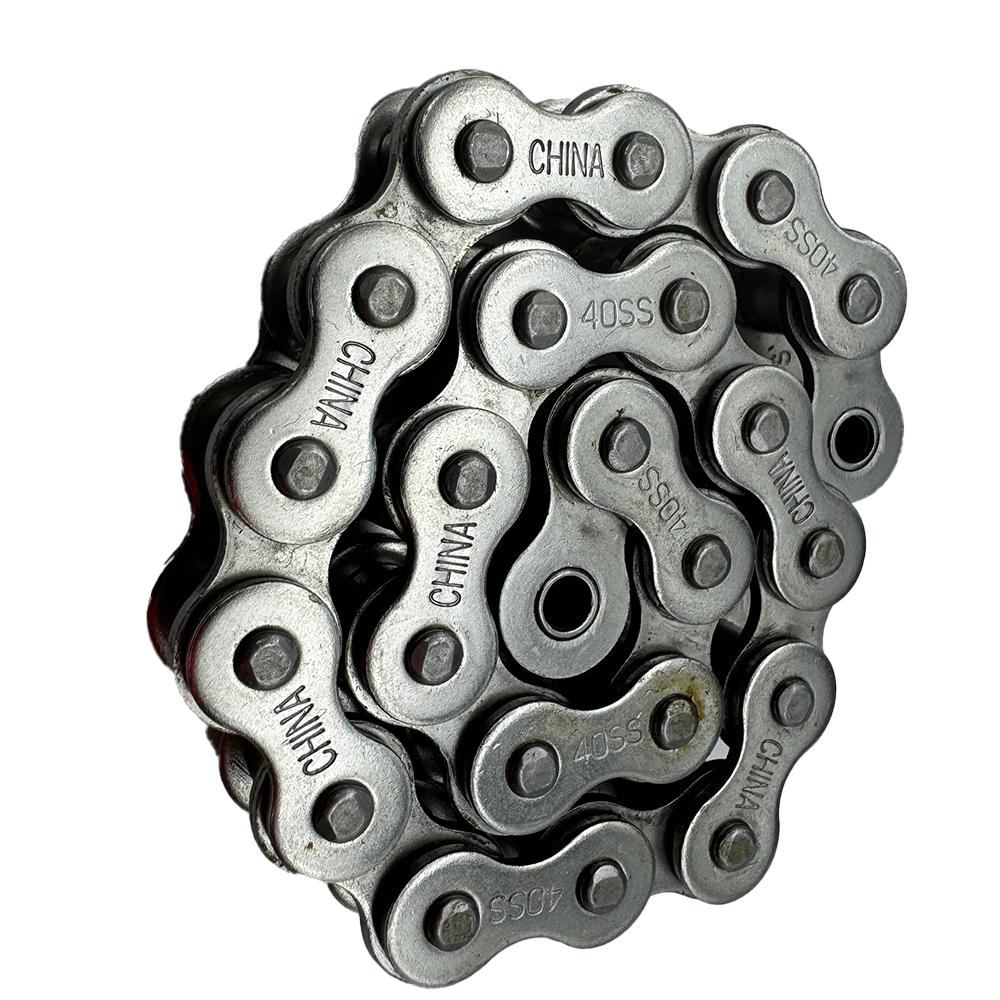

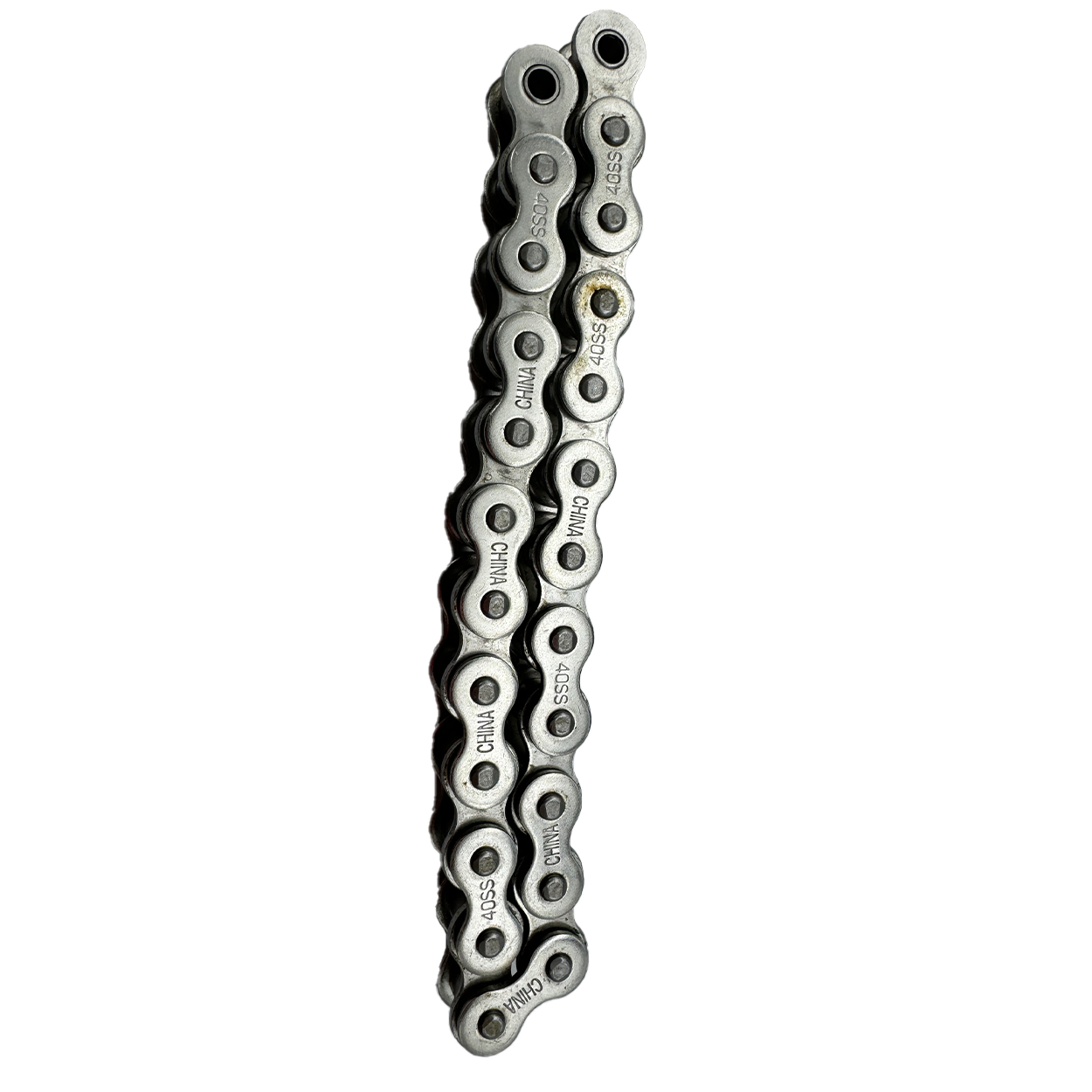

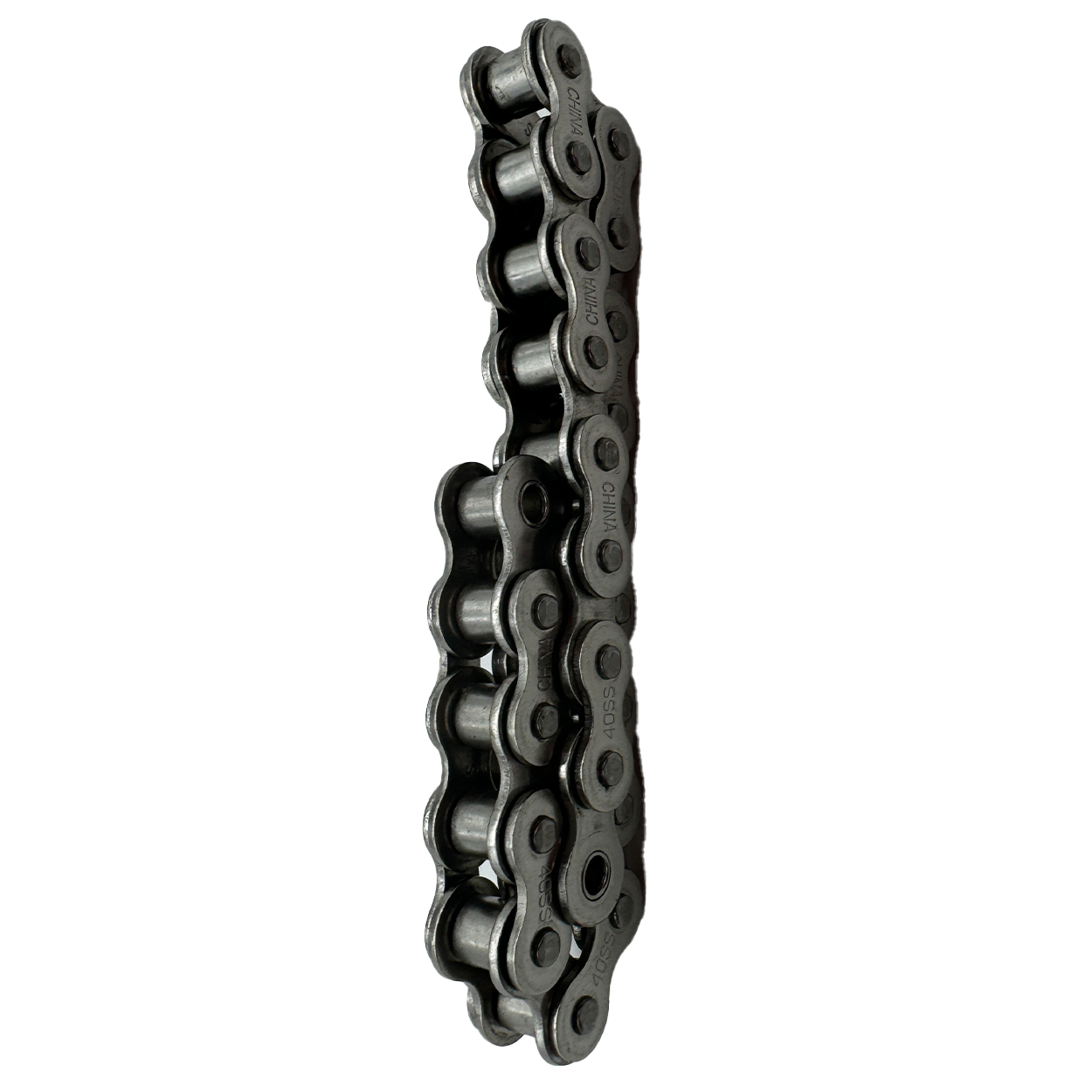

40SS Stainless Steel Roller Chains

08A, 40SS, A Series Roller Chains, Chain, Industrial chain, Roller Chain, Stainless Steel Series

40SS Stainless Steel Roller Chains Components

Inner and Outer Links:Roller chains usually have 2 sorts of links: internal links (roller links) and external web links (pin web links).

Rollers:Short, cylindrical rollers are a key component of the internal web links, promoting smooth involvement with sprockets and lowering rubbing.

Bushings (Sleeves):Bushings or sleeves are used to sustain the rollers within the internal web links.

Pins:Pins hold the outer links together and pass through the bushings of the internal web links.

Sprocket Engagement:The rollers of the chain engage with the teeth of a sprocket to send rotational movement.

40SS Stainless Steel Roller Chains Product data information

Model	unit	40SS
Pitch-（P)	mm	12.7
Roller Link Width（Min.)-(W)	mm	7.85
Roller Diameter(Max.)-(D)	mm	7.92
Pin Dia-(d)	mm	3.98
Overall Width Riv-(L max)	mm	17.8
Overall Width Riv-(Lc max)	mm	21
Inner Link Plate Heinght-(H)	mm	12.07
Pin Link Plate Thickness-(T1)	mm	1.5
Minimum Tensile Strength	kgf	1420
Average Tensile Strength	kgf	1950
Workload（max）	kgf	370

40SS Stainless Steel Roller Chains: Trusted Performance in Critical Industries

Our stainless-steel roller chains are the leading option for power transmission and sharing systems throughout a plethora of critical sectors. From food handling and drugs to chemical production and ecological tools, these chains are engineered for exceptional dependability. For generations, market leaders have actually trusted our chains for heavy-duty applications, relying on their architectural honesty to minimize expensive tools failures and guarantee continual, effective procedure.

Precision-Crafted 40SS Stainless Steel Roller Chains for Demanding Environments

Crafted from exceptional stainless-steel materials, consisting of high-grade 18-8S, and generated making use of sophisticated production procedures, our chains personify quality. They have a distinct mix of high toughness, exceptional accuracy, and a lengthy service life. These top qualities, integrated with their fundamental sanitation and hygienic residential properties, make them perfectly suited to satisfy the specialized and rigorous needs of users in sensitive and requiring industrial atmospheres like rubber processing and electronics.

Engineered Durability: 40SS Stainless Steel Roller Chains for Extreme Conditions

Engineered to do where various other chains stop working, our stainless-steel roller chains offer phenomenal strength in the most tough problems. They are highly immune to rust from substances like water, acids, and antacid, ensuring structural stability over time. Furthermore, their impressive thermal security allows for flawless operation in a broad temperature range, from a cold -20 ° C to a scorching 400 ° C, making them the excellent solution for both low and high-temperature applications.

Comprehensive 40SS Stainless Steel Roller Chains Portfolio for each Application

We provide an extensive profile of stainless-steel roller chains to satisfy your specific needs. Our line of product complies with major global criteria, including ANSI B29.1, ISO, and DIN specs, ensuring compatibility and quality. For one-of-a-kind difficulties, we supply specialized choices such as our MEGA high-strength collection, 316-grade stainless steel for enhanced corrosion resistance, and fully custom-made chains, guaranteeing you locate the ideal fit for your application.
