415H Drive Chain
415H Drive Chain Components
Links：Links are the main parts that make up a drive chain, connecting together to form a continuous loop. Each link usually has two outer plates and two inner plates held together by pins. These links give the chain its length and flexibility, allowing it to bend around sprockets.
Rollers：Rollers, situated between the inner plates, help reduce friction when the chain meshes with sprocket teeth. They rotate around the pins, enabling smooth operation and reducing wear on both the chain and the sprockets.
Bushings：ushings are round tube-like parts placed between the pins and rollers. They work like small bearings, helping to cut down friction and wear between the chain’s moving parts. In some types of chains, the bushings are built directly into the inner plates.
Sprockets：Sprockets are wheels with teeth that catch and move the chain, helping to push or pull it forward. How fast and strong the system runs depends on the size of the sprockets and how many teeth they have.
Pins：Pins are the parts that connect the chain links together. They go through the holes in both the inner and outer plates and act as pivot points, letting the chain bend and move smoothly around the sprockets.
415H Drive Chain Product data information
| Model | unit | 415E |
| Pitch-（P) | mm | 12.700 |
| Roller Link Width（Min.)-(W) | mm | 4.88 |
| Roller Diameter(Max.)-(D) | mm | 7.77 |
| Pin Link Plate Thickness-(T1) | mm | 1.10 |
| Inner link plate Thickness-(T2) | mm | 1.40 |
| Inner Link Plate Height-(H) | mm | 10.10 |
| Pin Diameter-(d) | mm | 3.95 |
| Overall Width Riv-(L) | mm | 12.20 |
| Overall Width Con-(G) | mm | 13.35 |
| Minimum Tensile Strength | kgf | 1250 |
| Average Tensile Strength | kgf | 1390 |
| Displacement Application(Max) | cc | 50 |
415H Drive Chain

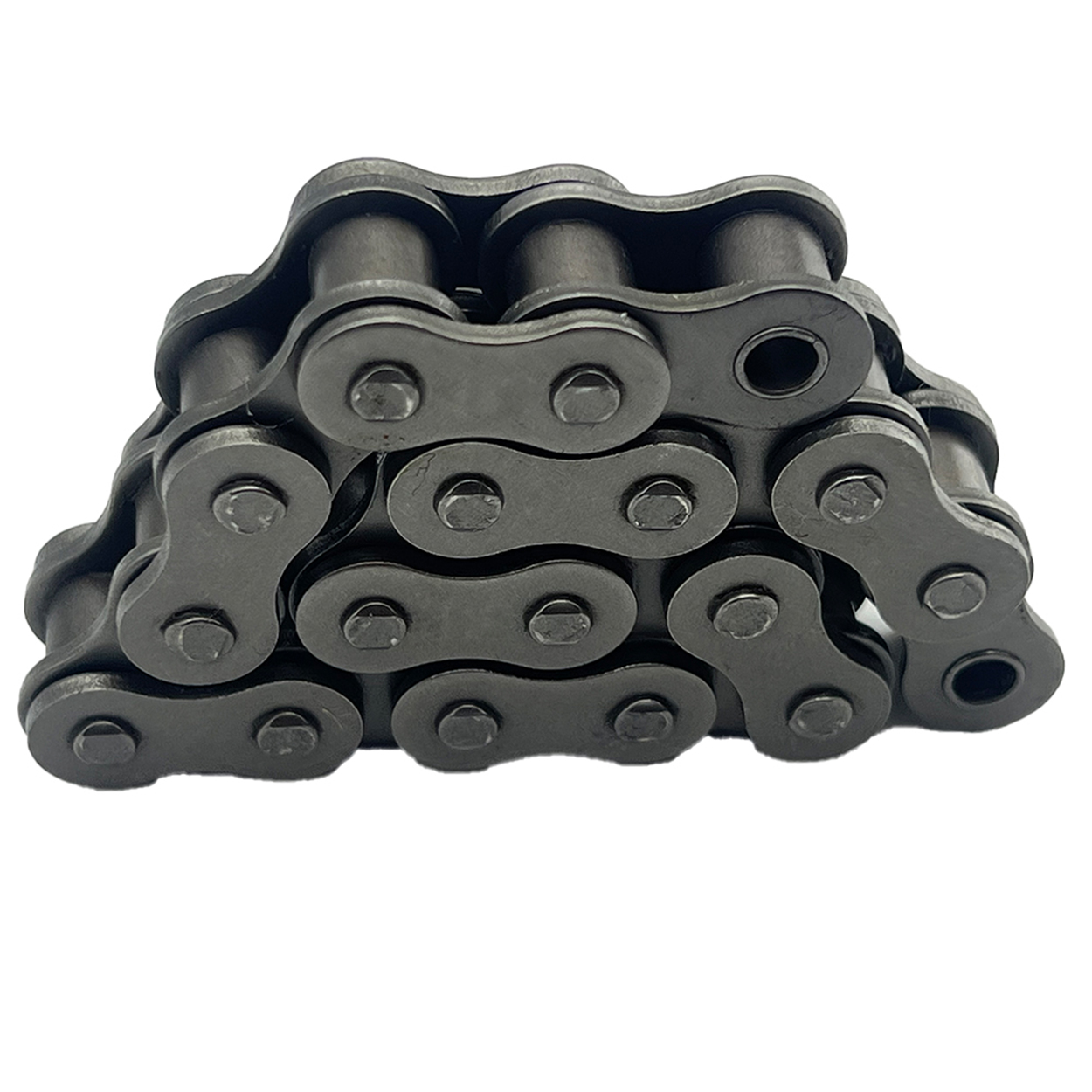

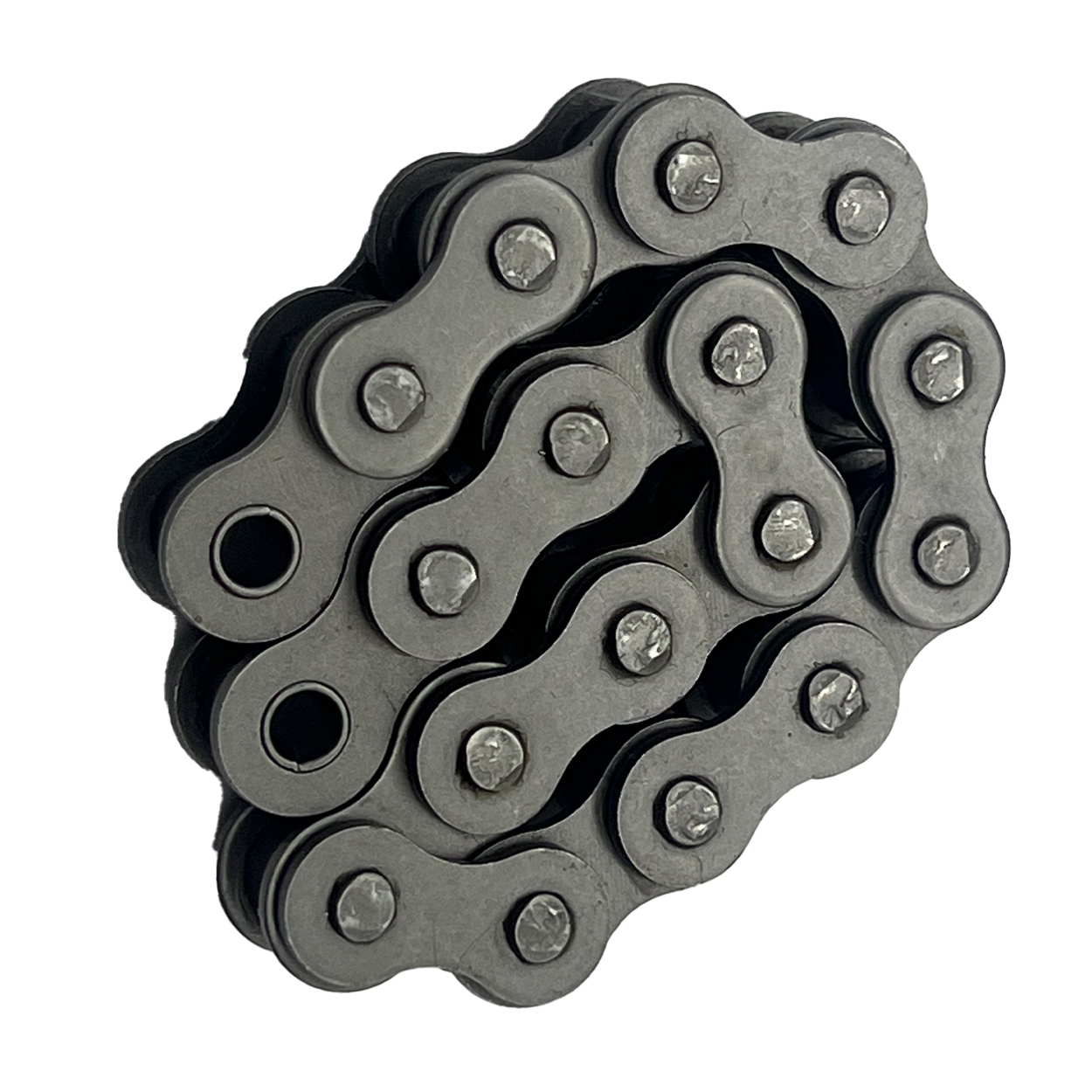

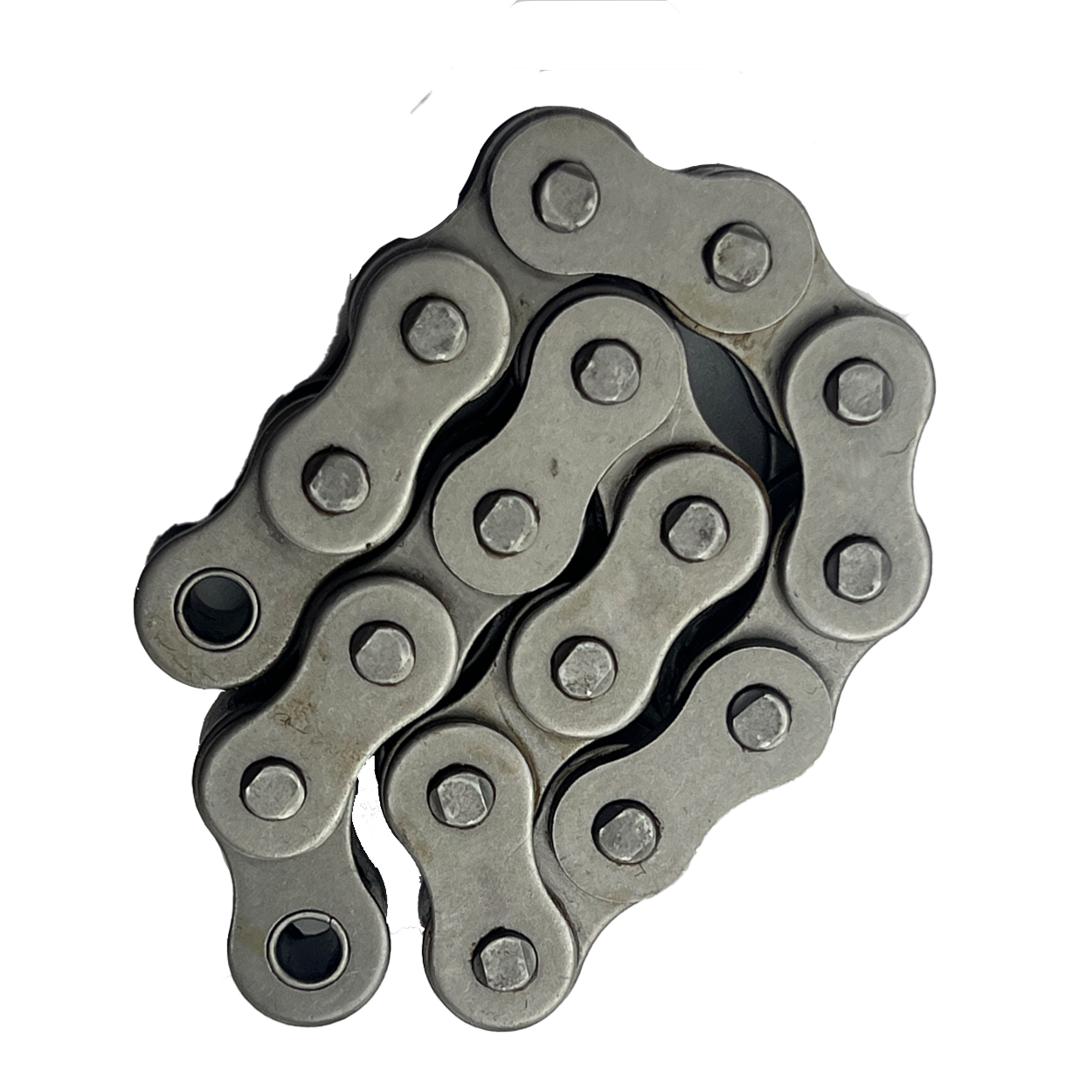

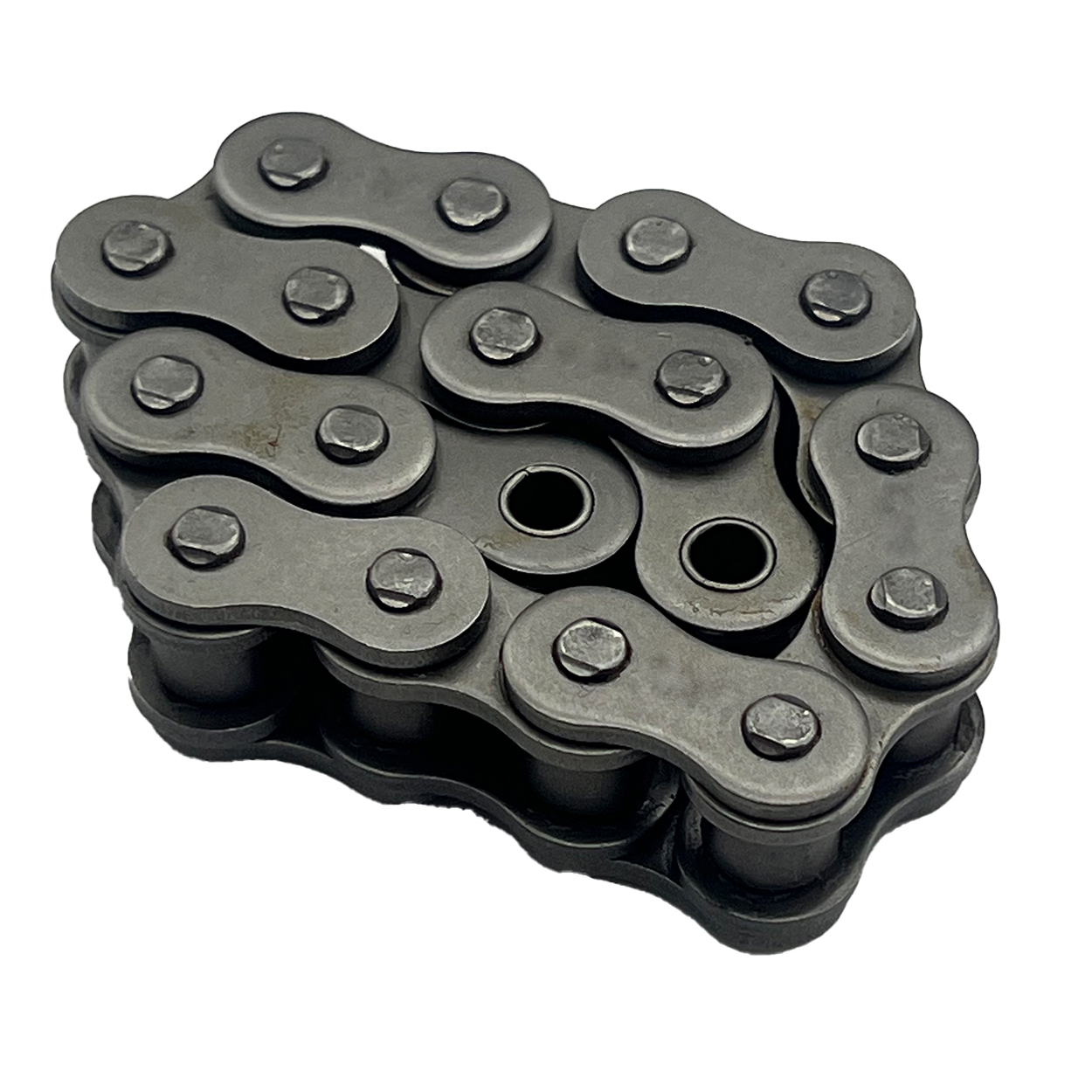

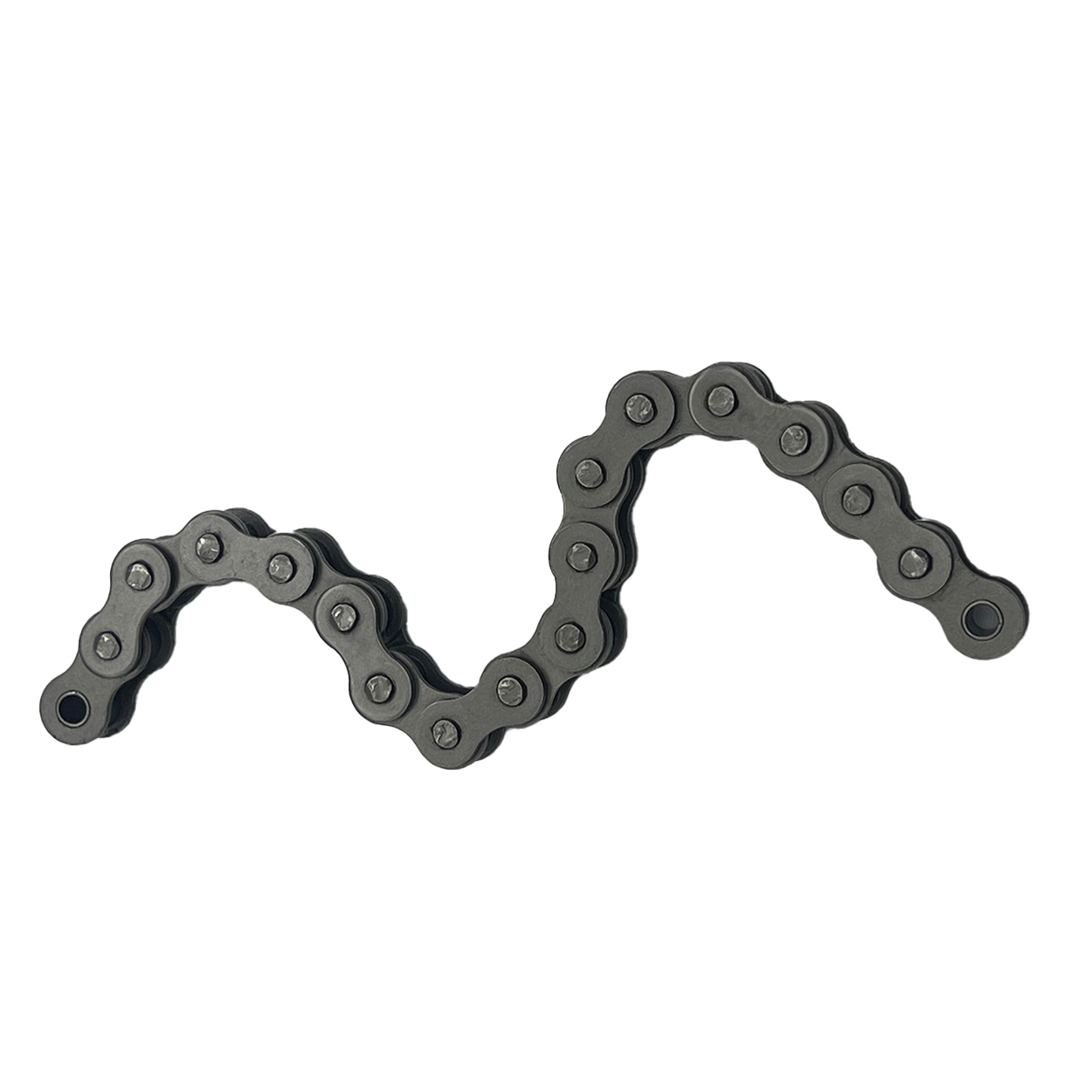

Our 415H drive chain is strong and built to work well with many machines. It is a roller chain used in bikes, mopeds, and small engines. This chain is made from high quality carbon steel and is heat treated for extra strength.
Product Advantages
- It is strong and durable.
- It works with many machines.
- It has cold design that makes power work smooth.
- It reduces repair work and saves you money.
For more details on our Drive Chain, please visit our page. Learn more about our Motorcycle Chain for many options. Check out our Heavy-Duty Chain page for more strong chain choices.
Get Your Chain Now!
Buy our 415H Drive Chain today and see how it makes your machine work better. We are sure you will like its strength and ease of use.
Where to Use The 415H Drive Chain
- Motorcycles
- ATVs (economical Standard ATV chain)
- Go Karts
- Off-Road Use
Why Choose The 415H Drive Chain
●Quality
●Performance
●Efficiency
●Versatility
Chart
Frequently Asked Question
The “H” means “Heavy-Duty”, which shows this chain is stronger and better suited for tough or high-stress applications.
It is made from high-quality carbon steel, heat treated to increase strength and durability.
Yes, it is hot-dipped in lubrication to reduce friction and make the chain run smoothly from the start.
Yes, the chain is pre-loaded to reduce initial stretch and wear, helping it last longer.
Yes, the chain is pre-loaded to reduce initial stretch and wear, helping it last longer.
Heat treatment strengthens the steel, making the chain more resistant to wear, bending, or breaking under pressure.
