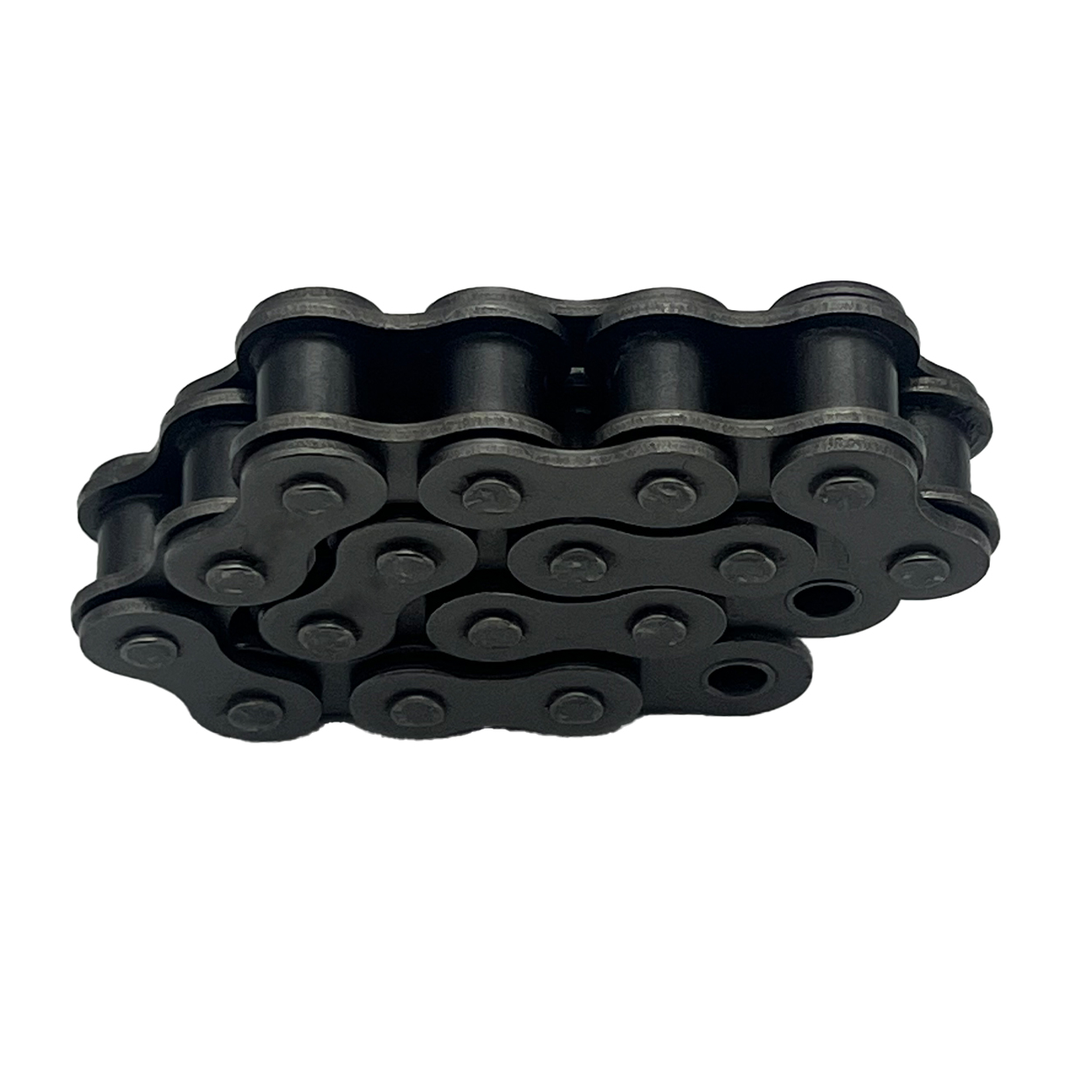

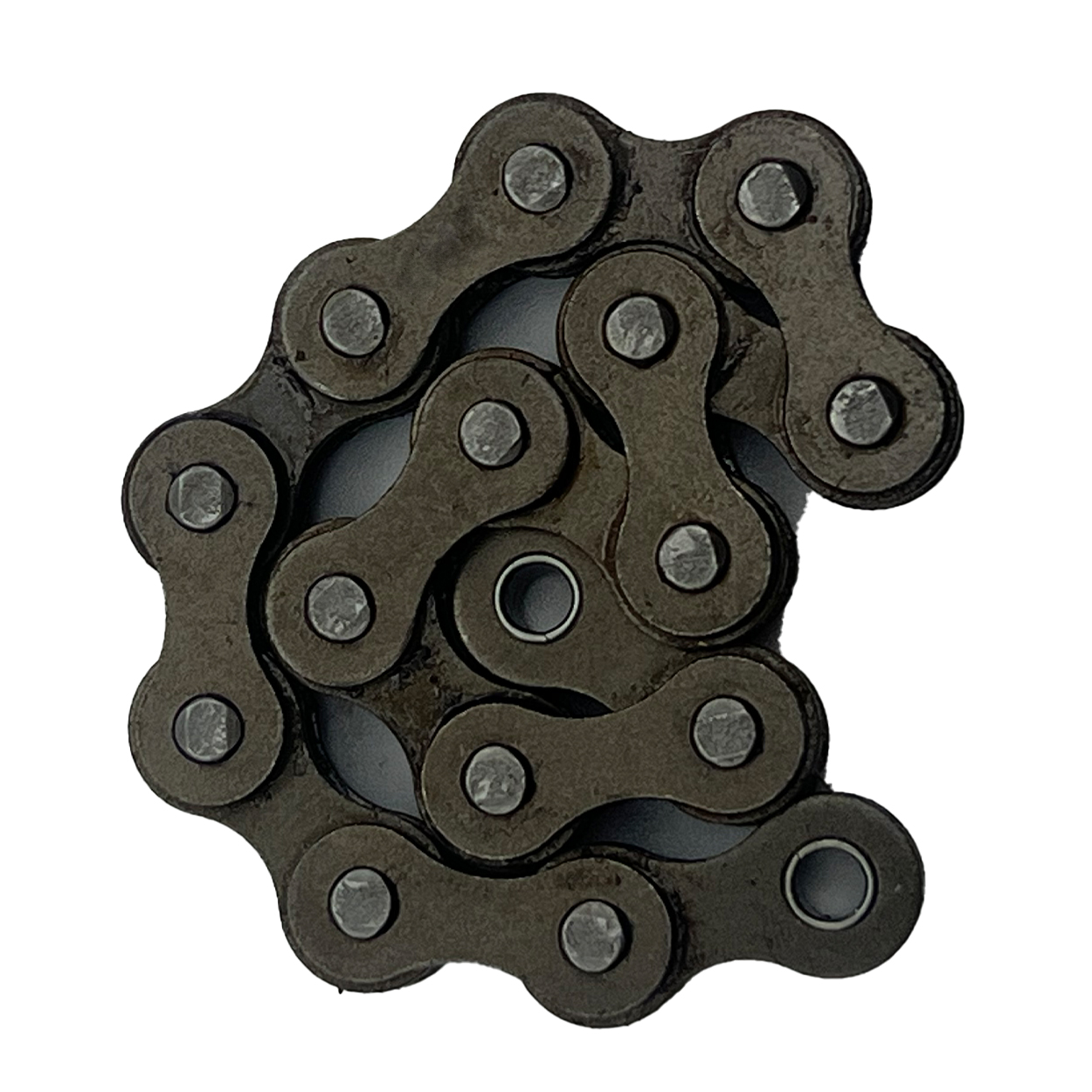

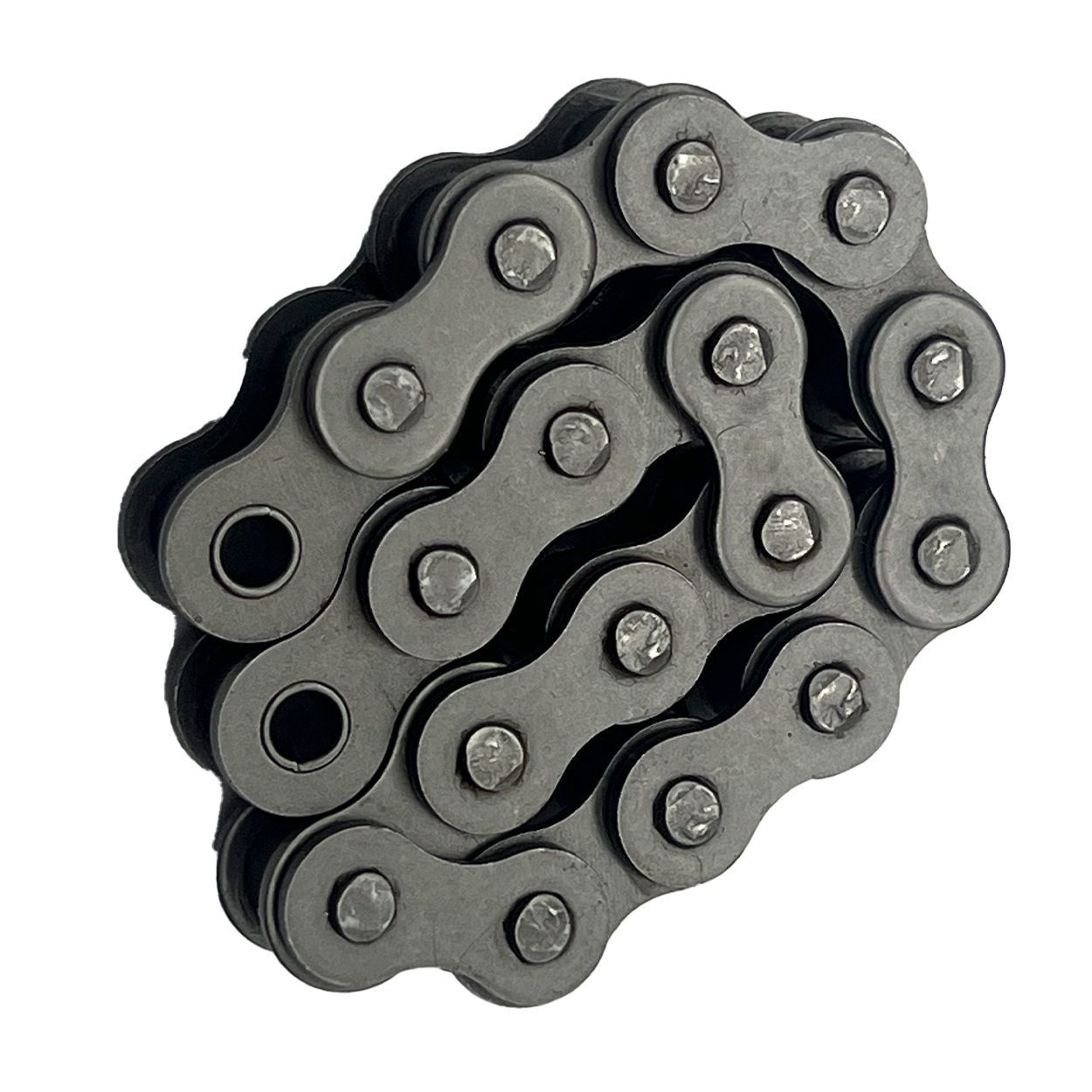

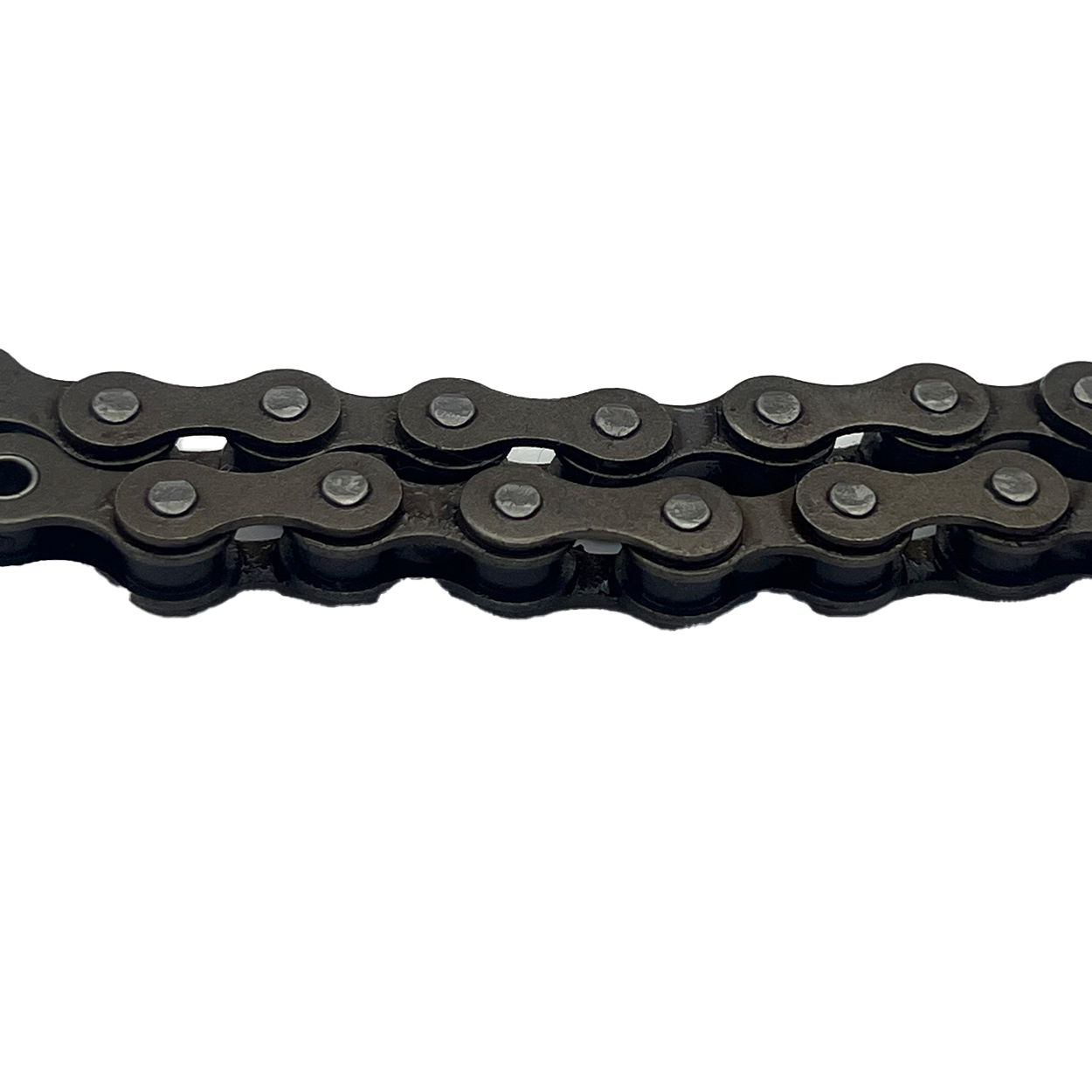

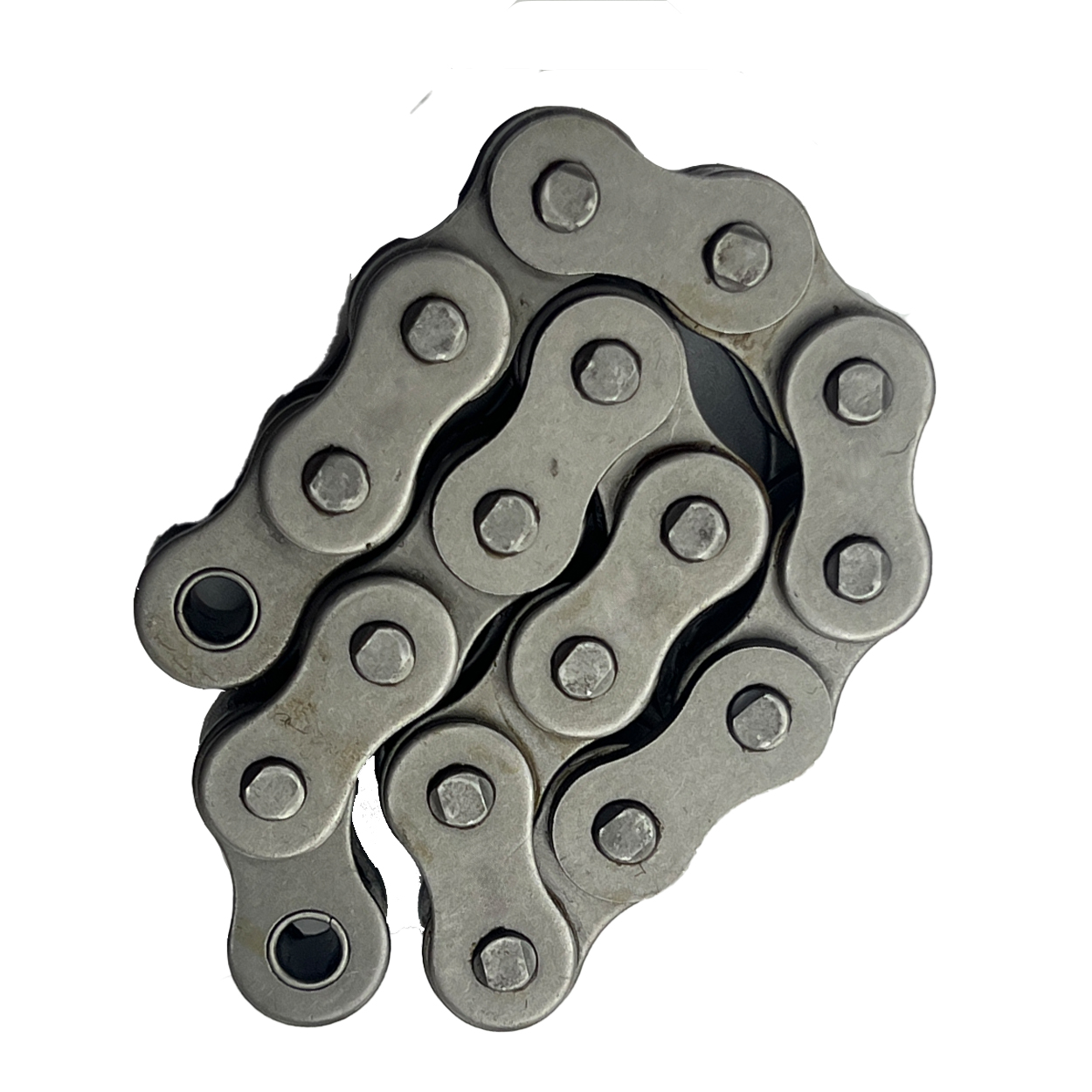

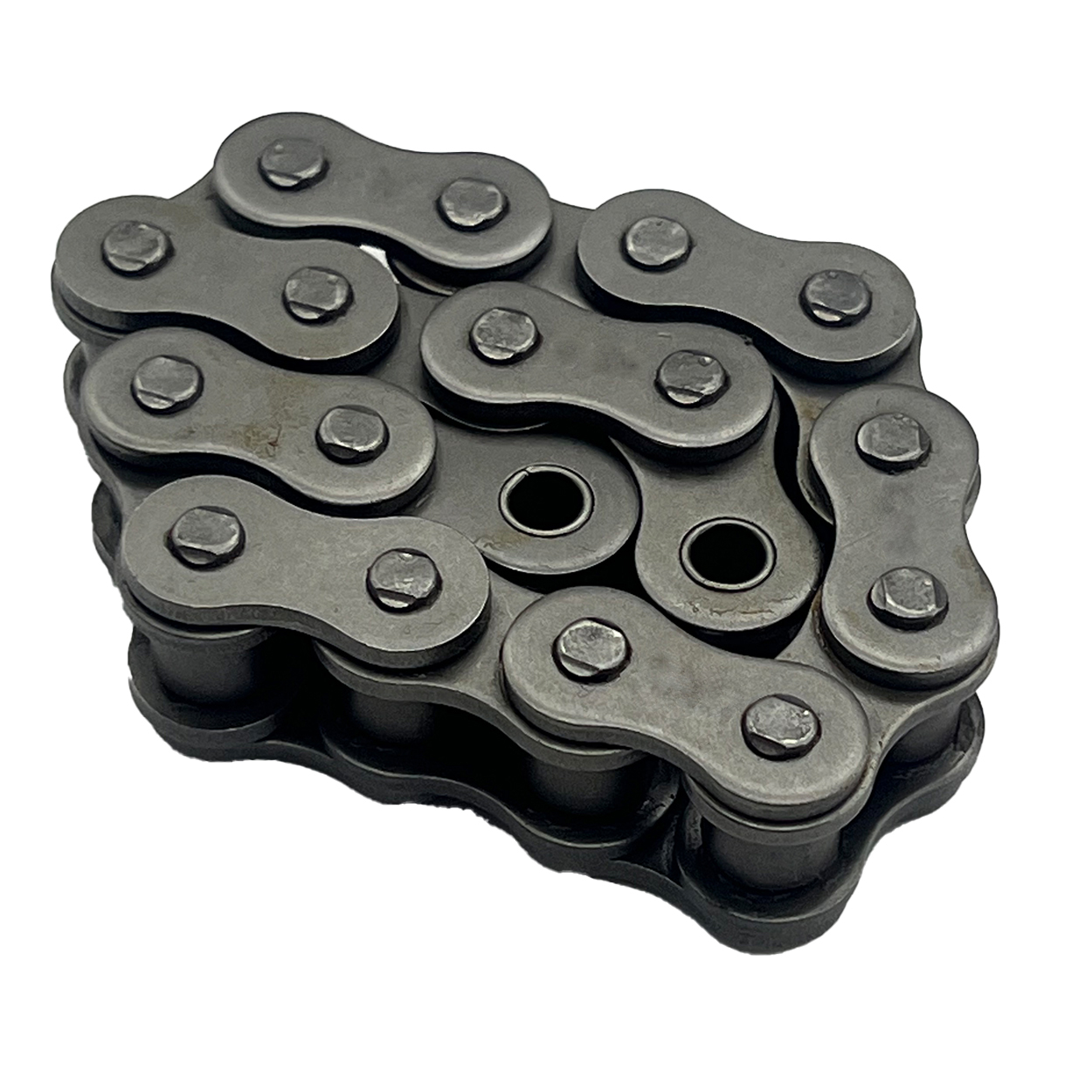

420 Drive Chain
420 Drive Chain Components
Links：Links are the main parts that make up a drive chain, connecting together to form a continuous loop. Each link usually has two outer plates and two inner plates held together by pins. These links give the chain its length and flexibility, allowing it to bend around sprockets.
Rollers：Rollers, situated between the inner plates, help reduce friction when the chain meshes with sprocket teeth. They rotate around the pins, enabling smooth operation and reducing wear on both the chain and the sprockets.
Bushings：ushings are round tube-like parts placed between the pins and rollers. They work like small bearings, helping to cut down friction and wear between the chain’s moving parts. In some types of chains, the bushings are built directly into the inner plates.
Sprockets：Sprockets are wheels with teeth that catch and move the chain, helping to push or pull it forward. How fast and strong the system runs depends on the size of the sprockets and how many teeth they have.
Pins：Pins are the parts that connect the chain links together. They go through the holes in both the inner and outer plates and act as pivot points, letting the chain bend and move smoothly around the sprockets.
420 Drive Chain Product data information
| Model | unit | 420 |
| Pitch-（P) | mm | 12.700 |
| Roller Link Width（Min.)-(W) | mm | 6.25 |
| Roller Diameter(Max.)-(D) | mm | 7.77 |
| Pin Link Plate Thickness-(T1) | mm | 1.50 |
| Inner link plate Thickness-(T2) | mm | 1.50 |
| Inner Link Plate Height-(H) | mm | 11.80 |
| Pin Diameter-(d) | mm | 3.95 |
| Overall Width Riv-(L) | mm | 14.70 |
| Overall Width Con-(G) | mm | 16.30 |
| Minimum Tensile Strength | kgf | 1640 |
| Average Tensile Strength | kgf | 1850 |
| Displacement Application(Max) | cc | 90 |
More About This Chain
This aftermarket 420 chain has many 420 chain benefits. It is a good choice for many riders. We want you to have the best 420 chain. Check 420 chain reviews to see what others say. A 420 chain comparison can help you pick. If this chain is not right, there are 420 chain alternatives. But this 420 chain is a top pick! You are buying a 420 chain that is made to work. You can find this 420 chain online. We are a trusted 420 chain distributor.
Need more info on a Drive Chain? Or perhaps for your Motorcycle Chain? We also have parts like a 420 chain sprocket or a full 420 chain and sprocket kit. You can explore different motorcycle chains and their uses on our site.
We hope this helps you pick your 420 drive chain!
420 Chain Maintenance is key.
- 420 chain cleaning keeps it nice.
- 420 chain lubrication helps it run smooth.
- Check the 420 chain tensioner to make sure it is not too loose.
- Look for 420 chain wear. You may need a 420 chain replacement if it is old. Learn about 420 chain installation and 420 chain removal. If you have 420 chain problems, ask for help with 420 chain troubleshooting or 420 chain repair. Proper care helps 420 chain durability and 420 chain lifespan. 420 chain safety is important!
420 Drive Chain: Strong and Good for Your Ride!
Do you need a new chain for your bike? Our 420 Drive Chain is very strong. This 420 chain is a great choice. It is a drive chain that helps your bike move. It is a motorcycle chain. It is also an ATV chain. You can use it for your dirt bike chain too. This off-road chain is tough!
Where to Use The 420 Drive Chain
- Motorcycles
- ATVs (economical Standard ATV chain)
- Go Karts
- Off-Road Use
Why Choose The 420 Drive Chain
●Quality
●Strong
●Efficiency
●Good Price
Chart
Frequently Asked Question
What does “420” mean in a 420 drive chain?
“420” refers to the chain’s size. It indicates a 0.5-inch pitch (distance between links) and a 0.25-inch roller width, making it suitable for smaller motorcycles, dirt bikes, ATVs, and go-karts.
The 420H (Heavy Duty) chain has thicker side plates compared to the standard 420, offering increased strength and durability for higher-stress applications like racing or off-road riding.
Yes, the 420 chain fits many mini bikes, pit bikes, small displacement motorcycles, and ATVs. Always check your owner’s manual or current chain size to confirm compatibility.
Common options include 90, 110, or 120 links. The correct length depends on your vehicle’s sprocket setup and swingarm length. You can remove links for a custom fit.
Clean it regularly with a chain cleaner, lubricate with a proper motorcycle chain lube, and ensure proper tension. Avoid over-tightening to prevent premature wear.
Replace the chain when you notice elongation, tight spots, rust, stiff links, or if it frequently requires adjustment. For best results, replace the sprockets at the same time.
