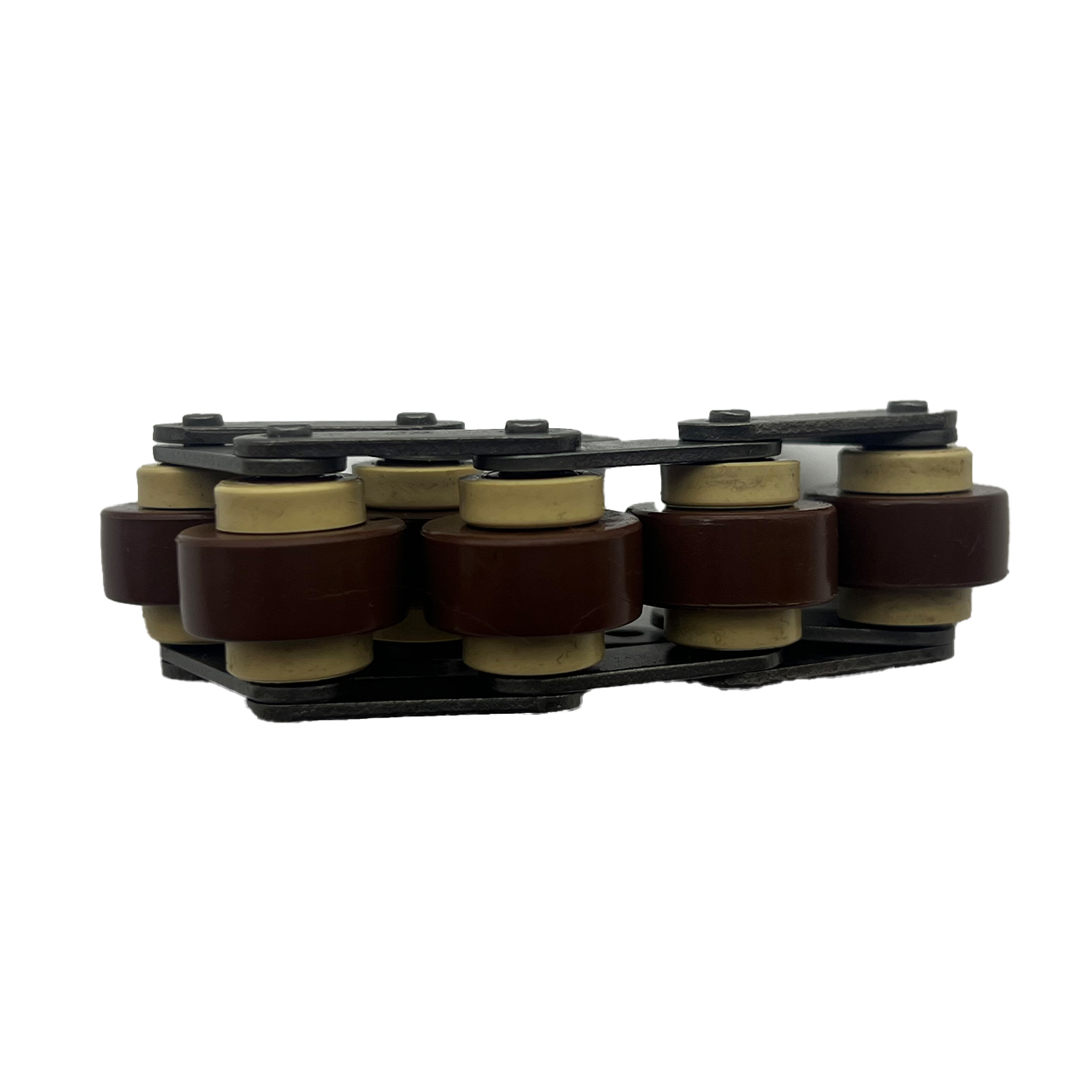

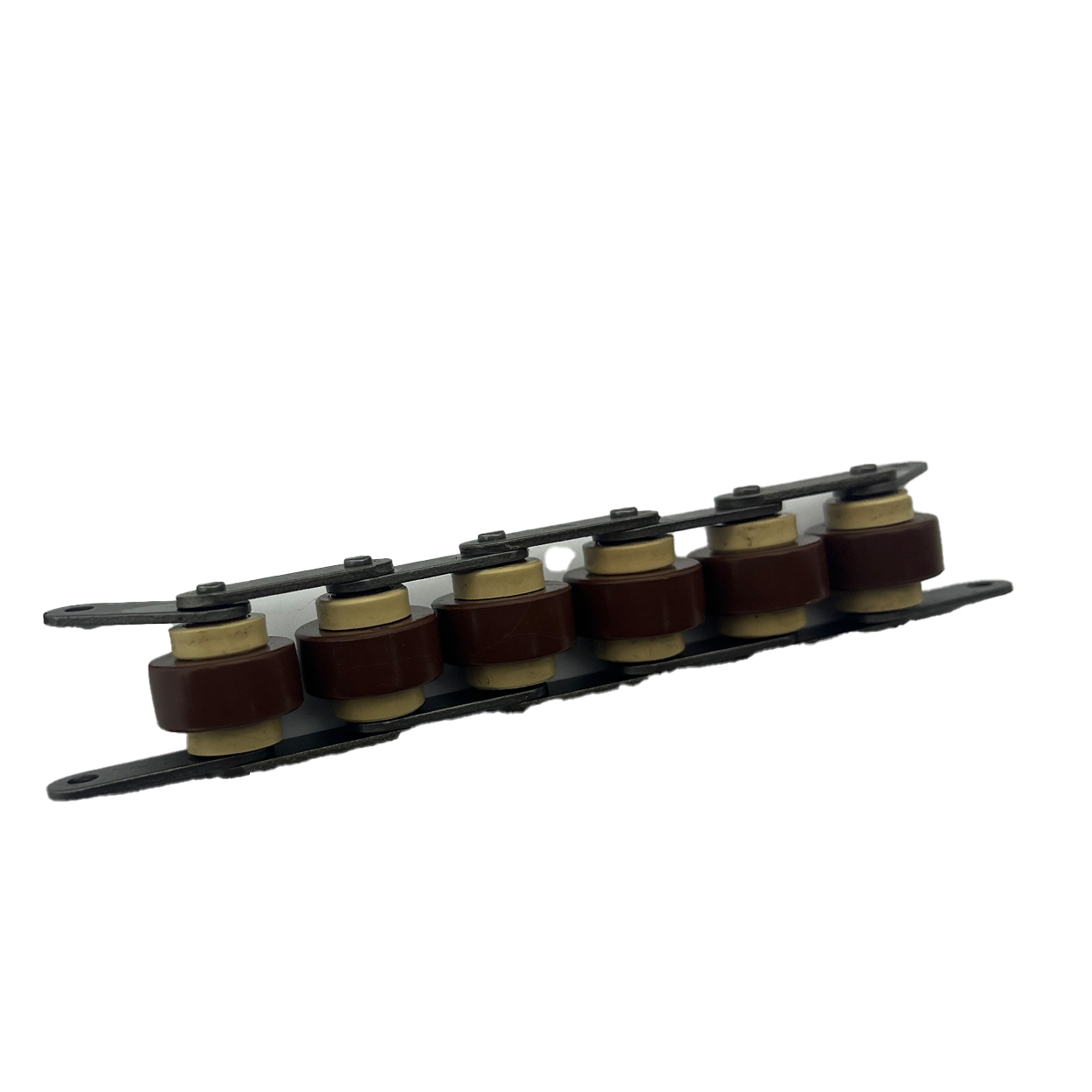

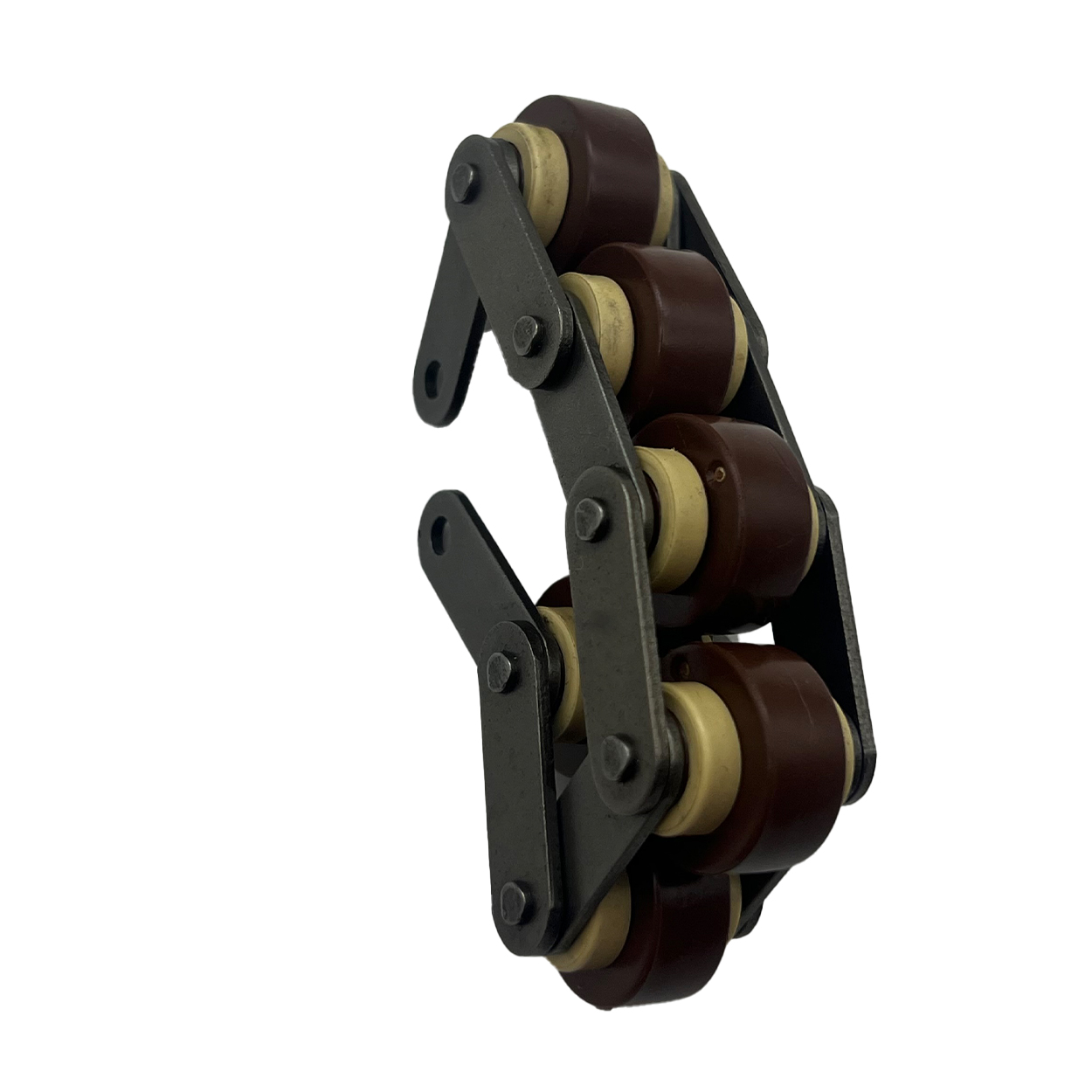

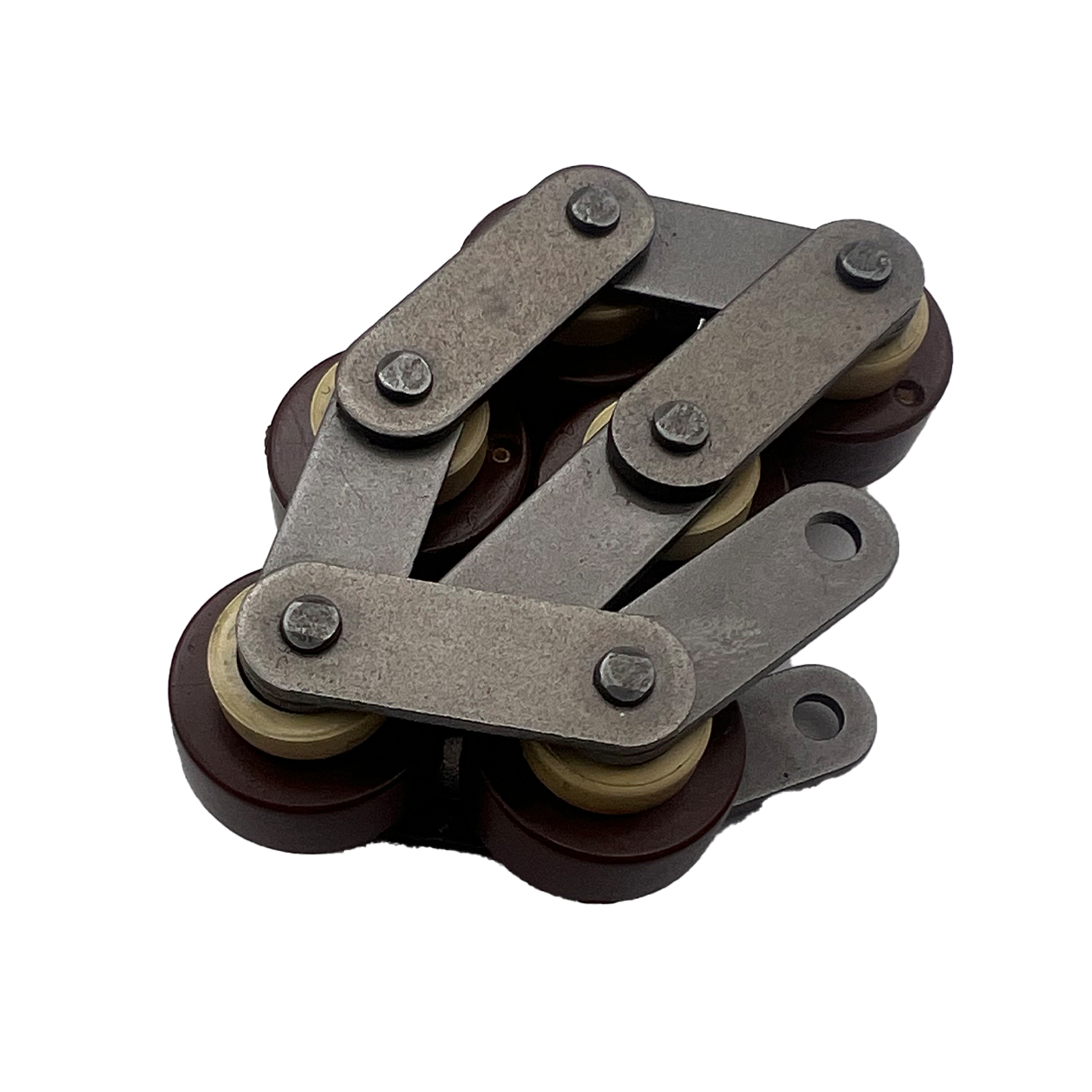

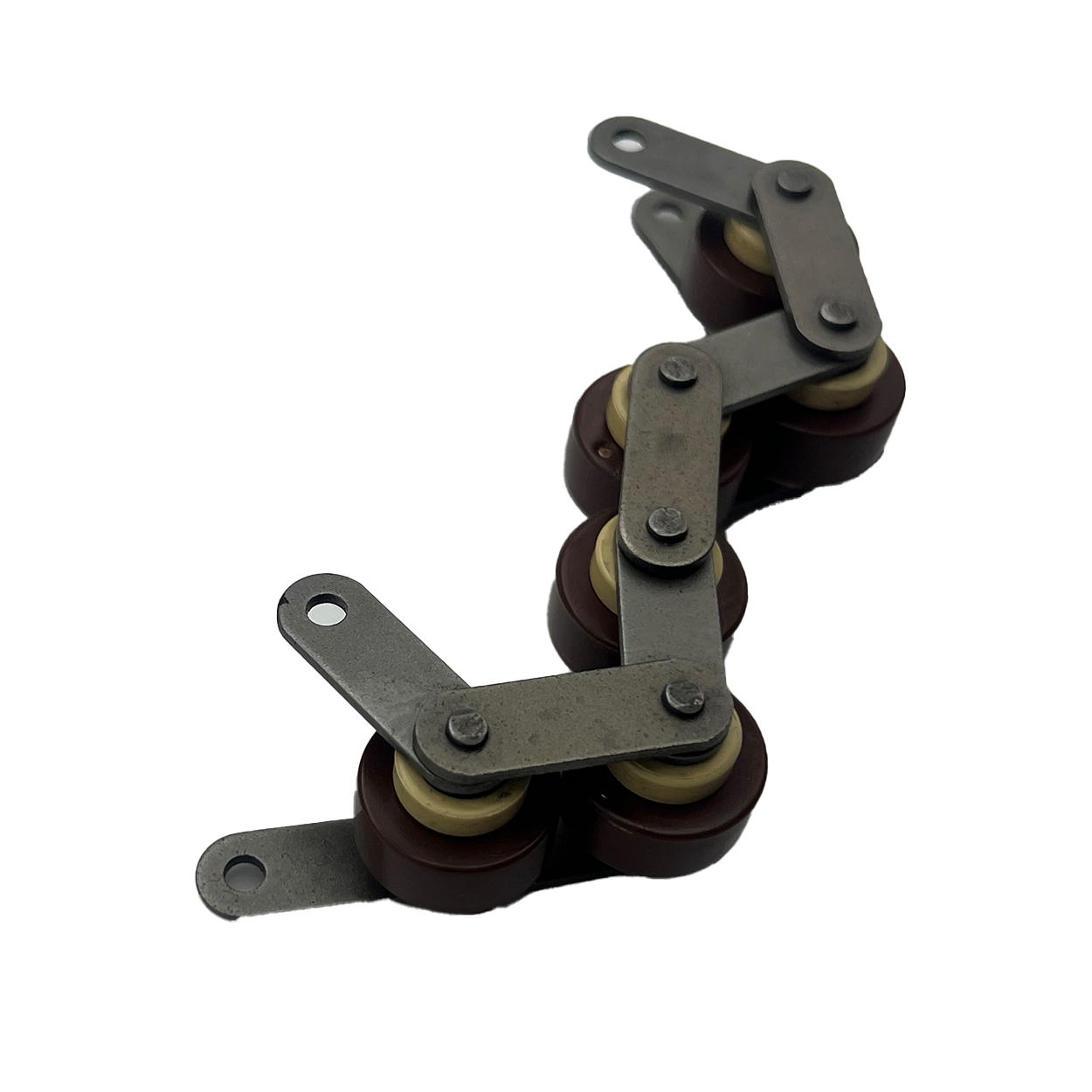

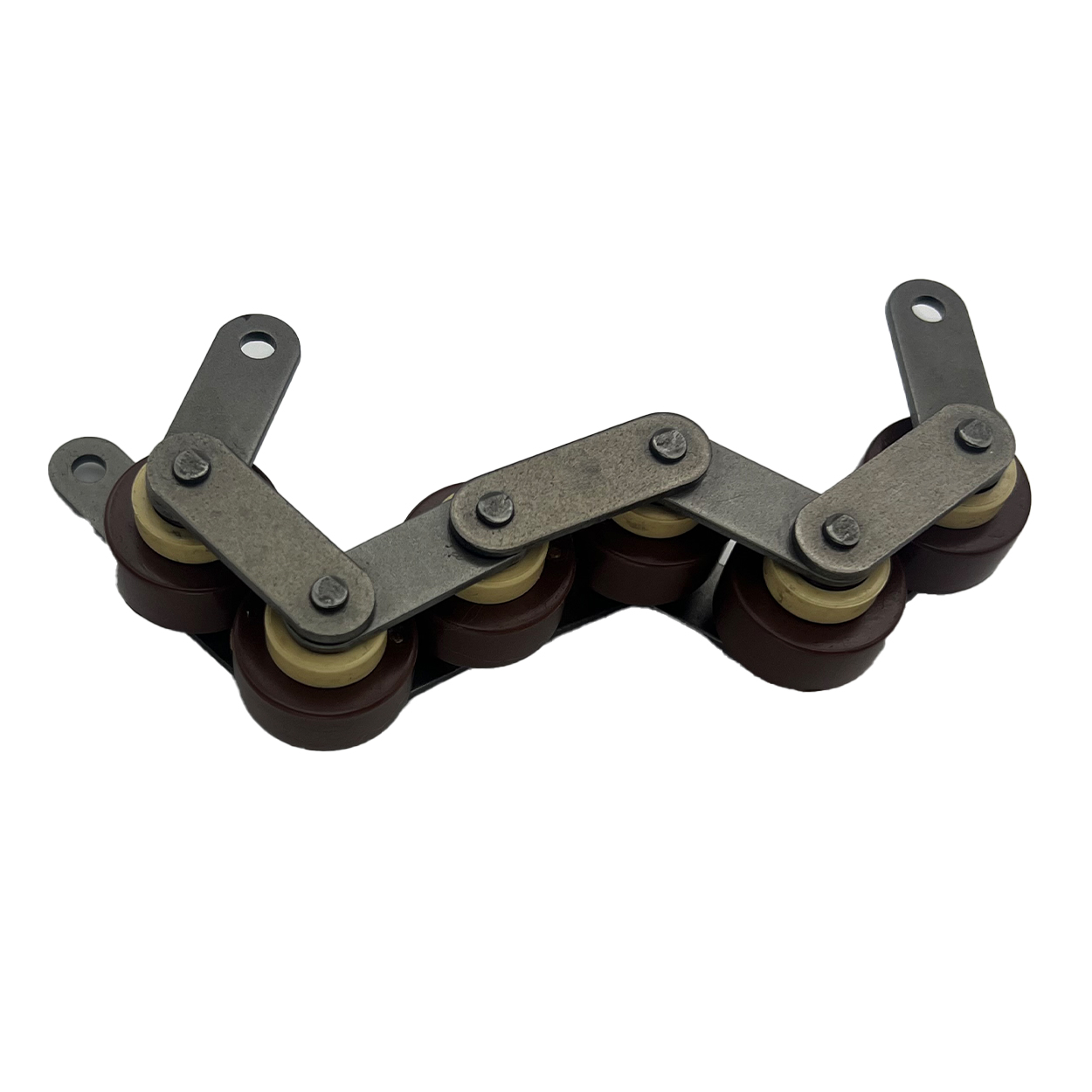

C2040V Accumulation Chains

Accumulation Chains, C2040V, Chain

C2040V Accumulation Chains Introduction

The accumulation chains of seven main components: inner link plates, sleeves, rollers, guide wheels, outer link plates, pins, and locking elements.
Under standard working conditions, the rollers and guide wheels are typically made from injection-molded engineering plastics. Steel components are used for these parts only in heavy-load applications. All other components are made of steel.
The basic structure of the accumulation chain is derived from the double-pitch roller chain, in which the pin and the outer plate are interference-fitted to form a stable chain link framework.
A key feature of the accumulation chain is that the speed of the workpiece pallet being transported differs from the speed of the chain itself. This unique characteristic gives rise to alternative names such as differential chain or overrunning chain. This difference in relative speed is achieved through the chain’s specialized structural design.

C2040V Accumulation Chains Product data information

Model		unit	C2040V
Pitch-（P)	P	mm	25.4
Roller size	d1 max	mm	15.88
	d8 max	mm	24.6
	b1 max	mm	5.7
	b8 max	mm	10.3
Pin size	d2 max	mm	3.96
	L max	mm	31
	Lc max	mm	32.8
Chain plate size	H max	mm	11.7
	T max	mm	1.5
	t max	mm	2

Accumulation Chains for Smooth, Continuous Transport

Accumulation chains are engineered for problem-free communicating in lines that begin and stop intermittently, enabling the chain to keep a continuous speed. This is made possible by their ingenious central, outside, or leading rollers, which rotate freely beneath fixed products. This smart style decouples the movement of the product from the chain, avoiding rubbing, effects, and wear when items need to be buffered or queued. The result is a smooth, constant circulation that removes the typical obstacles of stop-and-go production.

High Load Capacity Accumulation Chains

Our chains are built for exceptional load-bearing capacity and adaptability. The rollers, readily available in long lasting stainless steel and progressed synthetic products, are organized in a staggered pattern to make sure optimum lots circulation. This permits the chains to successfully lug substantially much heavier weights while offering quieter and extra stable transportation. Their application is vast, varying from warehouse transport and material handling robotic systems to link points in processing and production line, making them suitable for conveying containers, pallets, dog crates, and machined components.

Shock-Absorbing Accumulation Chains for Product Protection

Protect your important goods with the chain’s intrinsic shock-absorbing features. The core principle of the build-up chain is to decrease vibrations and stop unexpected effects in between items by maintaining an even distribution and safe range. This system guarantees that lots are transported in a stable, essentially shake-free way, specifically during stops and beginnings. By avoiding damage and irregular displacement, our chains ensure your items come to their location securely and in excellent condition, which is critical for delicate or sensitive items.

Automated Systems Powered by Accumulation Chains

In automated atmospheres, accumulation chains are a vital component for improving manufacturing versatility and effectiveness. They expertly manage item accumulation throughout line disruptions, stabilizing product circulation in between processes running at various speeds. This prevents hold-ups in one location from influencing the entire line. Conveniently integrated with automated control systems, these chains also contribute to energy financial savings by allowing movement to cease where required. They optimize room, maintain product top quality, and are a vital enabler of contemporary, efficient, and risk-free manufacturing systems.
