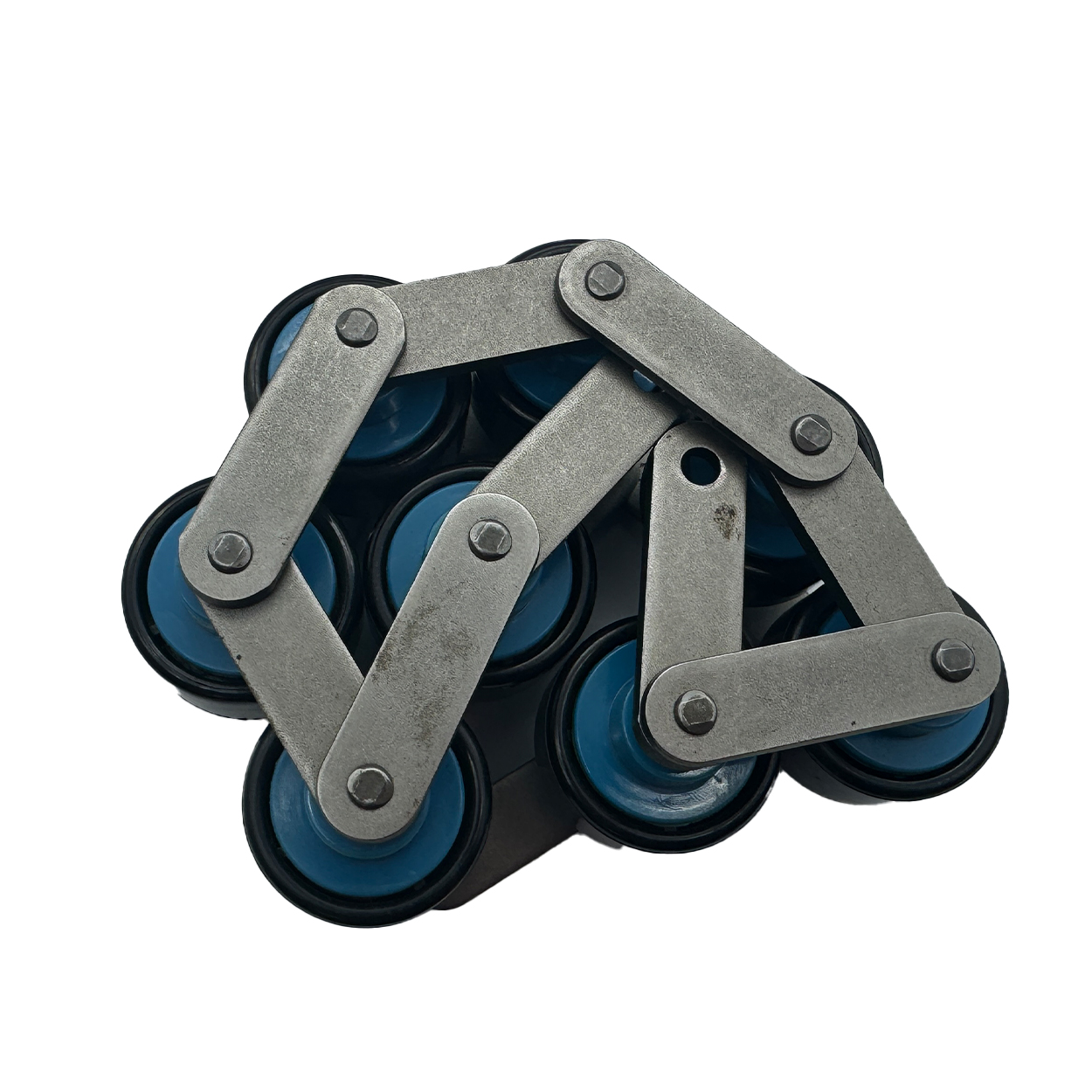

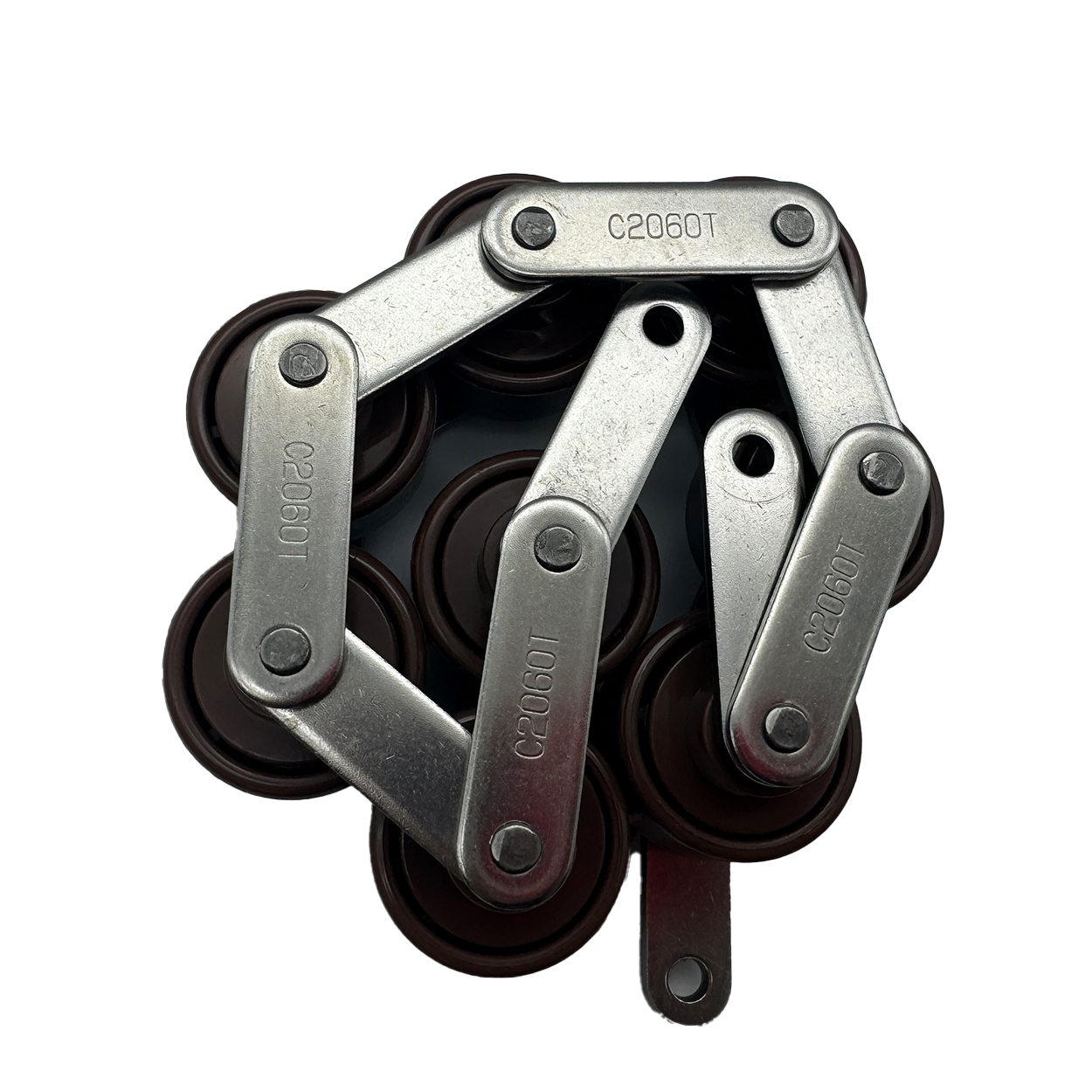

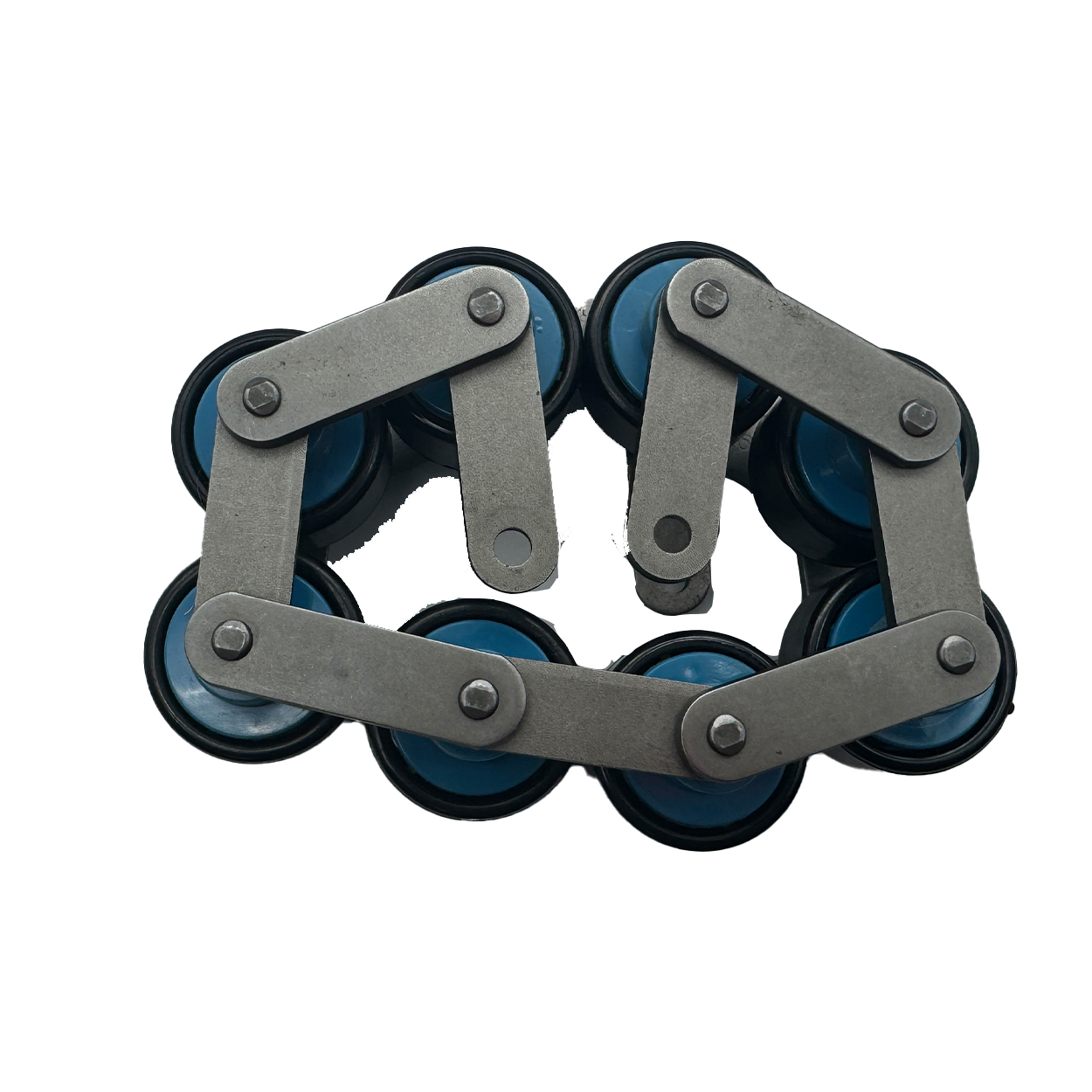

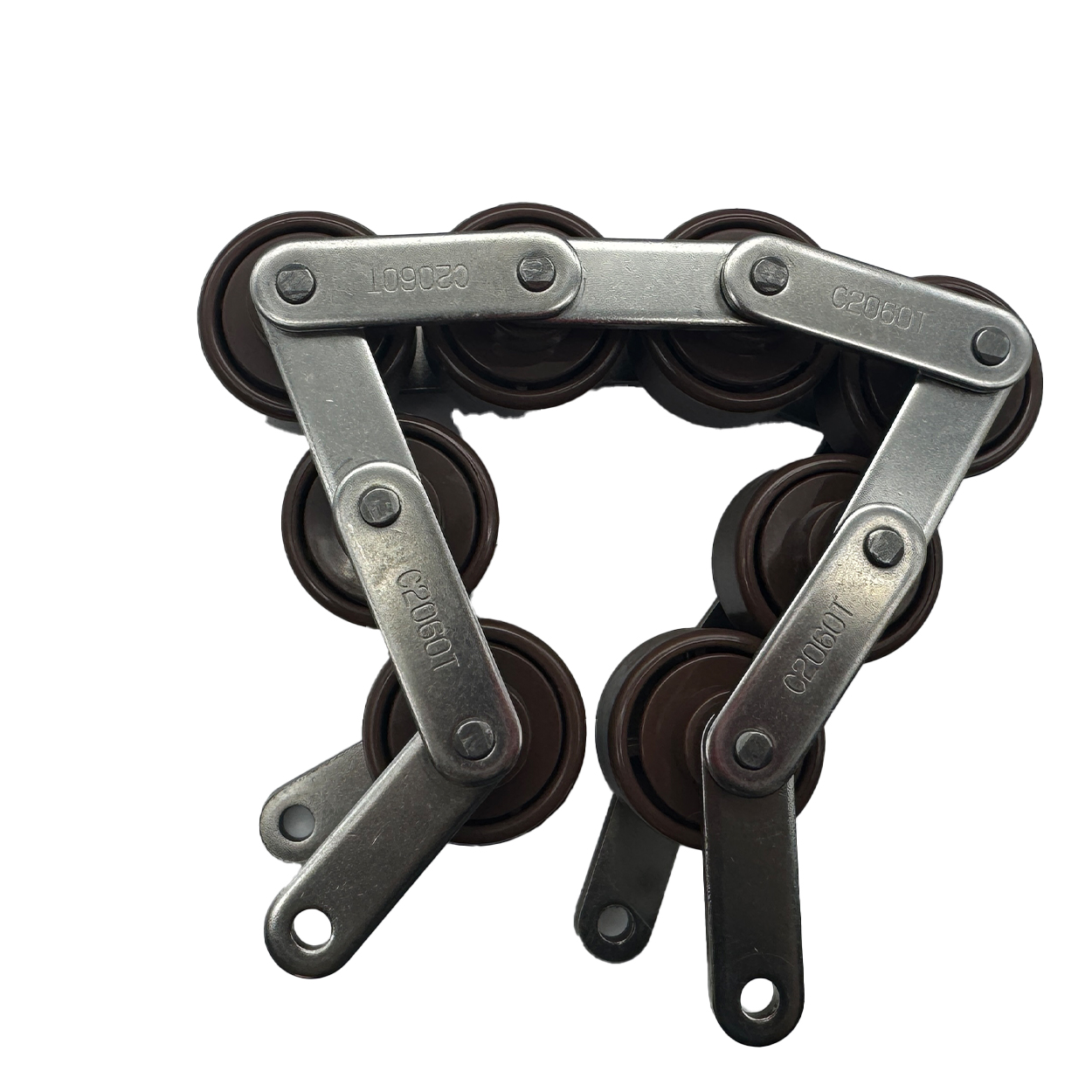

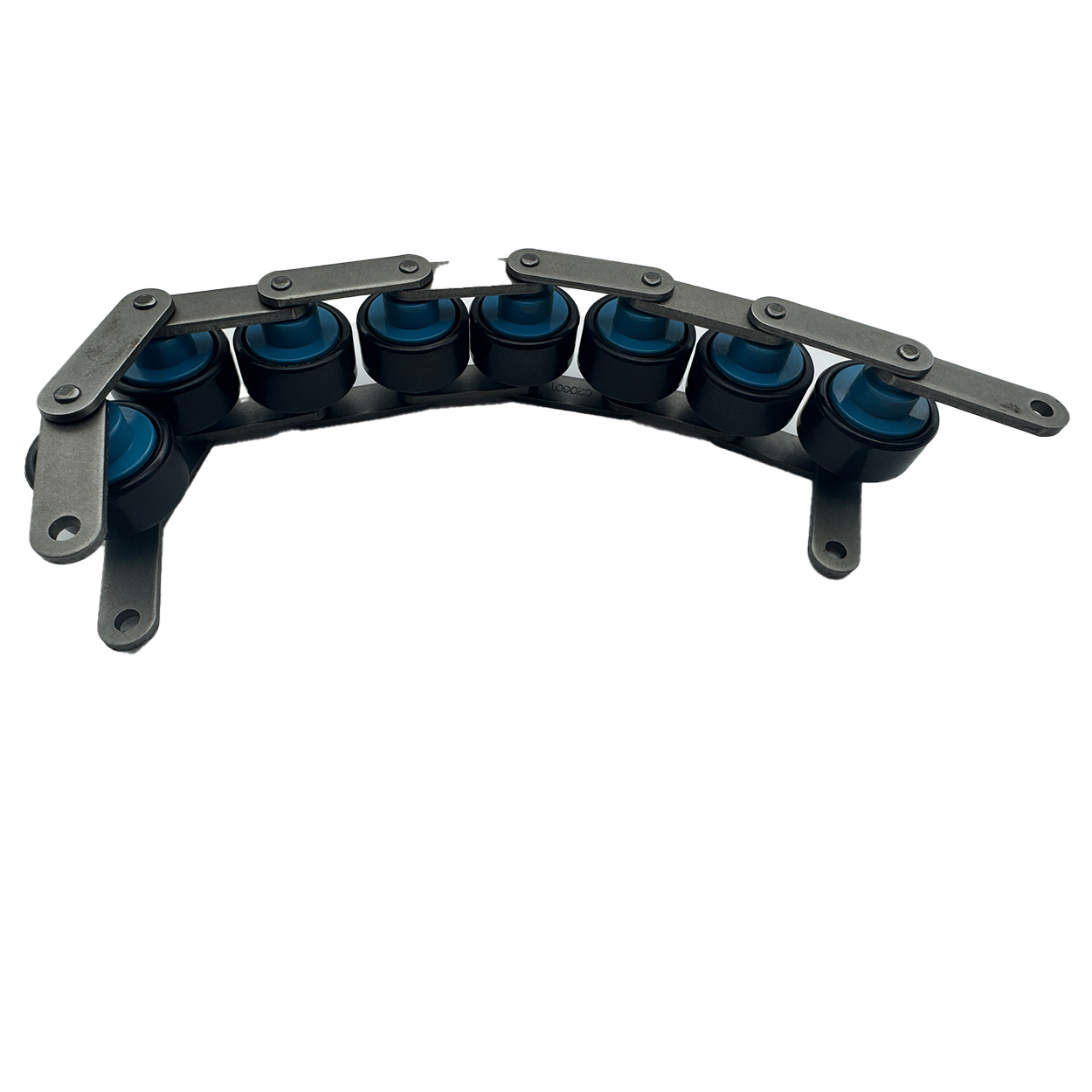

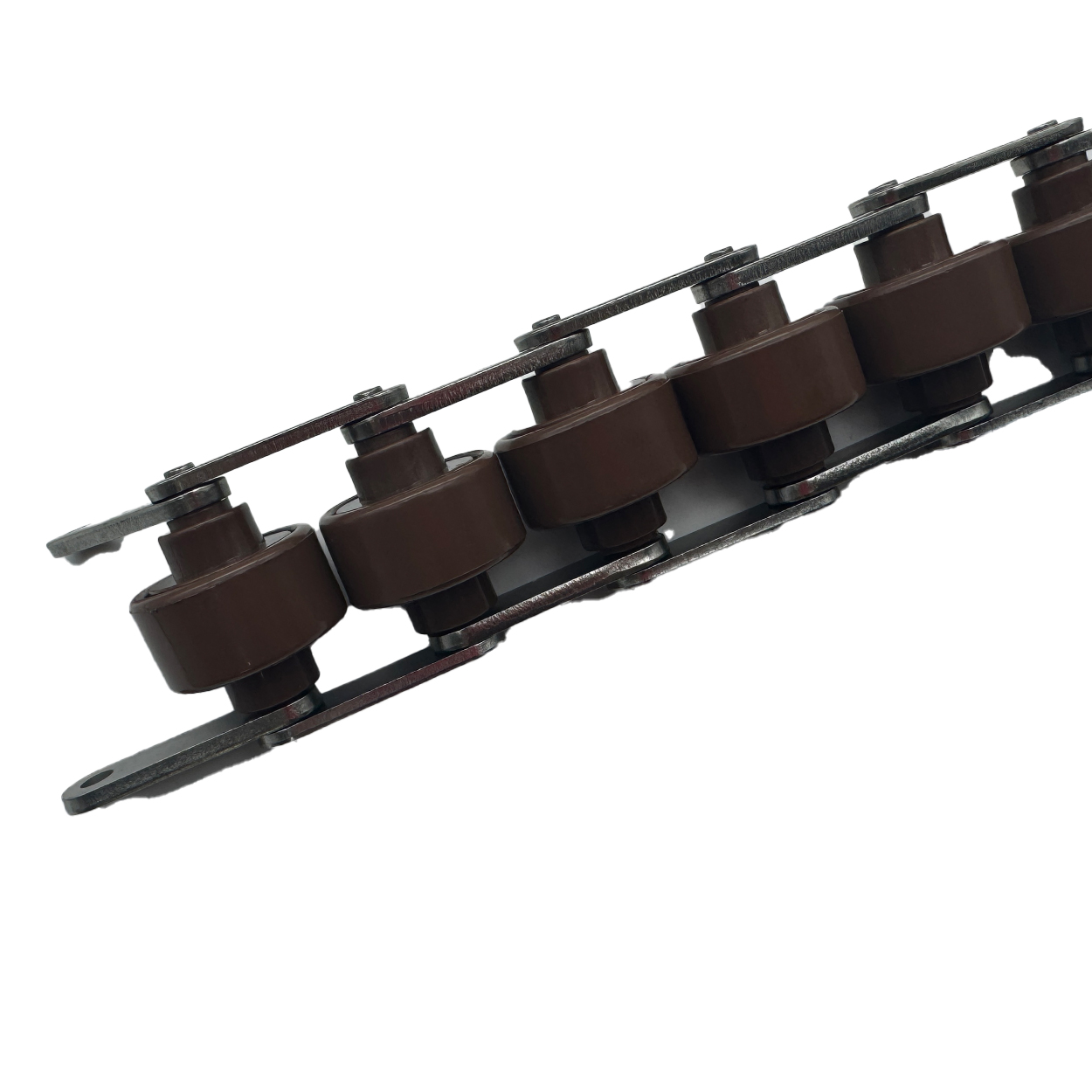

C2060T Accumulation Chains

Accumulation Chains, C2060T, Chain

C2060T Accumulation Chains Introduction

The accumulation chains of seven main components: inner link plates, sleeves, rollers, guide wheels, outer link plates, pins, and locking elements.
Under standard working conditions, the rollers and guide wheels are typically made from injection-molded engineering plastics. Steel components are used for these parts only in heavy-load applications. All other components are made of steel.
The basic structure of the accumulation chain is derived from the double-pitch roller chain, in which the pin and the outer plate are interference-fitted to form a stable chain link framework.
A key feature of the accumulation chain is that the speed of the workpiece pallet being transported differs from the speed of the chain itself. This unique characteristic gives rise to alternative names such as differential chain or overrunning chain. This difference in relative speed is achieved through the chain’s specialized structural design.

C2060T Accumulation Chains Product Data Information

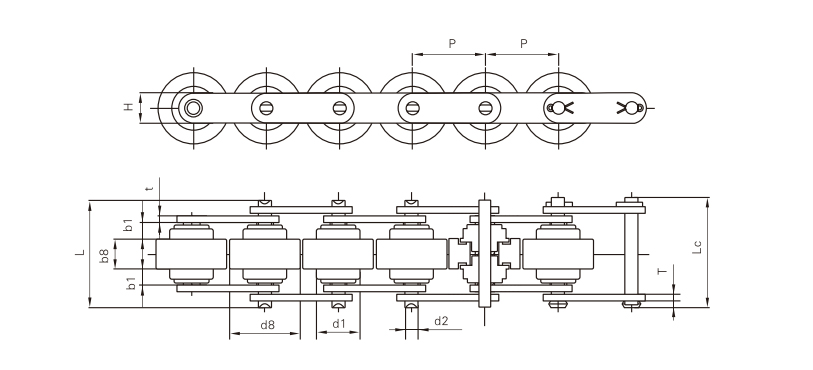

Model		unit	C2060T
Pitch-（P)	P	mm	38.1
Roller size	d1 max	mm	18
	d8 max	mm	38
	b1 max	mm	9.57
	b8 max	mm	20
Pin size	d2 max	mm	5.94
	L max	mm	58.1
	Lc max	mm	62.7
Chain plate size	H max	mm	15
	T max	mm	3.2
	t max	mm	4

Flexible Accumulation Chains for Asynchronous Production Lines

Accomplishing real production dexterity needs a sharing system that can adjust to variable process and asynchronous procedures. Our Accumulation Chains are especially designed to give this flexibility. They empower you to convey things separately of the primary process cycle, allowing for items to be accumulated, divided, and buffered at any factor. This capacity is important for balancing lines operating at different rates and handling unpredictable interruptions without endangering overall operational circulation.

Smart Queue Management with Accumulation Chains

The primary feature of Accumulation Chains is to wisely take care of product queues. When a downstream process stops, items can align safely on the openly relocating rollers without creating a system-wide shutdown. This organized buffering protects against expensive bottlenecks and guarantees a steady supply of products to the next stage. This makes our Accumulation Chains an indispensable element for linking handling and production line, taking care of storage space systems, and making certain a smooth change in between automated tasks.

Versatile Applications of Accumulation Chains in Modern Logistics

The convenience of our Accumulation Chains makes them suitable for a remarkably large range of applications and items. From carrying hefty pallets and pet crates in logistics hubs to relocating delicate elements for robot assembly, these chains supply regular, dependable performance. The style of the Accumulation Chains enhances lots circulation, contributing to a quieter and a lot more steady transport environment that safeguards both the items and the tools.

Optimize Space and Efficiency with Advanced Accumulation Chains

Adopting our Accumulation Chains is a strategic financial investment in the effectiveness and security of your whole operation. Beyond making sure item high quality, they assist optimize space usage by allowing for compact buffering and contribute to power savings. As a vital enabler of contemporary automation, our Accumulation Chains integrate flawlessly with control systems, giving the dependable foundation required to develop much more efficient, resilient, and effective production and circulation systems.
