How To Measure Roller Chain Size: A Guide To Proper Identification And Sizing

summary

Roller chains are a vital component in many power transmission systems, ensuring the smooth operation of machinery in industries like manufacturing, agriculture, and automotive.

However, selecting the correct roller chain size is essential to guarantee efficiency, reliability, and longevity. In this guide, we’ll walk you through the process of measuring roller chains, identifying chain sizes, and understanding key concepts such as chain pitch, ANSI standards, and sprockets. Whether you’re a beginner or an expert, this detailed article will help you identify your roller chain and ensure the best match for your equipment.

Why This Article Is Worth Reading

You might be wondering, Why do I need to measure my roller chain? It’s simple—knowing the exact size of your chain prevents costly mistakes, reduces machine wear, and ensures that your chain and sprockets work together seamlessly. This guide simplifies the entire process of measuring and identifying roller chains, including easy-to-follow instructions, tips for avoiding common mistakes, and tools like roller chain size charts to help you along the way. Whether you’re maintaining a conveyor belt or a motorcycle, this article will provide the insights you need.

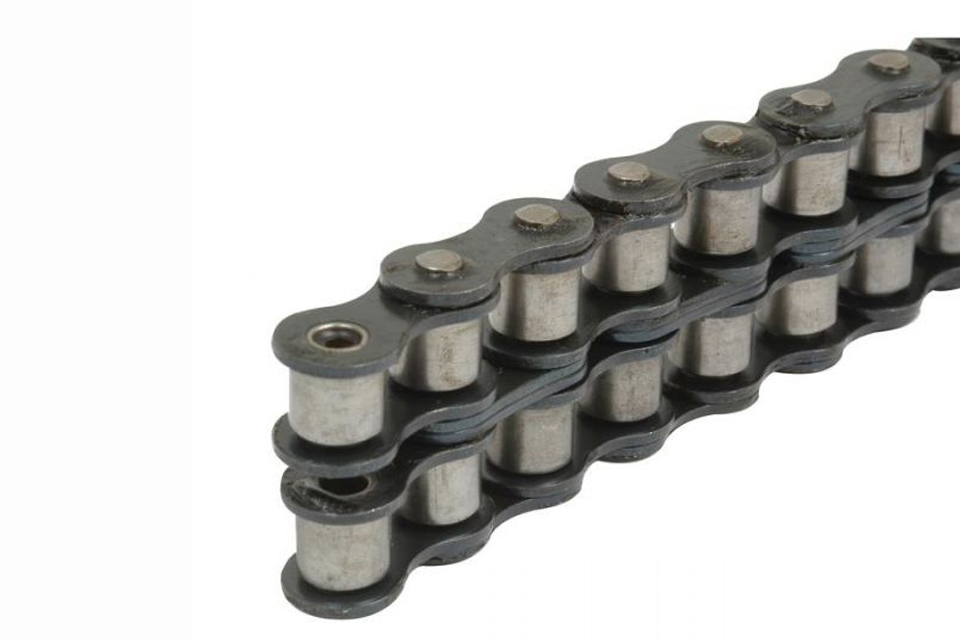

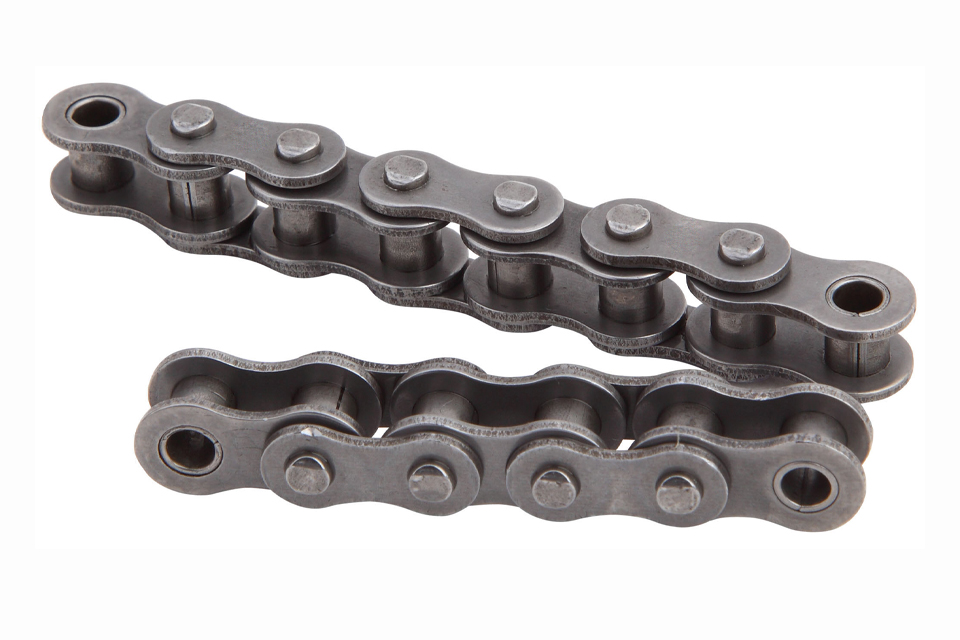

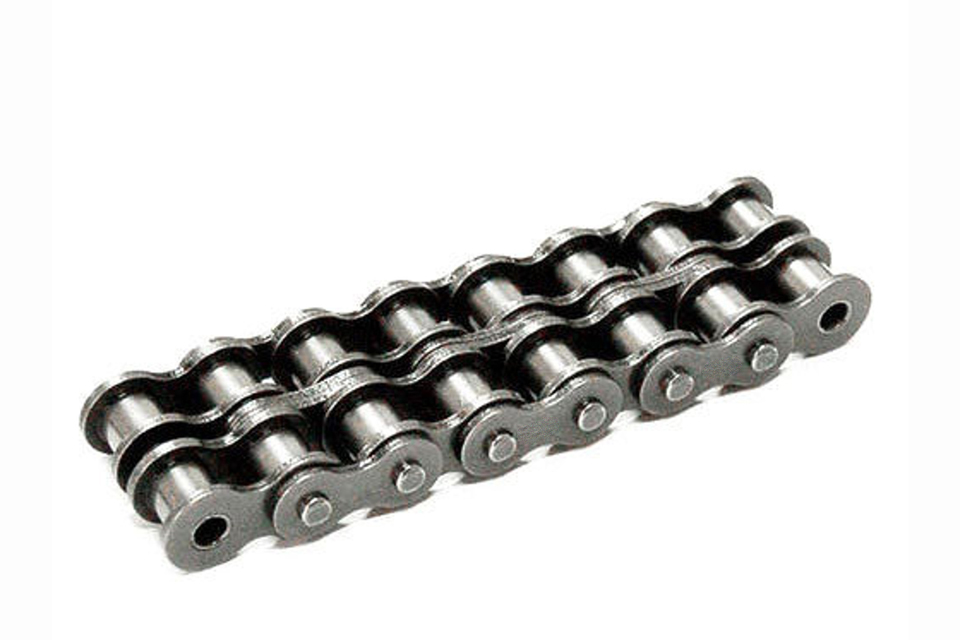

What Is a Roller Chain?

A roller chain is a mechanical chain commonly used to transmit power in industrial and mechanical applications. It’s composed of several interconnected links, each consisting of rollers, pins, and plates. These components work together to reduce friction and wear as the chain moves over sprockets.

Roller chains are used in everything from bicycles to conveyor belts, and they come in a variety of sizes and standards. Whether you’re working with industrial equipment or recreational vehicles, understanding your roller chain is the first step to proper maintenance and performance.

Why Is Measuring a Roller Chain Important?

Measuring a roller chain accurately is crucial for several reasons:

Ensures Compatibility: The wrong chain size can lead to inefficiency and even damage to your machinery.
Improves Performance: A properly sized chain ensures smooth operation and reduces wear on sprockets and other components.
Saves Time and Money: Identifying the right chain size prevents costly repairs and unnecessary replacements.

By measuring your chain correctly, you’ll avoid frustration and get the most out of your equipment.

Key Components of a Roller Chain

To measure a roller chain, you need to understand its key components:

Rollers: These cylindrical parts reduce friction and allow the chain to move smoothly over sprockets.
Pins: Connect the links together, allowing the chain to flex.
Inner and Outer Plates: Provide structural support to the chain.
Chain Pitch: The distance between the centers of two consecutive pins.

Each of these components plays a role in determining the chain size and ensuring compatibility with sprockets.

What Is Chain Pitch and How Do You Measure It?

Chain pitch is one of the most important dimensions when measuring a roller chain. It refers to the distance between the centers of two consecutive pins. This measurement determines the chain’s compatibility with sprockets and other components.

How to Measure Chain Pitch

Lay the Chain Flat: Place the chain on a flat surface to ensure accurate measurements.
Measure Between Pins: Use a ruler or caliper to measure the distance between the centers of two adjacent pins.
Record the Measurement: Note the pitch in inches or millimeters. For example, a chain pitch of 1/2 inch is common in ANSI #40 chains.

The chain pitch is the foundation for identifying your roller chain size.

How to Measure Roller Chain Size

To identify your roller chain size, you’ll need to measure three key dimensions:

Pitch: As explained above, measure the distance between two consecutive pins.
Roller Diameter: Measure the diameter of the rollers.
Width Between Inner Plates: Measure the distance between the inner plates of the chain.

Step-by-Step Instructions

Use a caliper or a precise ruler for accurate measurements.
Compare your measurements to a roller chain size chart (see below).
Check for wear or elongation, as these can affect your measurements.

By following these steps, you’ll be able to identify your roller chain with confidence.

How to Use a Roller Chain Size Chart

A roller chain size chart is a helpful tool for matching your measurements to the correct chain size. These charts typically include the pitch, roller diameter, and width between inner plates for common chain sizes.

Chain Size	Pitch (inches)	Roller Diameter (inches)	Width Between Plates (inches)
ANSI #25	1/4	0.130	0.125
ANSI #40	1/2	0.312	0.312
ANSI #80	1	0.625	0.625

Simply compare your measurements to the chart to find the correct size.

Understanding ANSI Standards for Roller Chains

The ANSI (American National Standards Institute) provides standardized dimensions for roller chains. These standards ensure that chains from different manufacturers are compatible with the same sprockets and components.For example:

ANSI #40 chain has a pitch of 1/2 inch.
ANSI #60 chain has a pitch of 3/4 inch.

Using ANSI standards makes it easier to identify and replace roller chains, especially in industrial applications.

What Role Do Sprockets Play in Measuring Chain Size?

Sprockets are the gears that roller chains run on, and they play a crucial role in determining chain compatibility. When measuring your roller chain, you should also inspect the sprockets:

Tooth Count: Count the number of teeth on the sprocket.
Pitch Diameter: Measure the diameter of the sprocket where the chain engages.
Wear and Tear: Check for worn or damaged teeth, as these can affect performance.

Matching your chain size to the correct sprocket ensures smooth operation and reduces wear.

Common Mistakes When Measuring Roller Chains

Avoid these common mistakes when measuring roller chains:

Measuring Worn Chains: Chains can elongate over time, leading to inaccurate measurements.
Using the Wrong Tools: A precise ruler or caliper is essential for accurate measurements.
Ignoring Other Dimensions: Don’t forget to measure the roller diameter and width between plates.

By taking your time and using the right tools, you can avoid errors and identify the correct chain size.

Tips for Maintaining Your Roller Chain

Proper maintenance is key to extending the life of your roller chain. Here are some tips:

Lubricate Regularly: Use a high-quality chain lubricant to reduce friction and wear.
Clean the Chain: Remove dirt and debris to prevent premature wear.
Inspect for Wear: Check for elongation, damaged rollers, or worn sprockets.

Regular maintenance not only improves performance but also saves time and money in the long run.

Key Takeaways

Understand Chain Pitch: Measuring the pitch is the first step to identifying your roller chain.
Use a Size Chart: A size chart simplifies the process of matching your measurements to the correct chain size.
Check ANSI Standards: ANSI standards ensure compatibility between chains and sprockets.
Inspect Sprockets: Worn sprockets can affect chain performance and should be replaced if damaged.
Maintain Your Chain: Regular lubrication, cleaning, and inspections will extend the life of your chain.

By following these steps and tips, you’ll be able to measure and identify your roller chain with confidence. If you need further assistance, don’t hesitate to contact us or consult our detailed catalog for more information.
